Ubiquiti UA-SK-Gate Gate Starter Kit

Smart Vehicle Gate Access Control with License Plate Recognition

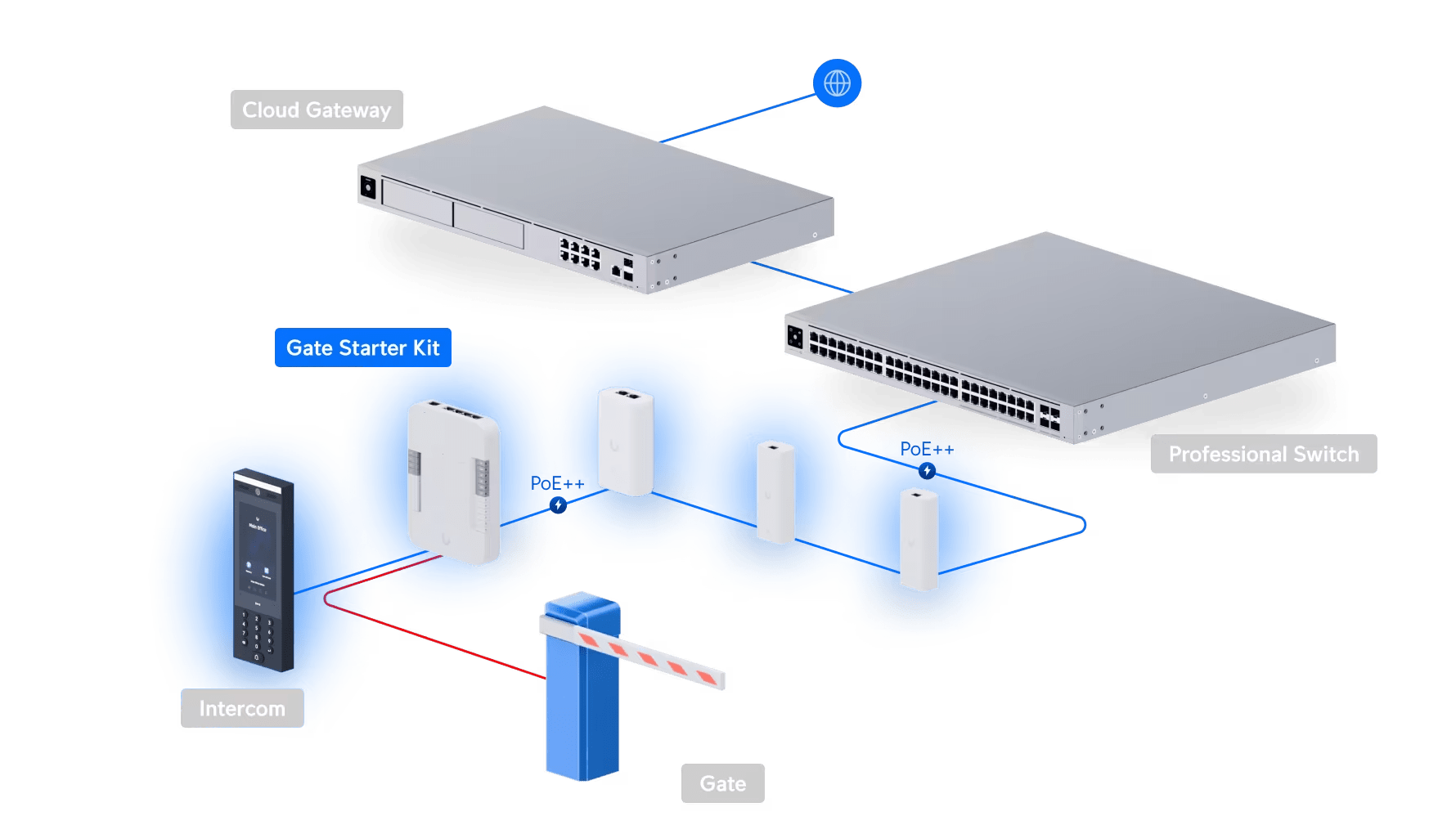

The Ubiquiti UA-SK-Gate Gate Starter Kit is a comprehensive gate access control solution designed to secure vehicle entry points using AI-powered license plate recognition, two-way intercom communication, and multi-mode unlock methods including NFC, PIN, and mobile. Paired with UniFi Protect AI cameras, this system enables automated gate authorization based on license plate detection, ideal for residential estates, business parks, and commercial garages.

Highlights

• Complete Starter Kit: Includes Gate Hub, Intercom, PoE++ Adapter, and 2-wire PoE extenders
• License Plate Recognition when used with Protect AI cameras (excluding 360° models)
• Supports 1 vehicle gate and 1 side door
• Multiple unlock options: LPR, NFC, PIN, Mobile App

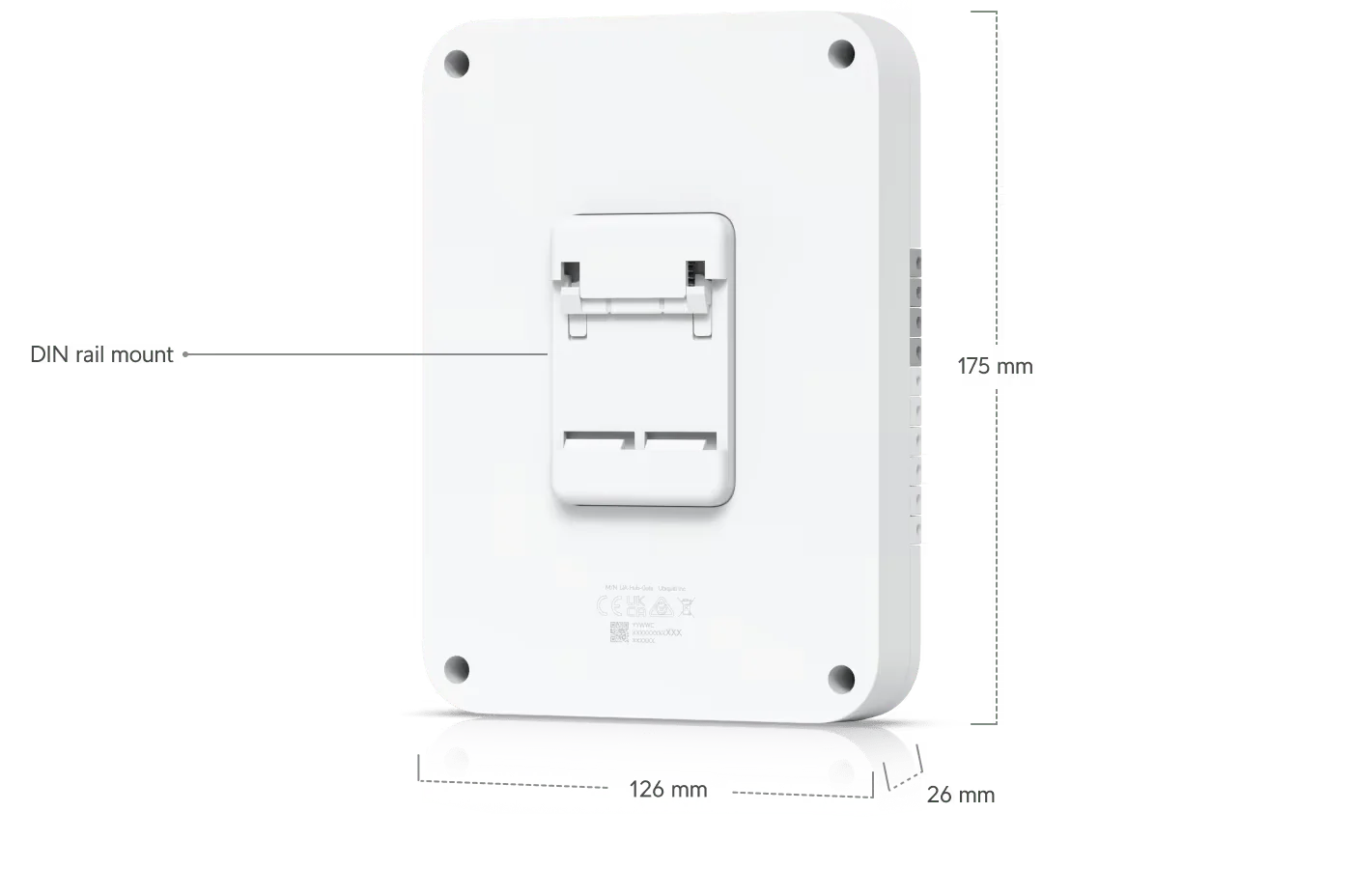

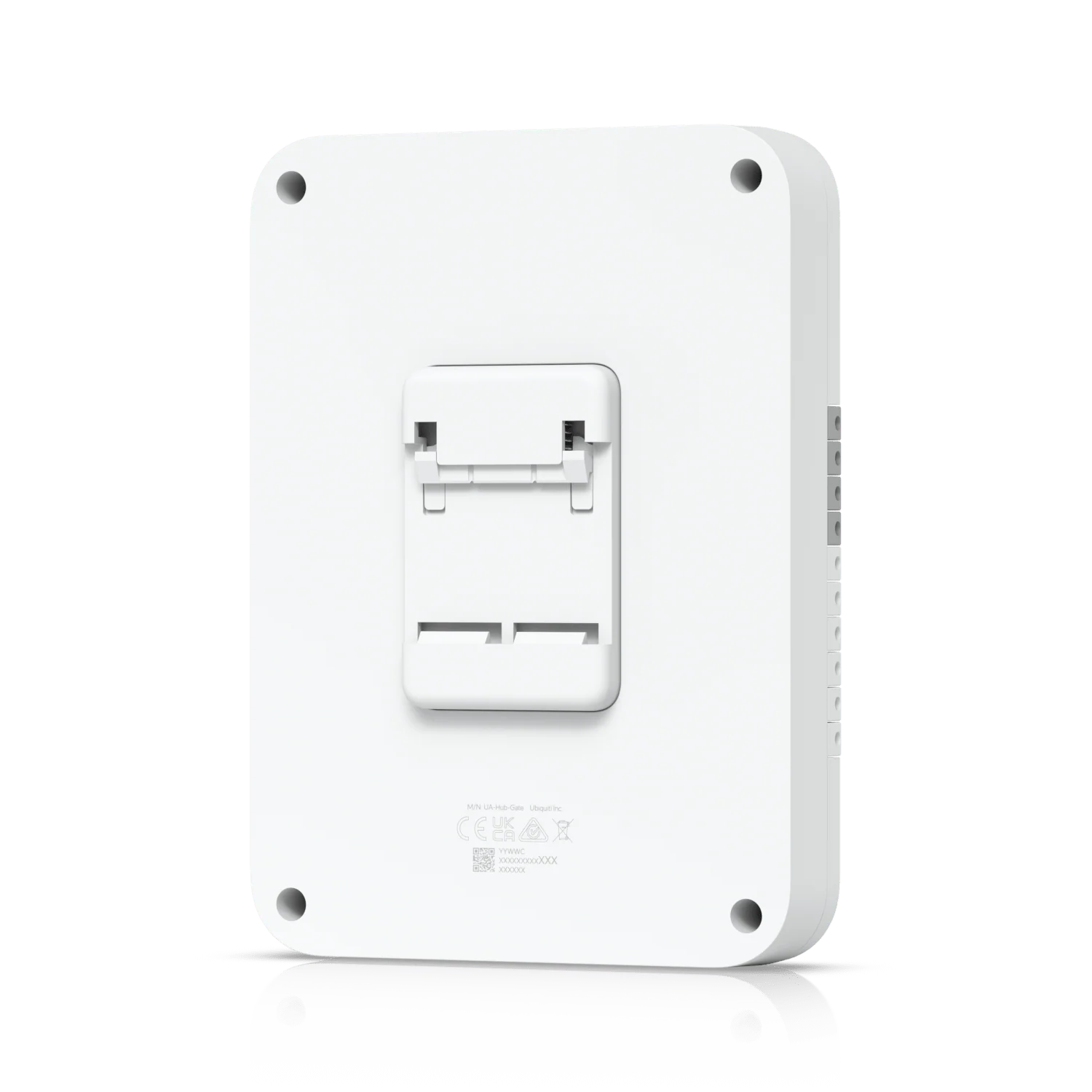

• PoE++ powered with DIN-rail mounting for flexible installation
• Intercom rated IP65 for all-weather outdoor use
• UL 294 Level I security certification

Key Features

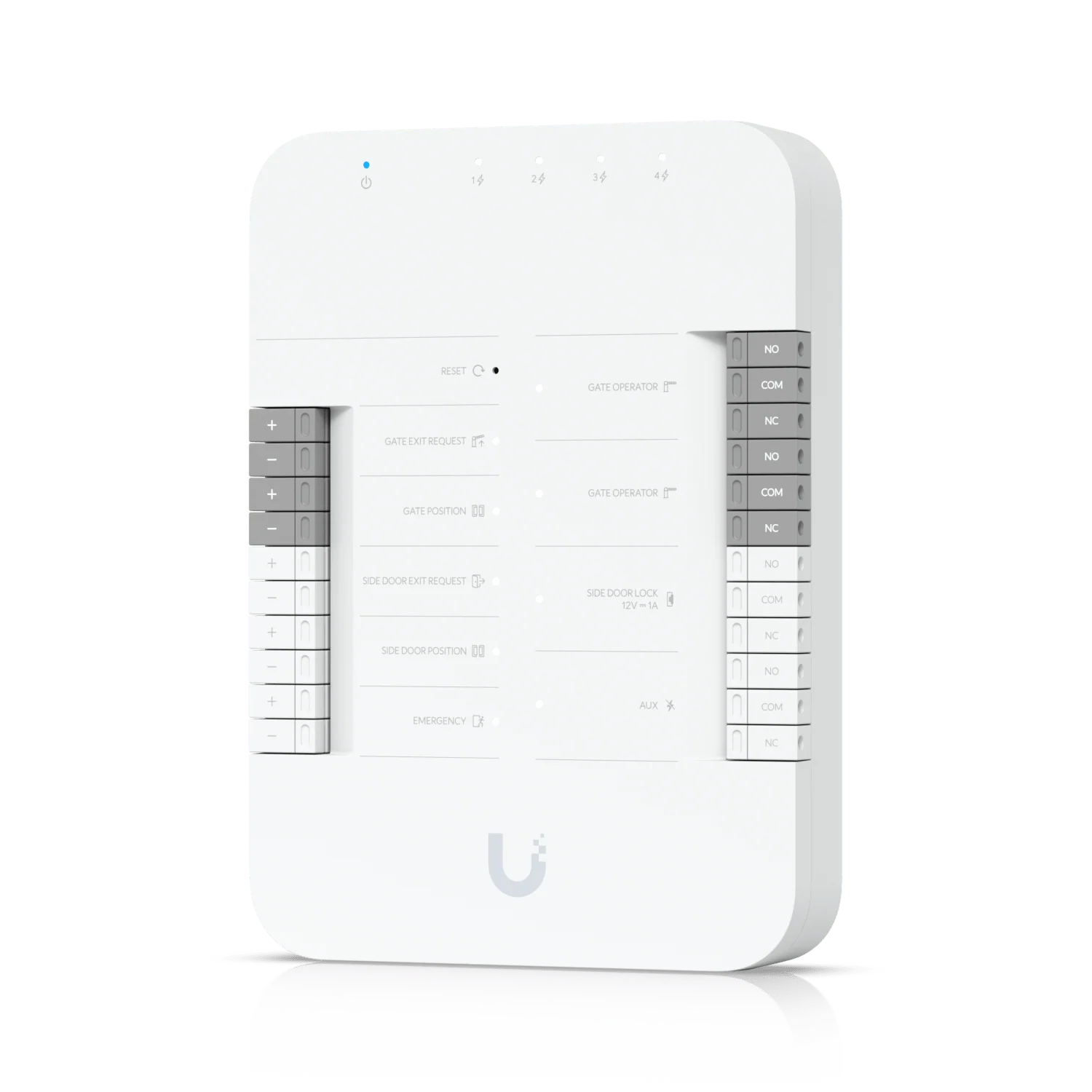

Intelligent Gate Control

• Automate gate access using license plate recognition with supported Protect AI cameras
• Supports:
  • Gate exit request & position sensors
  • Side door exit & position sensors
  • Emergency input
• Dry contact relays for gate/door operator and auxiliary devices
• Powered relay output for side door lock (12V DC, up to 1A)

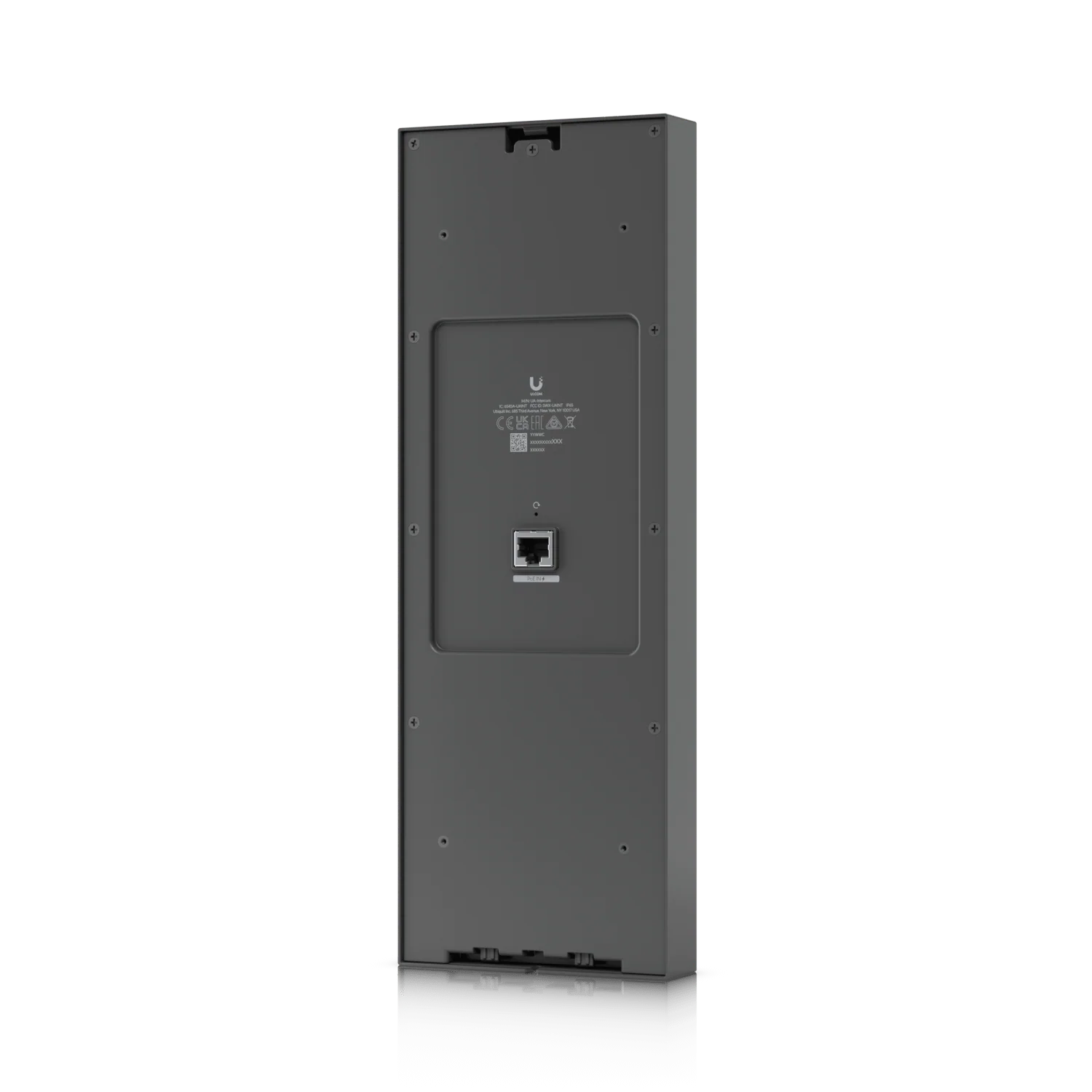

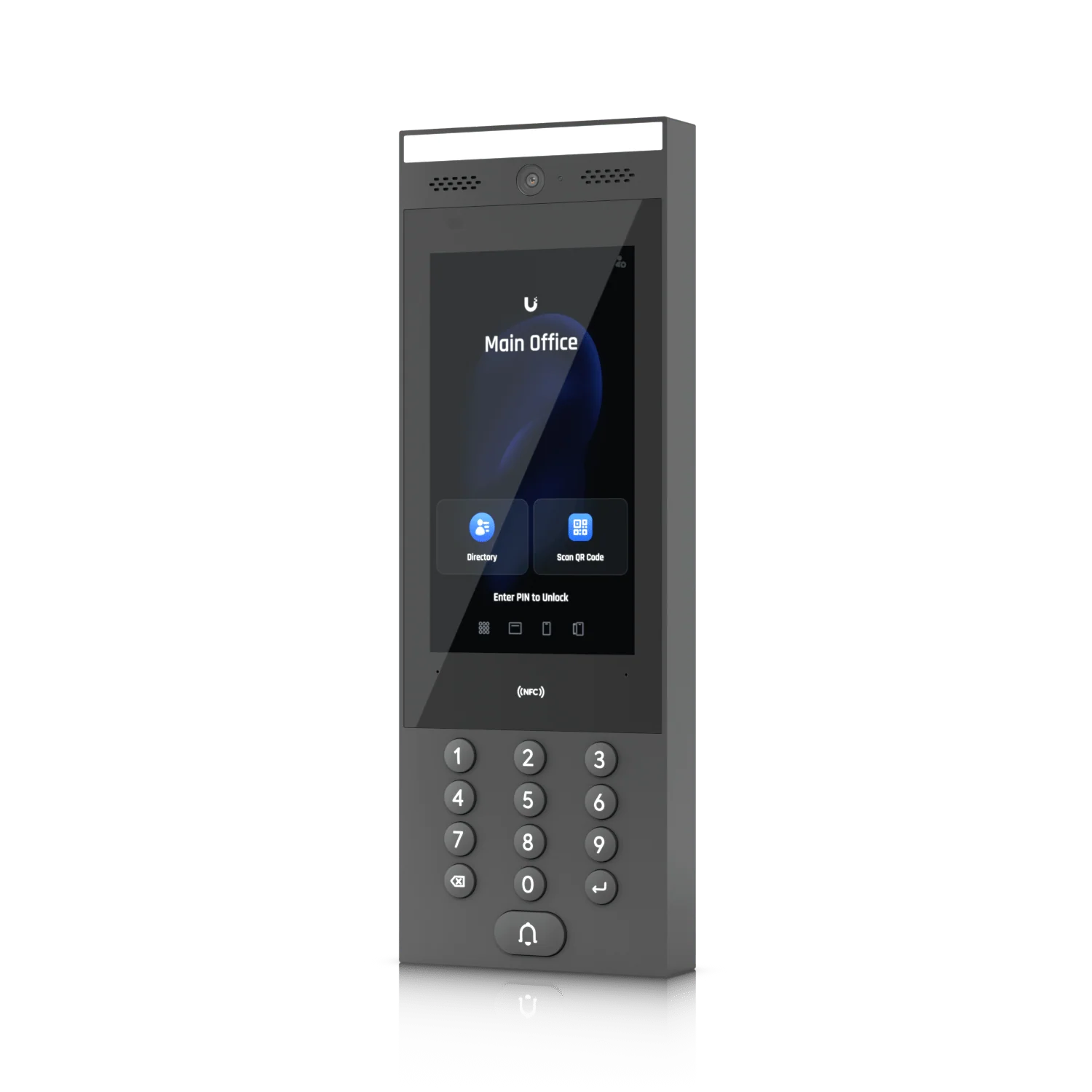

Intercom Access Terminal

• Integrated camera with video feed to UniFi Protect
• Supports:
  • NFC card & keyfob access
  • PIN entry
  • Mobile unlock via UniFi app
  • Two-way voice intercom with doorbell access
• Rugged construction:
  • IP65-rated for outdoor use
  • Made of aluminum alloy, polycarbonate, and stainless steel
  • Wall-mount or gooseneck-pedestal installation

Networking & Power

• (5) Gigabit Ethernet ports for full connectivity
• PoE++ input (50V DC, 1A) for simplified deployment
• (4) PoE output ports with max 28W combined power
• Max power draw:
  • 22W (without PoE output)
  • 50W (with PoE output)

Compatibility

• Supports LPR with the following Protect AI cameras:
  • UVC-AI-Turret
  • UVC-AI-LPR
  • UVC-AI-Dome
  • UVC-AI-DSLR
  • UVC-AI-Bullet
  • UVC-AI-Pro
  • UVC-AI-Theta

Security & Compliance

• UL 294 Level I certified for:
  • Destructive attack
  • Line security
  • Endurance
  • Standby power
• Meets PoE cabling standards with minimum Cat 5e and proper AWG requirements
• Operates in temperatures from -30°C to 60°C

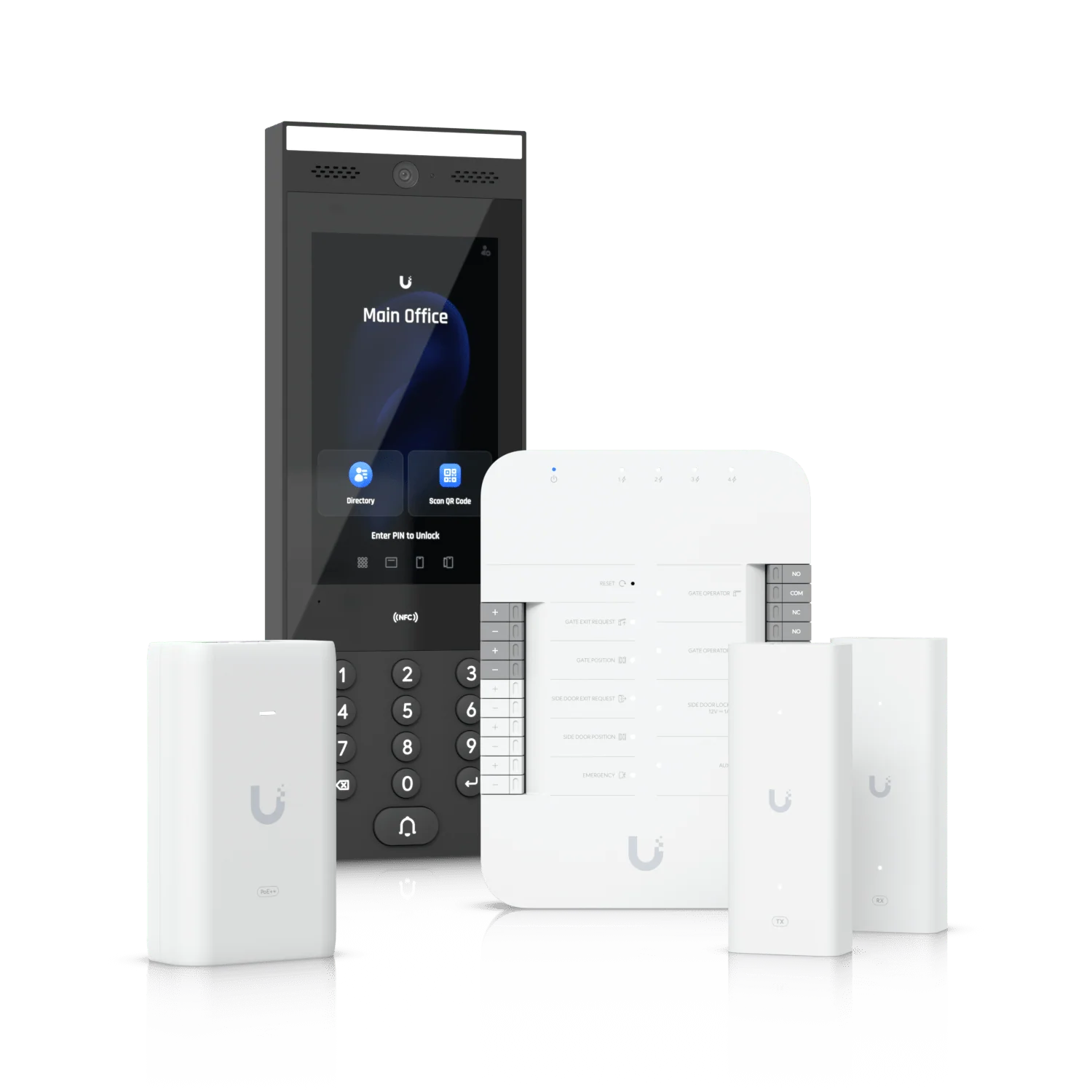

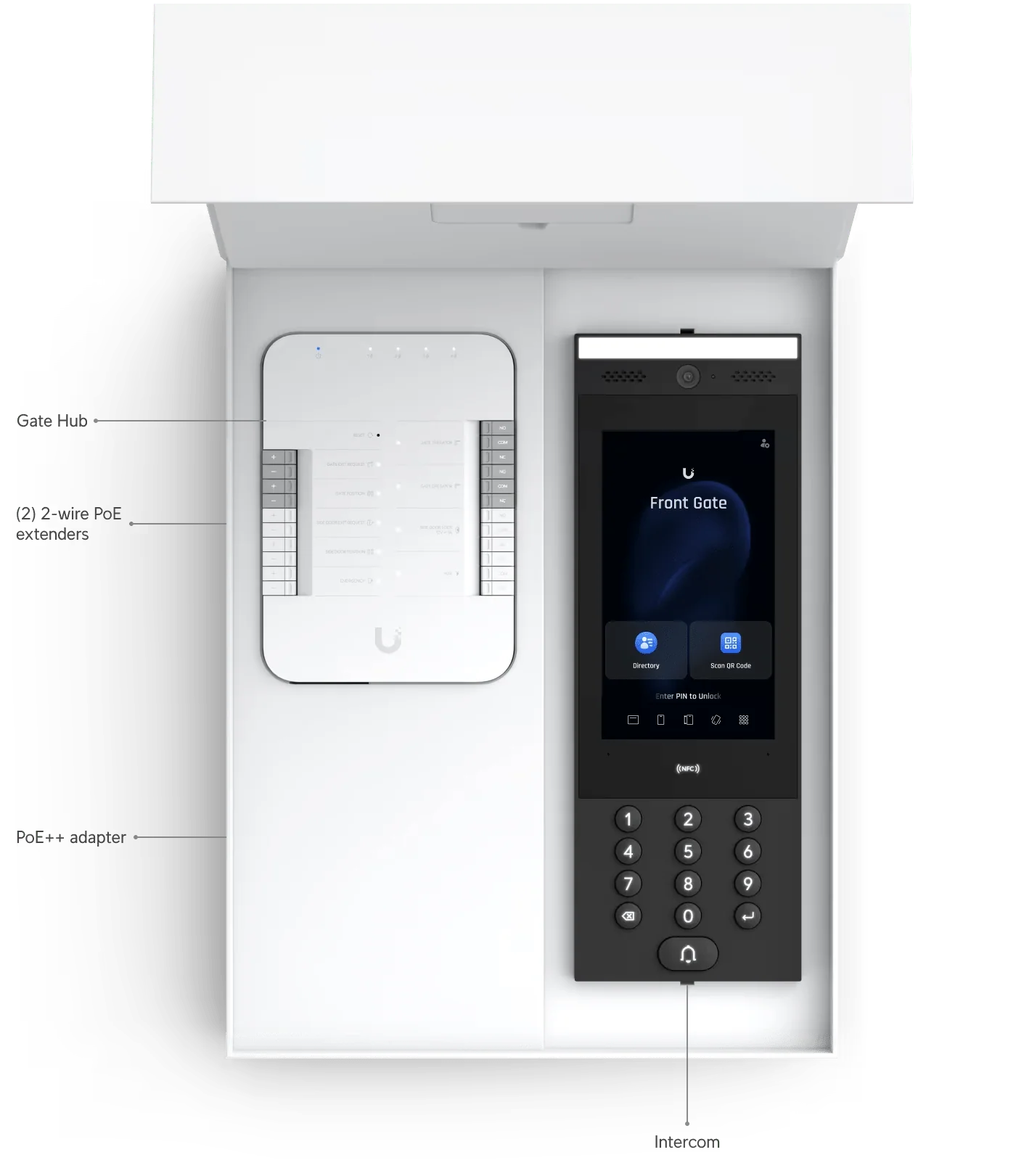

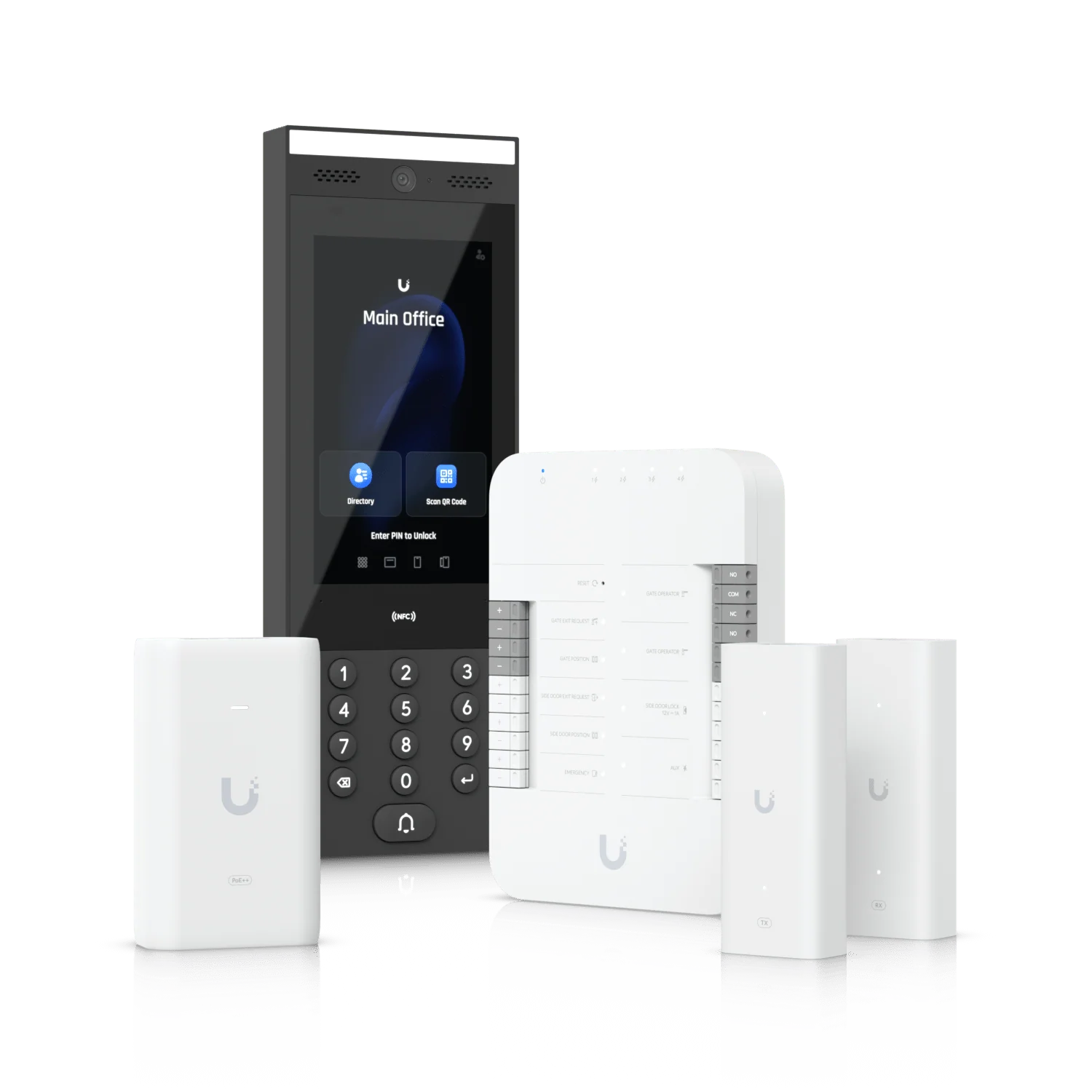

What's in the Box

• (1) Gate Hub
• (1) Intercom

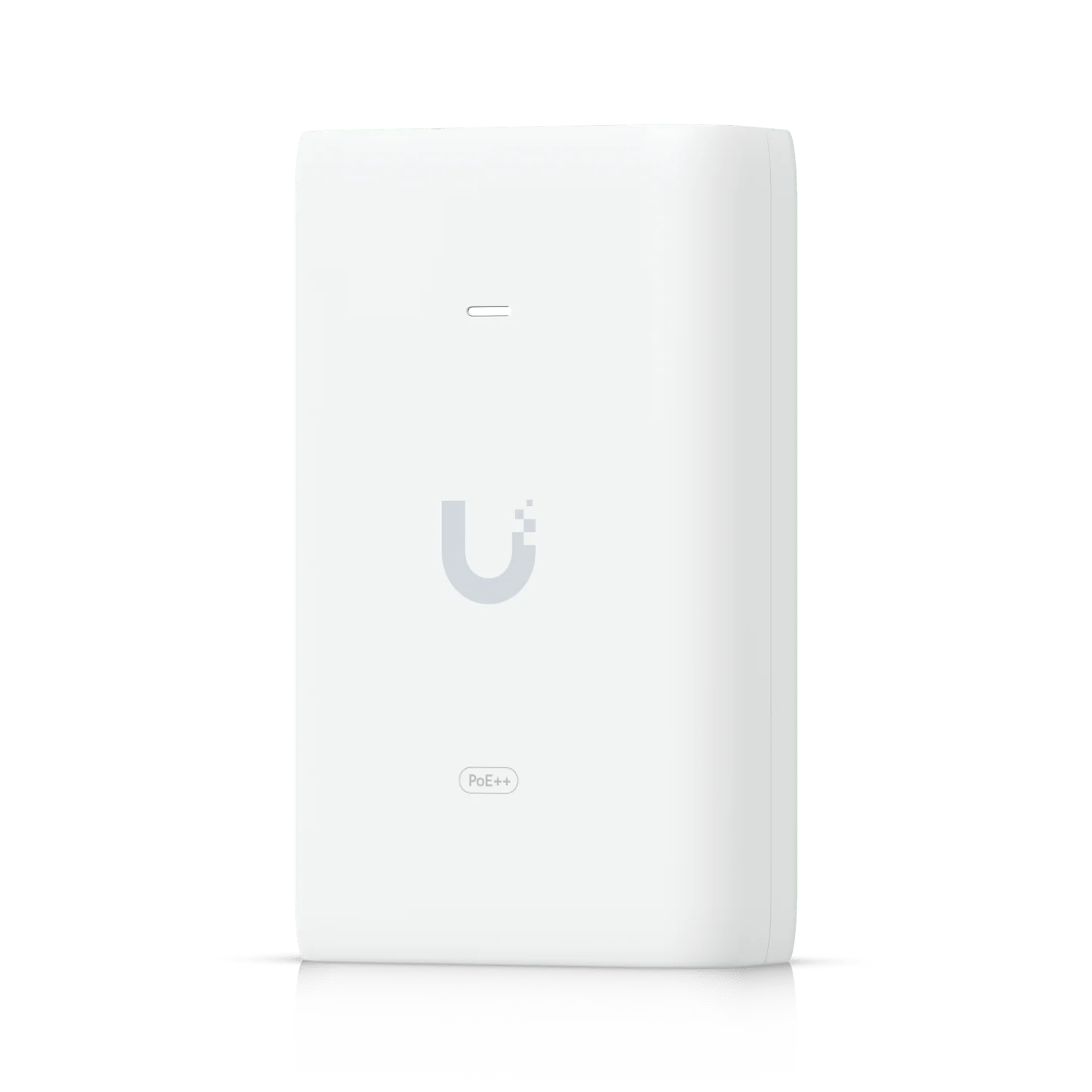

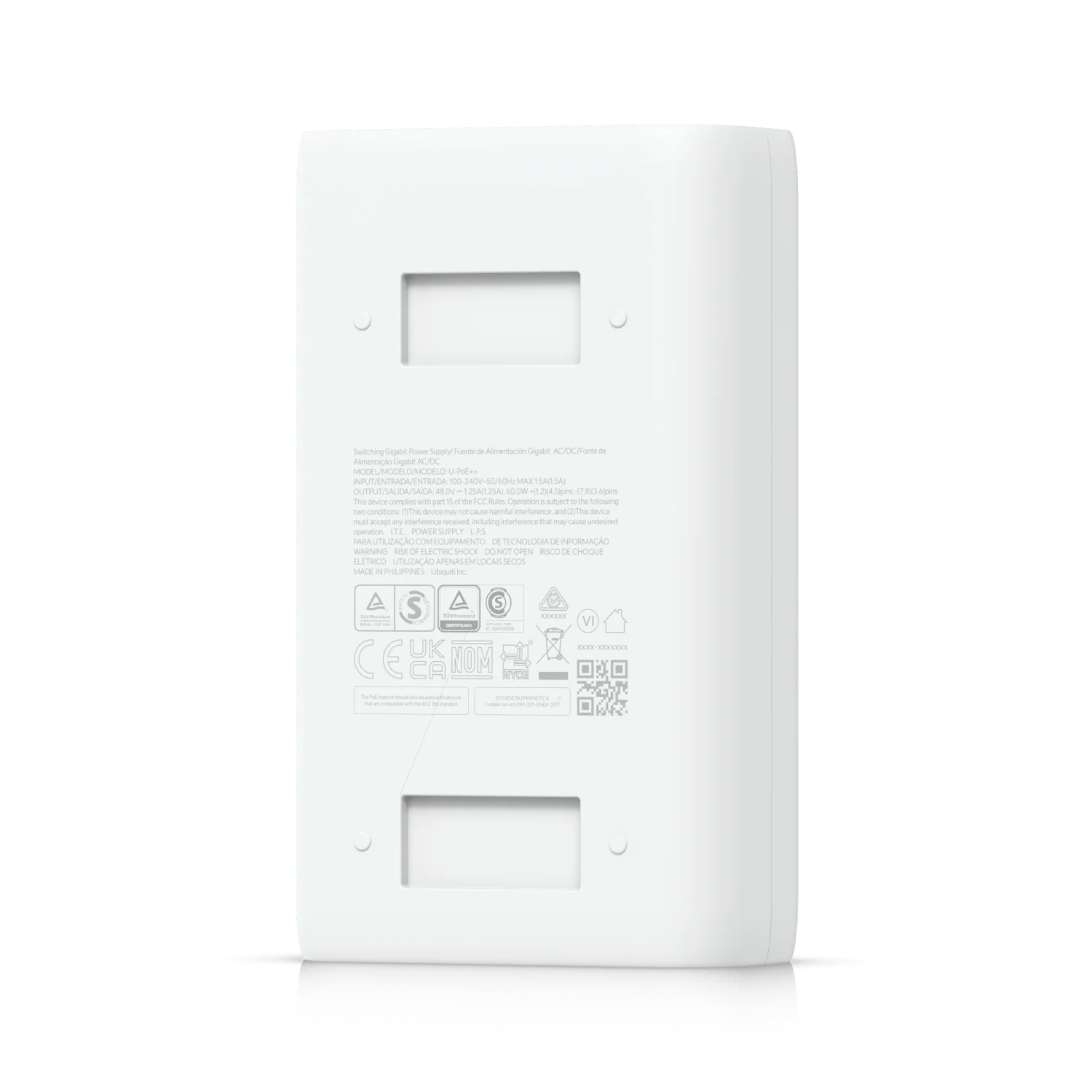

• (1) PoE++ Adapter

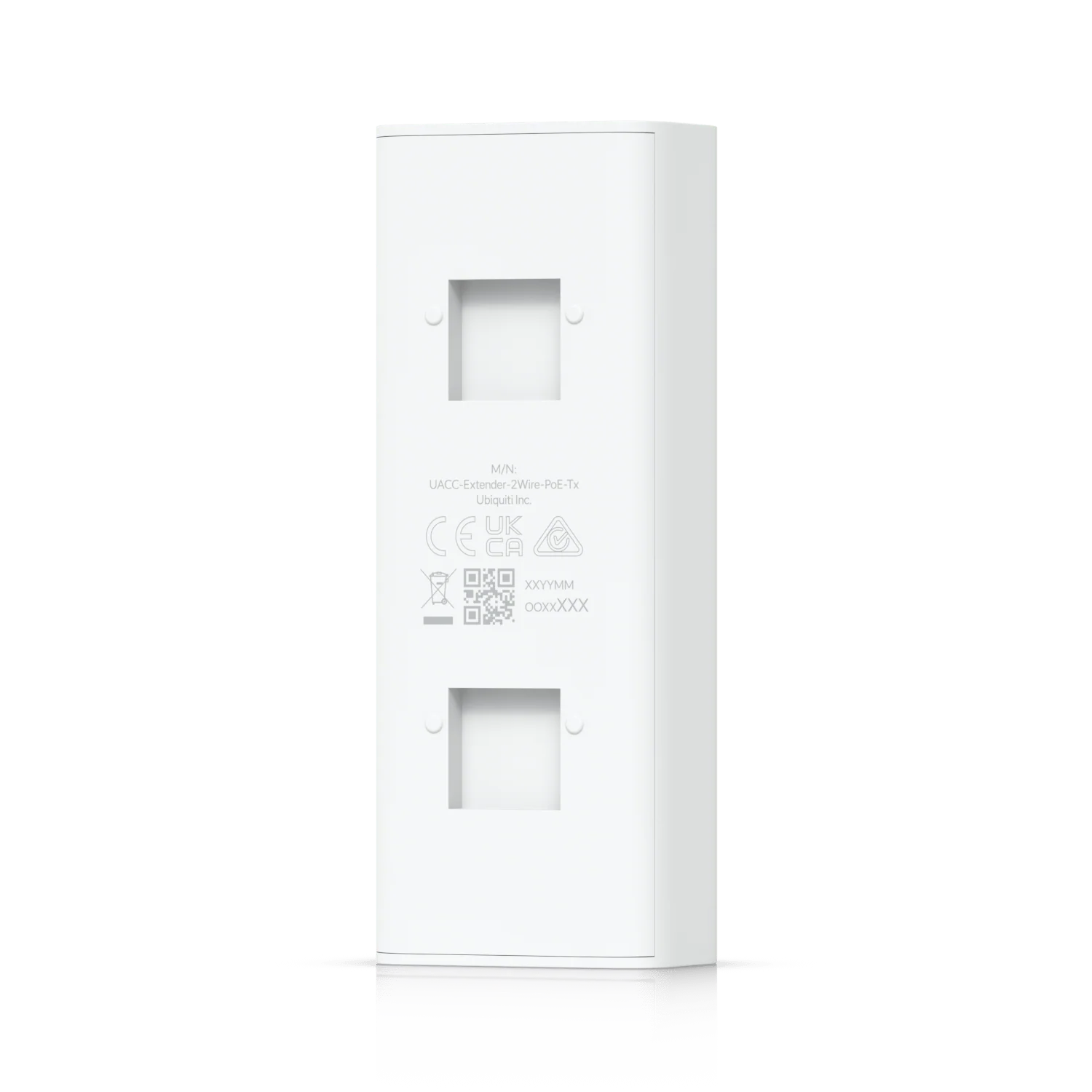

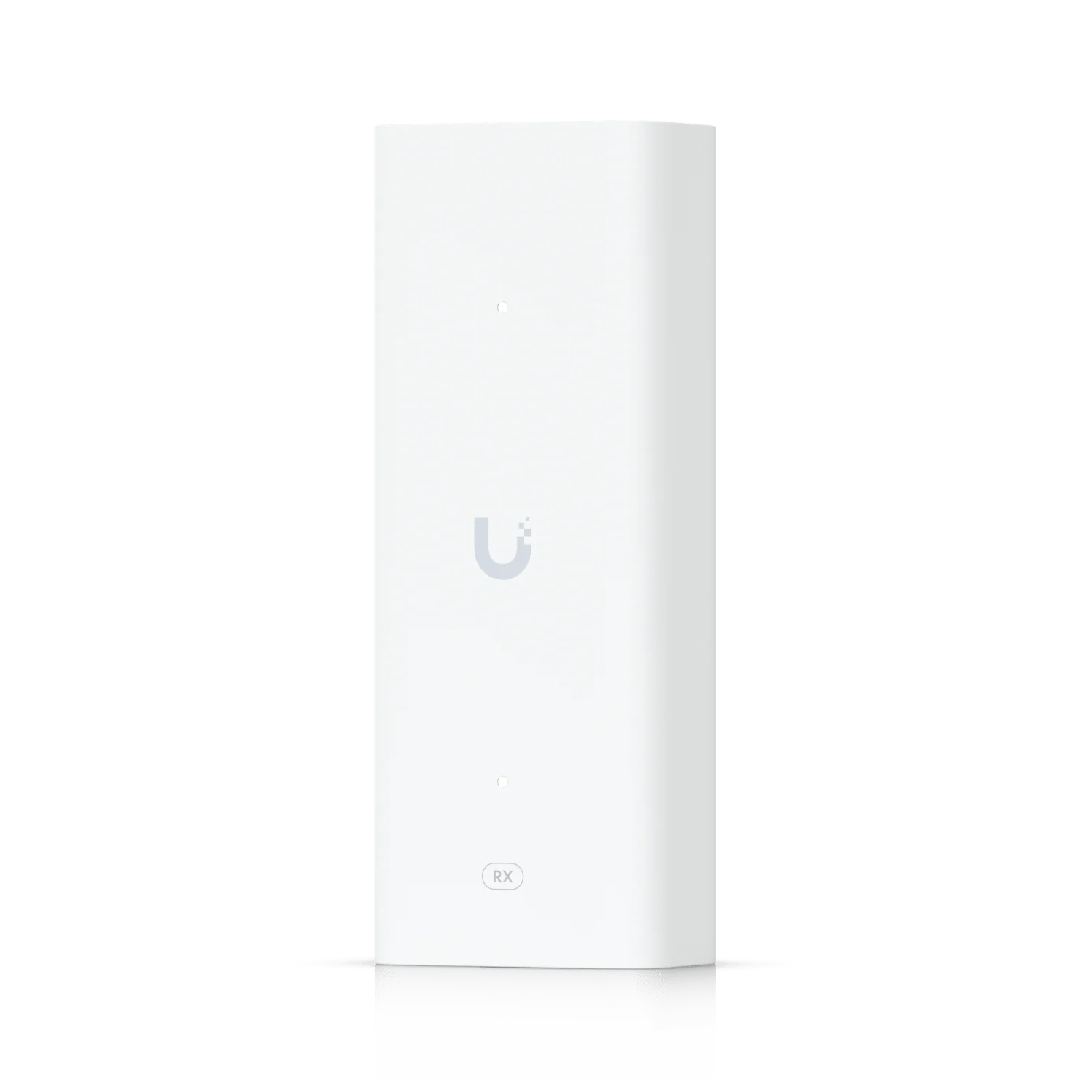

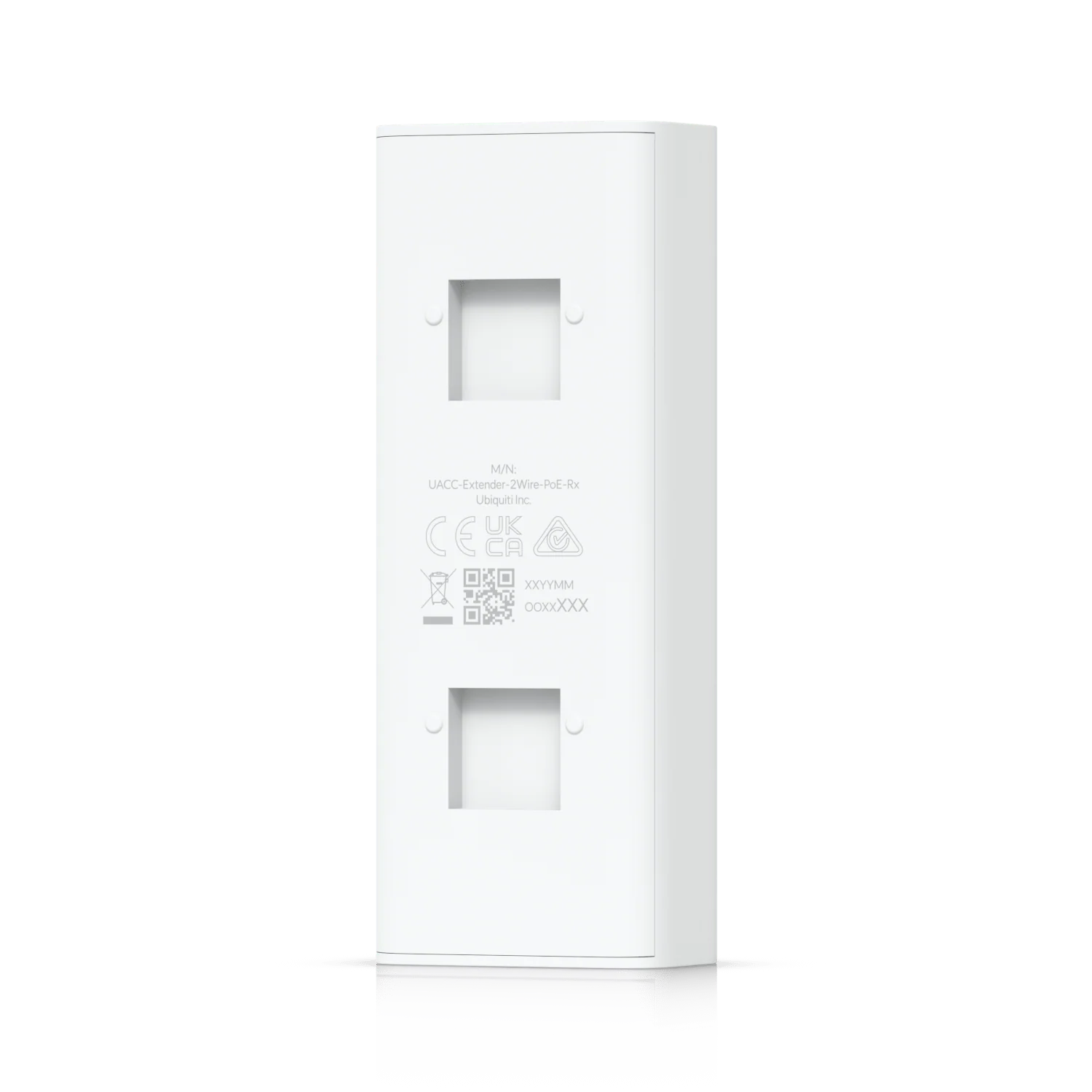

• (2) 2-Wire PoE Extenders

Summary

The Ubiquiti UA-SK-Gate Starter Kit provides next-generation vehicle gate control by combining AI-driven license plate recognition, multi-factor user access, and rugged intercom hardware in a PoE-powered, all-in-one solution. Designed for secure, automated, and scalable vehicle access, this kit is ideal for gated communities, offices, logistics sites, and other controlled environments.
