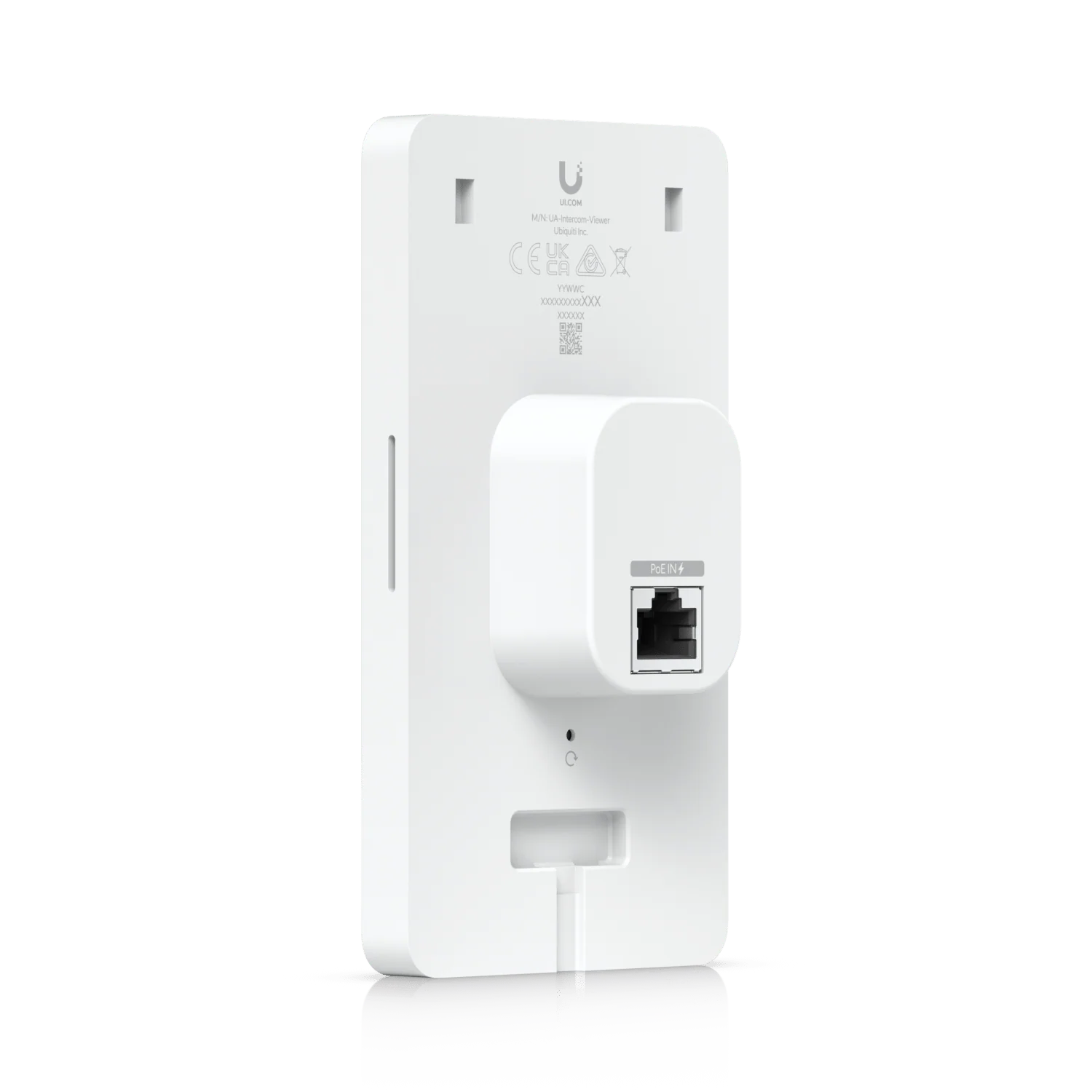

Ubiquiti UA-Intercom-Viewer Intercom Viewer

Simplify Visitor Management with Real-Time Access Control

The UA-Intercom-Viewer offers a seamless visitor screening experience with a vibrant 5” touch display, live video feeds, and two-way audio — fully integrated with UniFi Access systems for secure and centralized door management.

Highlights

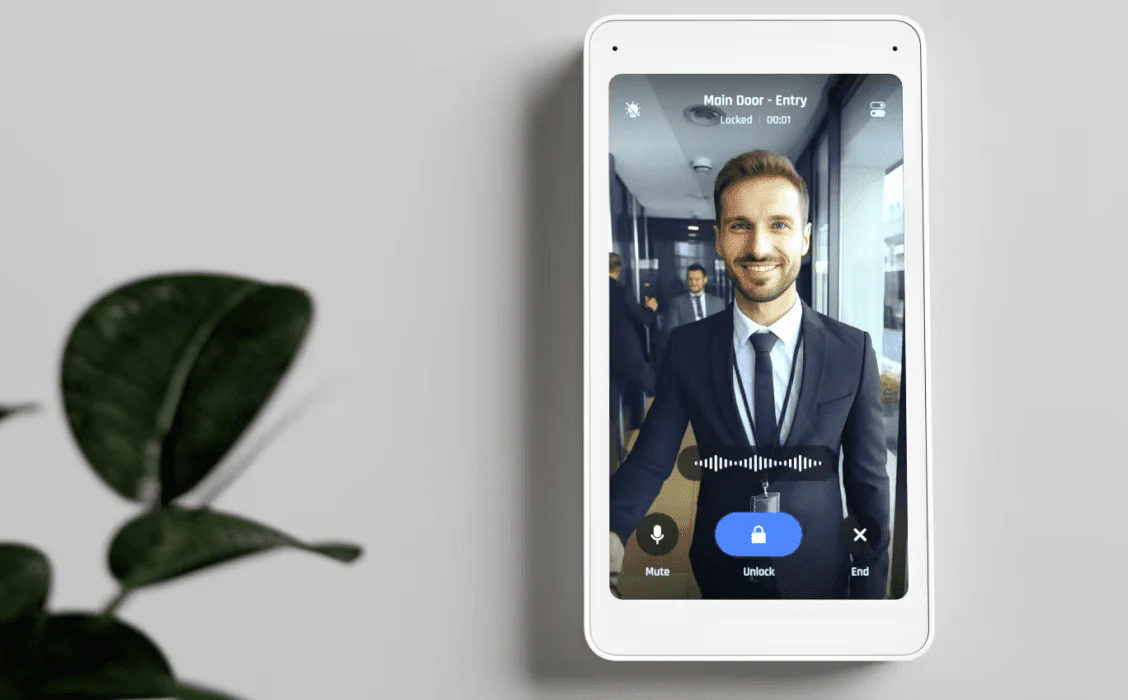

• 5" capacitive multi-touch display for live visitor interaction

• Real-time video monitoring with instant doorbell call notifications

• Two-way audio communication for direct visitor engagement

• PoE-powered with simple Ethernet connectivity

• Wall-mountable design with optional gang box mounting

• Compatible with UA-Intercom, UA-G2-Pro, and UA-G3-Pro

Ideal Use Cases

• Residential Complexes: Centralized visitor screening at every unit

• Office Buildings: Real-time guest verification for controlled entry

• Hospitality & Retail: Monitor entrances and manage visitor access efficiently

• Educational Institutions: Secure student and staff entry with visual confirmation

Key Features

Display & Interface

• Screen Size: 127 mm (5-inch diagonal)

• Display Technology: Capacitive multi-touch

• Resolution: 1280 x 720 pixels

• Brightness: 300 nits (typical)

• Orientation: Portrait mode

Audio & Communication

• Microphone: Integrated

• Speaker: Integrated for two-way audio

• Audio Interaction: Direct visitor communication at the door

Installation & Mounting

• Mount Options: Wall mount (included), gang box mount (optional)

• Enclosure Materials: Glass, polycarbonate, aluminum alloy mounting bracket

• Indoor Use Only

Networking & Power

• Ethernet Port: (1) 10/100 Mbps RJ45 port

• Power Method: PoE (Power over Ethernet)

• Maximum Power Consumption: 5W

• Supported Voltage Range: 44–57V DC

Security & Compliance

• NDAA Compliant: Yes

• UL 294 Level: Level I (Destructive attack, Line security, Endurance, Standby power)

• Mobile Unlock: Supported with UniFi Access app

• Protect Recording: Intercom integrated camera supports Protect for continuous security recording

Additional Features

• Button: (1) Factory-reset button

• PoE Cable Requirements: Cat 5e minimum, 24 AWG horizontal cabling recommended

System Integration

• Managed with UniFi Access for centralized visitor and access management

• Works seamlessly with UniFi Access Control Hubs such as EAH-8, UA-Hub, and UA-Hub-Door

• Intercom Viewers can connect directly to PoE switches (unlike Intercom units)

• Supports UniFi Talk Phones and UniFi Identity App for remote unlocks

Summary

The UA-Intercom-Viewer transforms entry management with real-time video monitoring, two-way communication, and intuitive access control integration via UniFi Access. Featuring a 5” responsive touchscreen, secure PoE connectivity, and sleek, durable construction, it enhances security, convenience, and visitor management across residential, commercial, and institutional environments.
