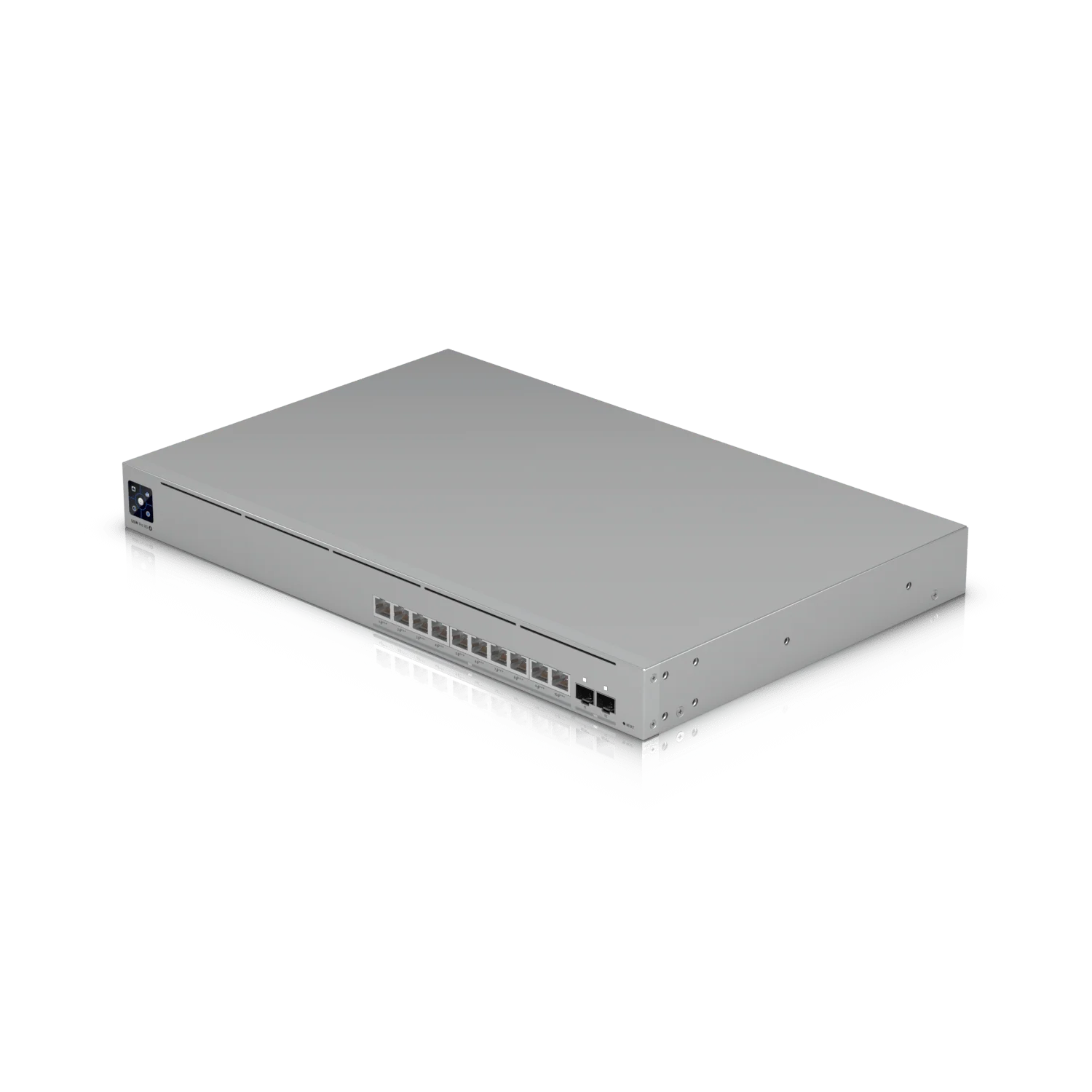

Ubiquiti USW-Pro-XG-10-PoE 400W Pro XG 10-Port L3 10GbE POE+++ Switch

Enterprise-Grade 10-Port 10GbE PoE+++ Layer 3 Switch

The Ubiquiti USW-Pro-XG-10-PoE 400W is a high-performance Layer 3 managed switch, offering 10GbE connectivity, PoE+++ support, and advanced routing features. Designed for businesses, data centers, and professional AV environments, it features (10) 10GbE PoE+++ ports, (2) 10G SFP+ uplinks, and a 400W PoE budget, ensuring uncompromised network speed and reliability.

Highlights

• 10 Multi-Gigabit 10GbE PoE+++ Ports for ultra-fast networking
• (2) 10G SFP+ uplinks for high-speed aggregation and expansion
• 400W total PoE budget to power high-performance devices
• 240 Gbps switching capacity & 120 Gbps non-blocking throughput
• Advanced Layer 3 routing with Inter-VLAN & Static Routing
• Etherlighting™ technology for real-time port status monitoring
• 1U rack-mountable design with DC power backup support

Key Features

High-Speed 10GbE PoE+++ Switching

• 10 PoE+++ (90W) ports support WiFi 7 APs, AV systems, and high-power devices
• Total PoE power budget: 400W for multiple high-demand devices
• Redundant power support with DC backup for network stability

Enterprise-Grade Network Performance

• Switching Capacity: 240 Gbps
• Non-Blocking Throughput: 120 Gbps
• Forwarding Rate: 178.57 Mpps
• Packet Buffer Size: 2MB

Advanced Layer 3 Routing & Traffic Management

• Static Routing & Inter-VLAN Routing for optimized traffic flow
• DHCP Server & Relay for efficient IP management
• MAC-Based ACLs, IP-Based ACLs & Network Isolation for enhanced security

Professional AV & Multicast Optimization

• Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
• Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
• QoS (DSCP), 802.1X, and VLAN support

Enhanced Security & Network Protection

• MAC Address Blocking & Device Isolation
• Port Mirroring & Loop Protection
• Storm Control & Broadcast Rate Limiting

Intelligent Management & Monitoring

• 1.3" LCM Touchscreen Display for real-time network insights
• Cloud-based management via UniFi Controller
• Compact 1U rack-mountable design for space-efficient deployment

Technical Specifications

Specification	Details

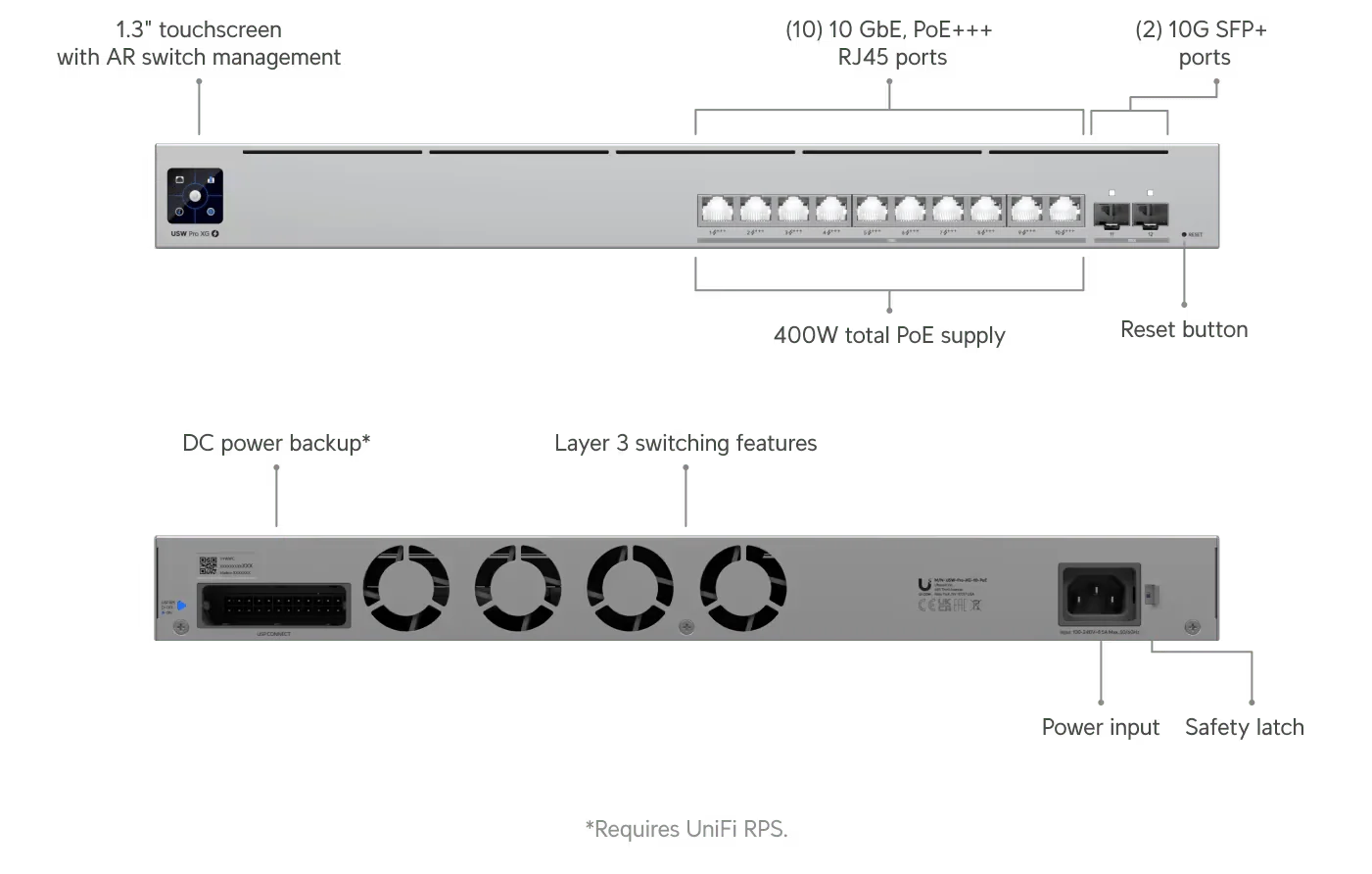

Port Layout	(10) 10GbE PoE+++, (2) 10G SFP+
Switching Capacity	240 Gbps
Total Non-Blocking Throughput	120 Gbps
Forwarding Rate	178.57 Mpps
PoE Budget	400W
PoE Power Per Port	PoE (15.4W), PoE+ (30W), PoE++ (60W), PoE+++ (90W)
L3 Routing Features	Static Routing, DHCP Server, Inter-VLAN Routing
L2 Network Features	LACP, RSTP, VLANs, QoS, IGMP Snooping
Power Input	100-240V AC, 50/60 Hz
Redundancy	DC Power Backup (USP-RPS)
Mounting	Rack-Mount (1U)
Display	1.3" touchscreen
Weight	4.6 kg (without brackets), 4.7 kg (with brackets)
Operating Temperature	-5 to 40°C (23 to 104°F)
Certifications	CE, FCC, IC

Summary

The Ubiquiti USW-Pro-XG-10-PoE is a powerful 10-port Layer 3 managed switch, offering multi-gigabit PoE+++ support, advanced security, and professional AV integration. With 10GbE connectivity, 10G SFP+ uplinks, and a 400W PoE budget, it is the ideal solution for enterprise networking, AV systems, and high-performance infrastructure.
