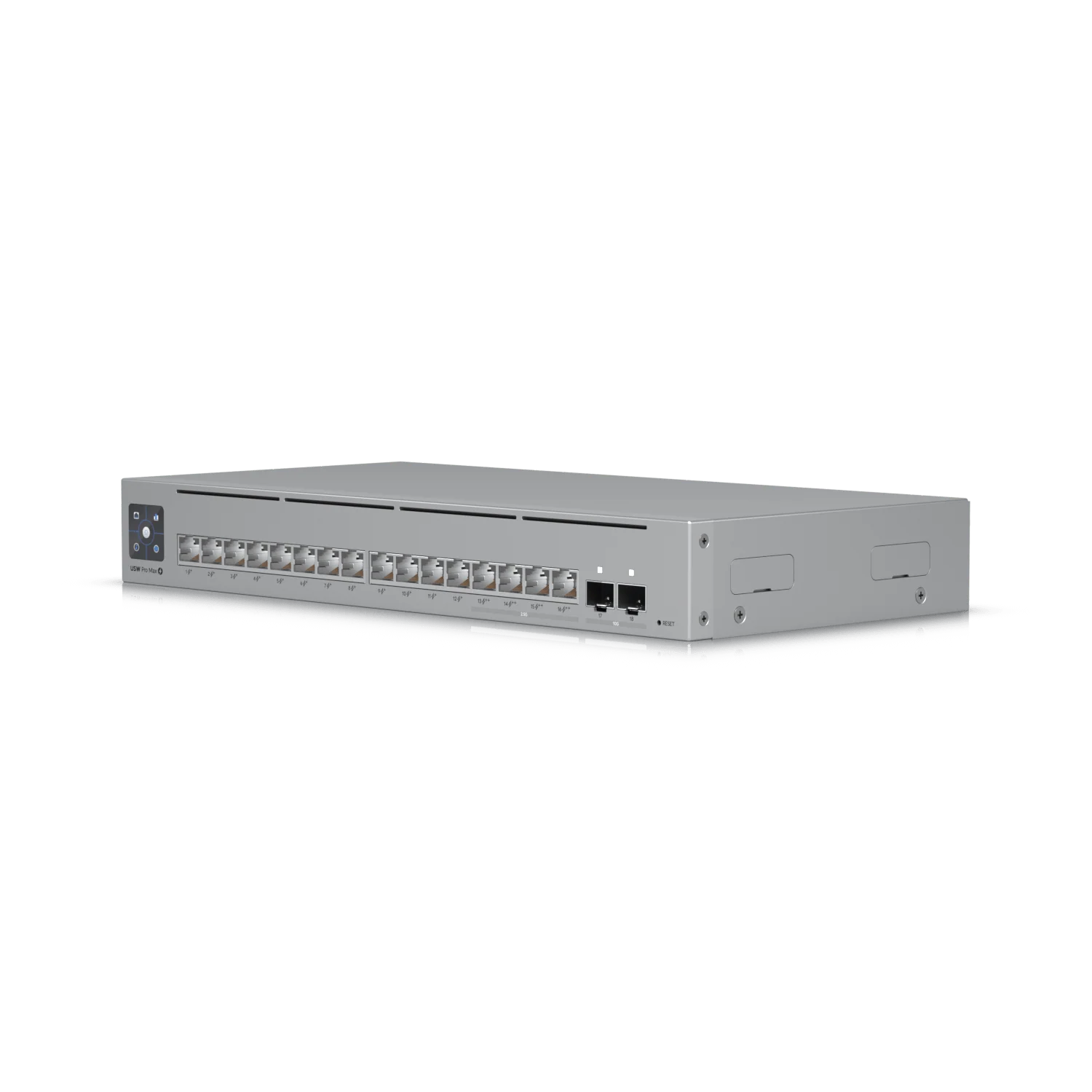

Ubiquiti USW-Pro-Max-16-PoE Pro Max 16 PoE 16-Port POE++ Layer 3 Etherlighting Switch

Enterprise-Grade Layer 3 with Etherlighting™ and PoE++

A high-performance 16‑port switch featuring 2.5 GbE PoE++, Etherlighting™ for visual port management, and flexible desktop, wall, or rack install options.

Highlights

• 16 ports with PoE++ (4× 2.5 GbE, 12× 1 GbE), plus 2× 10 GbE SFP+

• Total PoE budget: 180 W, up to 60 W per PoE++ port

• Layer 3 features: DHCP (server/relay), static routing, inter‑VLAN

• Etherlighting™ port LEDs, silent fanless design, touchscreen LCM

Key Features

Ports & Power

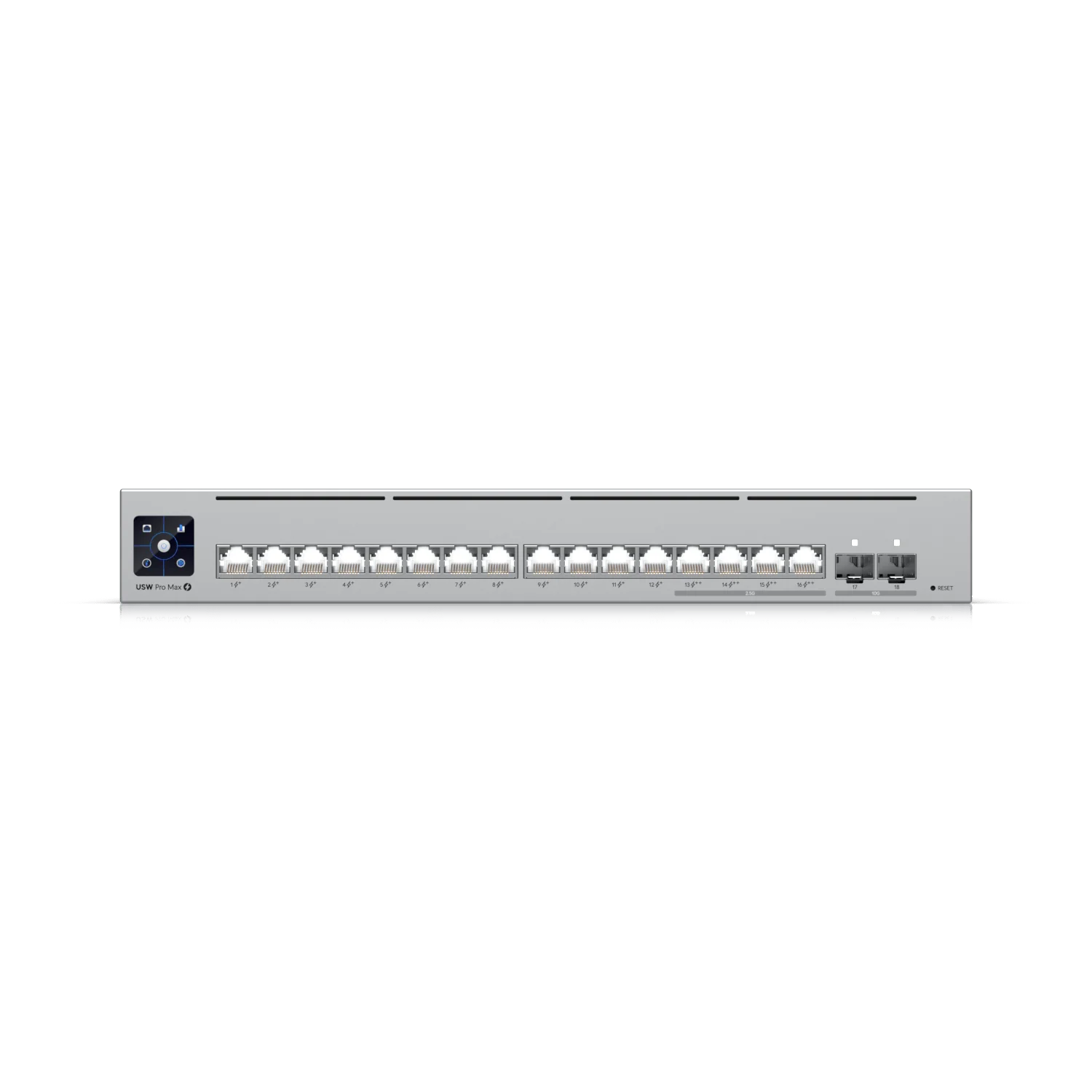

• 4× 2.5 GbE RJ45 PoE++ ports (60 W max each)

• 12× 1 GbE RJ45 PoE+ ports (30 W max each)

• 2× 10 GbE SFP+ uplink ports

• Total PoE budget: 180 W

Performance & Switching

• Switching capacity: 84 Gbps, throughput: 42 Gbps

• Forwarding rate: 62 Mpps

• Supports up to 1,000 VLANs, 16,000 MAC addresses, 512 IPv4 routes

• Packet buffer: 1.5 MB

Layer 2 & Layer 3 Support

• DHCP server, DHCP relay, static routing, inter‑VLAN routing

• LACP, STP/RSTP, IGMP snooping, jumbo frames, 802.1X, ACLs, mirror

• Storm control, flow control, loop protection, broadcast rate limiting

Design & Management

• Dimensions: 325.1 × 160 × 43.7 mm (12.8 × 6.3 × 1.7 in)

• Weight: 2.1 kg (4.6 lb)

• Enclosure: SGCC steel; silent fanless cooling

• 1.3″ touchscreen display; Etherlighting LEDs on ports

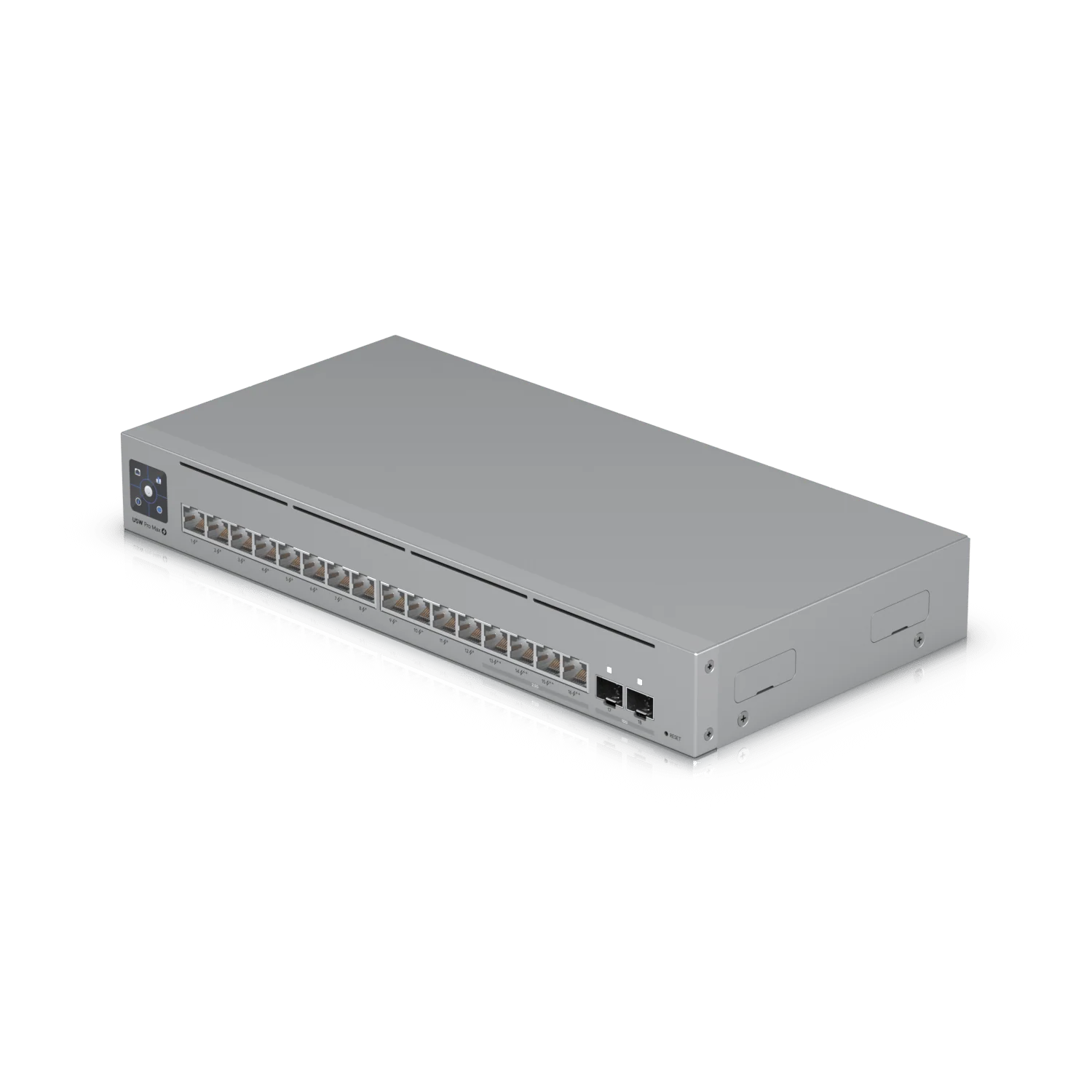

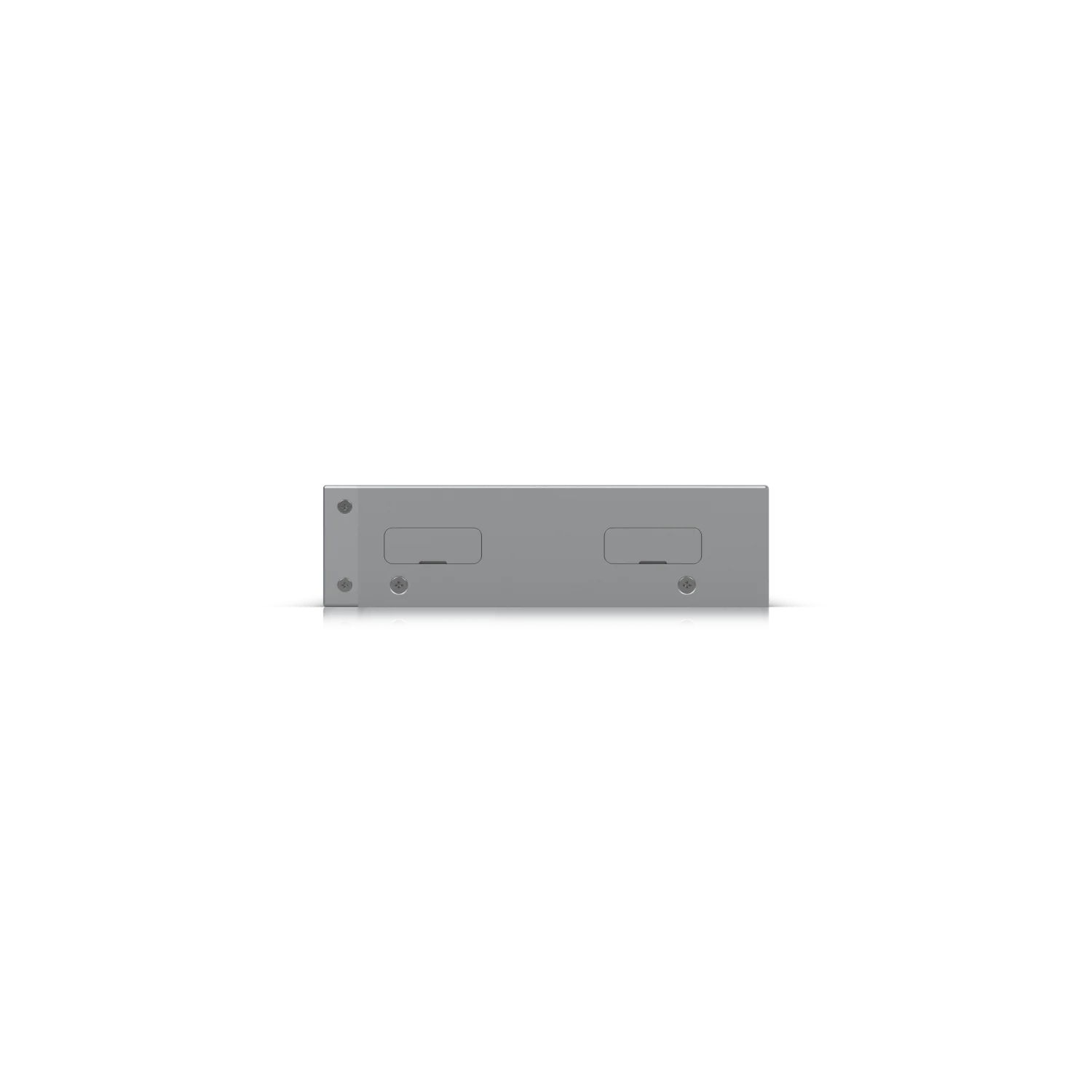

• Mounting: desktop, wall or 1U rack (with accessory)

Power & Environmental

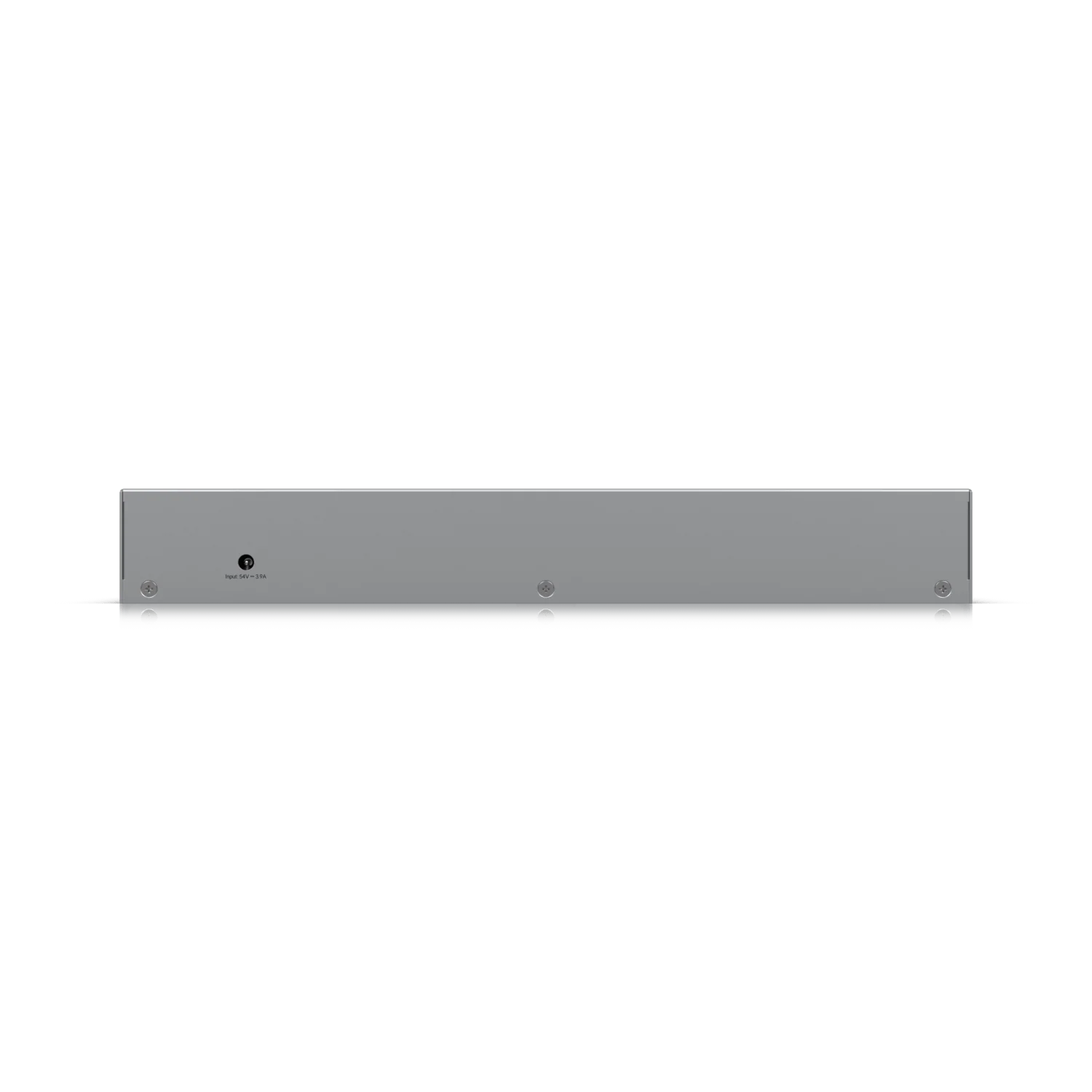

• External 210 W AC/DC adapter, 54 V DC input

• Power consumption: 30 W (no PoE load); PoE up to 210 W total

• Operating temperature: –5 °C to 40 °C (23 °F to 104 °F)

• Humidity: 10–90% non‑condensing

Compliance & Software

• Certifications: CE, FCC, IC, NDAA

• Requires UniFi Network v8.1.127+, managed via web, app or controller

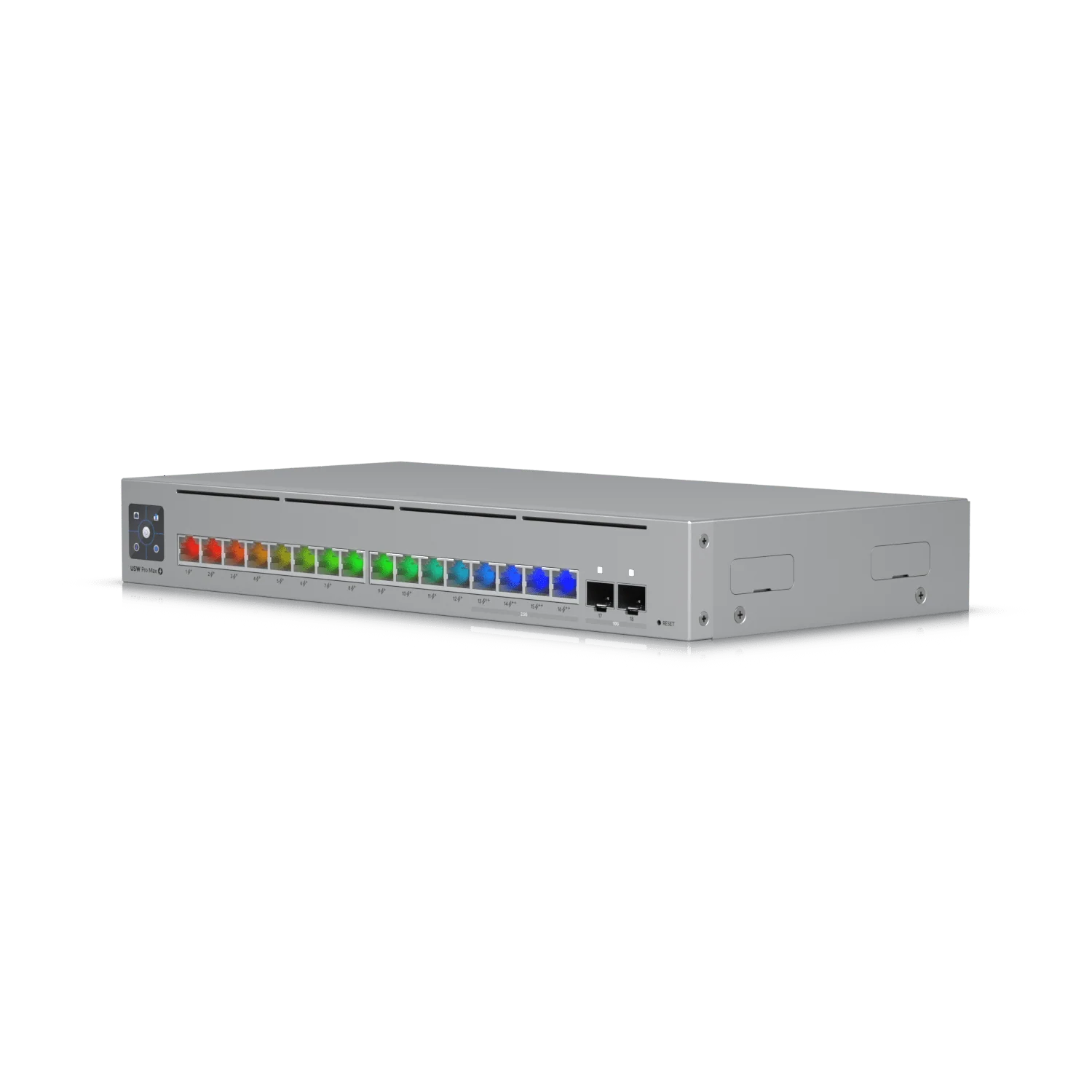

• Etherlighting™ visual port feedback requires UniFi Etherlighting patch cables

Summary

The USW‑Pro‑Max‑16‑PoE is a top-tier Layer 3 switch delivering blazing performance, generous PoE++ power, and intuitive port management via Etherlighting™. Its silent, fanless design and multiple mounting options suit any enterprise environment including offices, labs, and AV installations. Integrated Layer 3 routing and touchscreen control make it a powerful, flexible core switch for modern networks.
