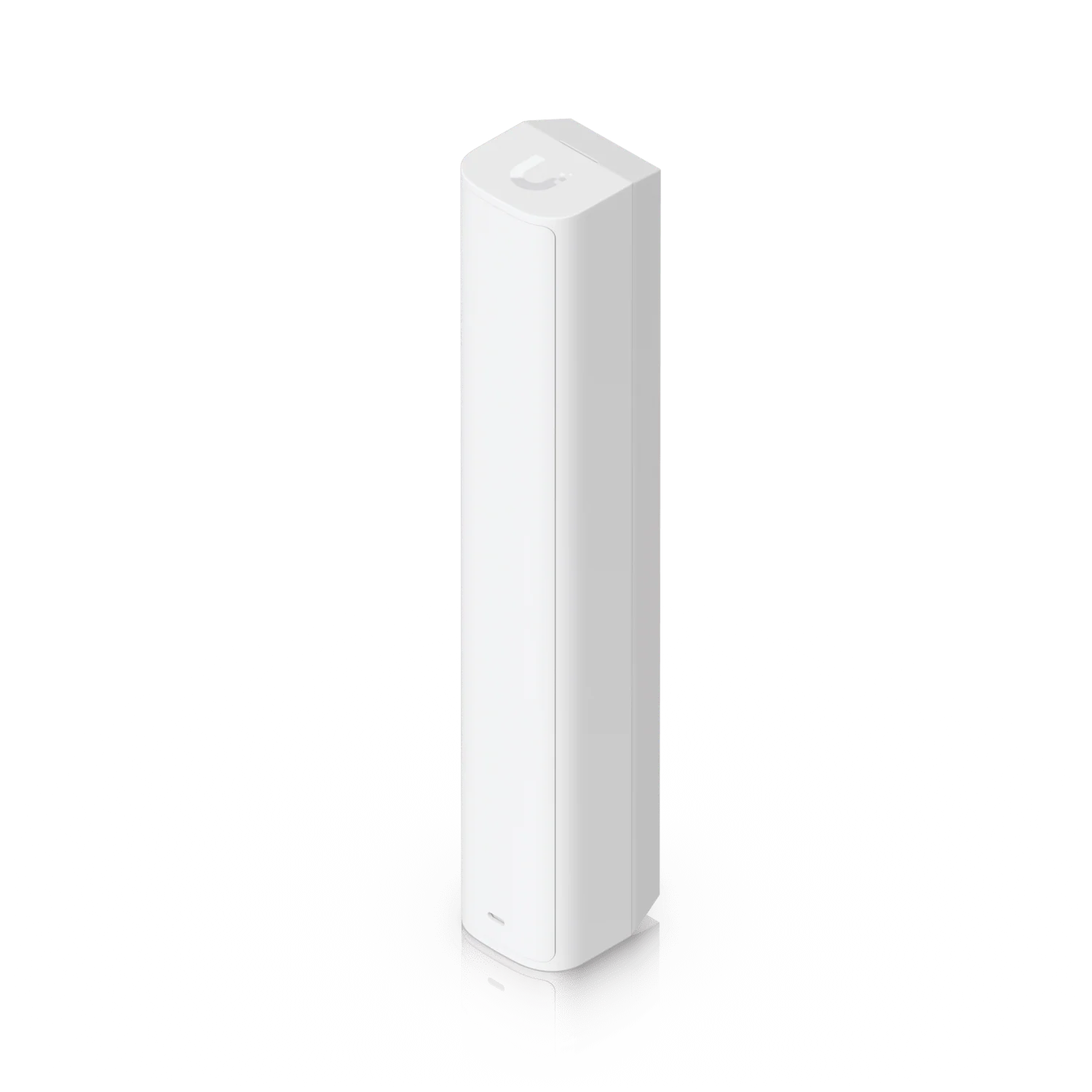

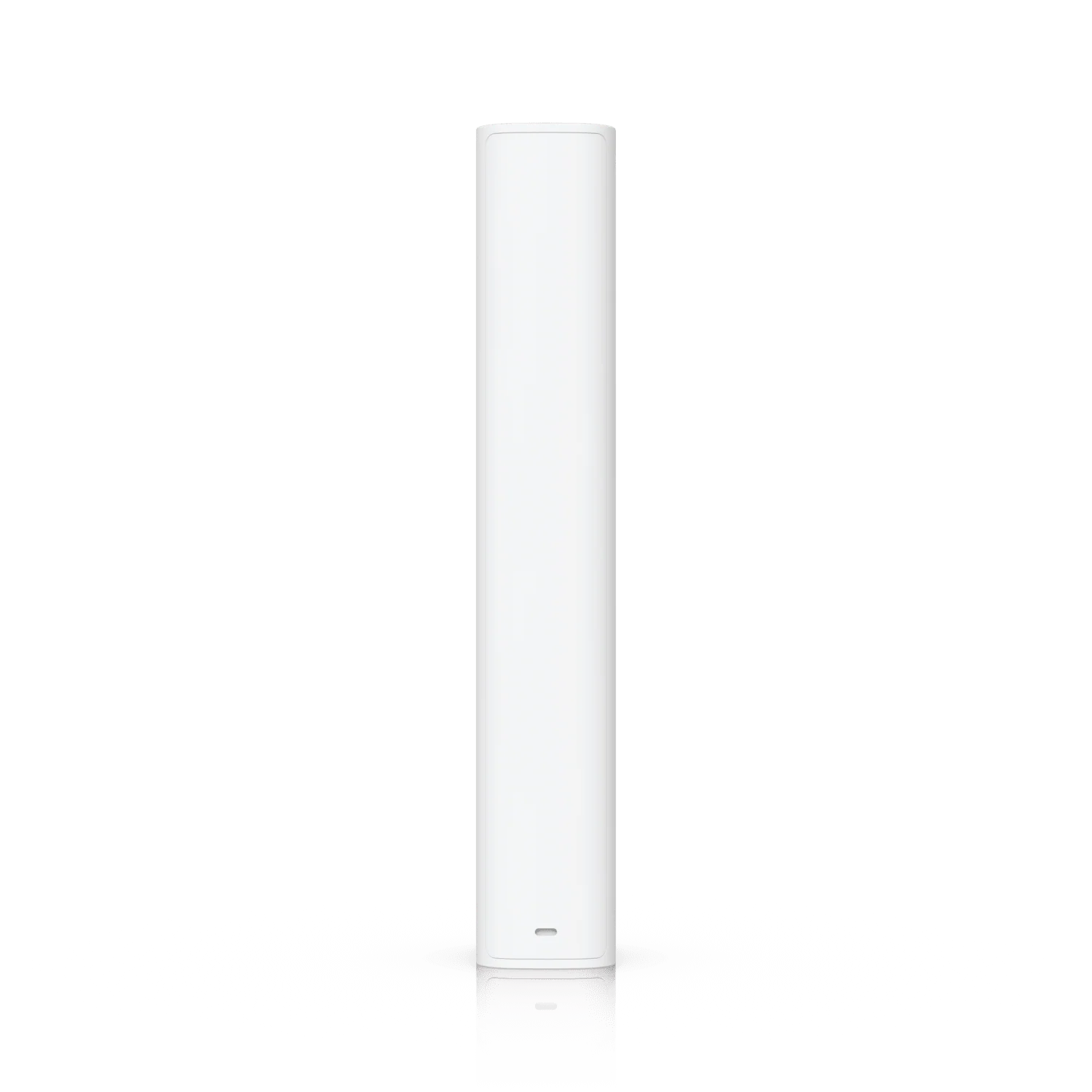

Ubiquiti USL-GlassBreak SuperLink Glass Break Sensor

Long-Range Glass Break Detection for Distributed Security Deployments

Engineered for perimeter protection and intrusion detection, this SuperLink glass break sensor delivers reliable acoustic detection and motion sensing with extended wireless coverage, seamlessly integrating into UniFi Protect environments.

Highlights

Advanced Glass Break Detection

• Detects plate, tempered, obscured, laminated, coated, and wired glass
• Supports glass sizes from 280 × 356 mm to 1067 × 1626 mm
• Supports thickness from 2.4 mm to 6.4 mm
• Integrated microphone for precise acoustic analysis

Dual-Sensor Protection

• Built-in PIR sensor for motion detection
• Tamper switch for physical interference alerts
• Multi-layer event validation to reduce false alarms

Extended SuperLink Coverage

• Proprietary SuperLink wireless connectivity
• Up to 2 km line-of-sight communication range
• Designed for large facilities and distributed sites

Key Features

Ubiquiti USL-GlassBreak SuperLink Glass Break Sensor

• Managed via UniFi Protect application suite
• NDAA compliant for regulated environments
• Suitable for offices, retail, warehouses, and critical facilities

Long-Range Wireless Performance

• Operating frequencies
US 915.6 to 927.6 MHz
EU 865.1 to 869.5 MHz
• Antenna gain 1 dBi
• Maximum transmit power 14 dBm
• Maximum range up to 2 km line-of-sight

Flexible Installation Options

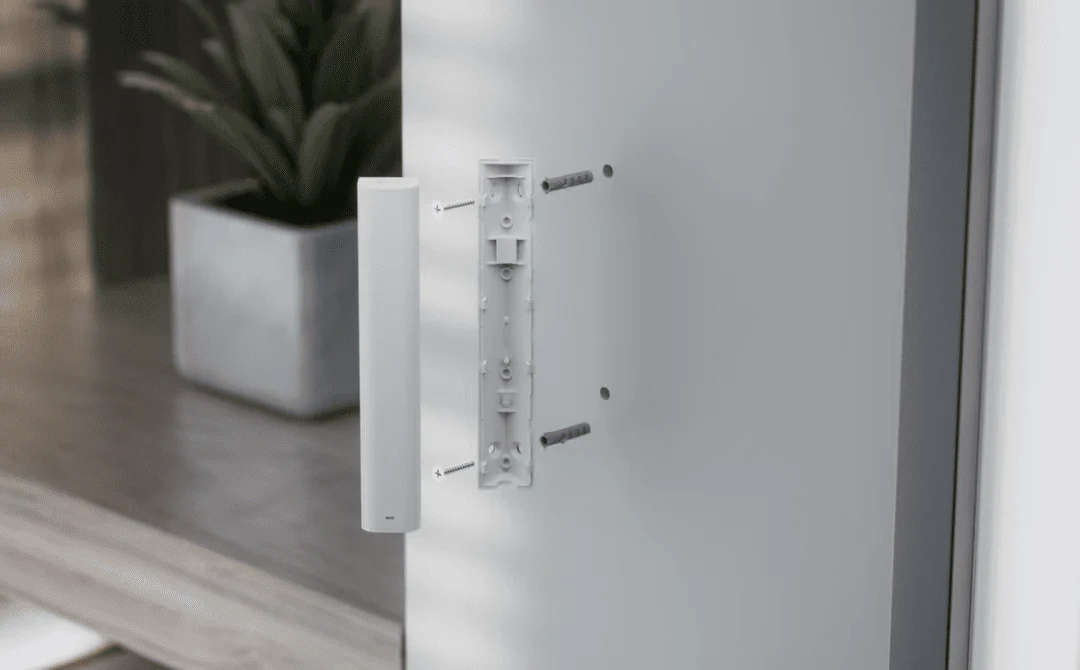

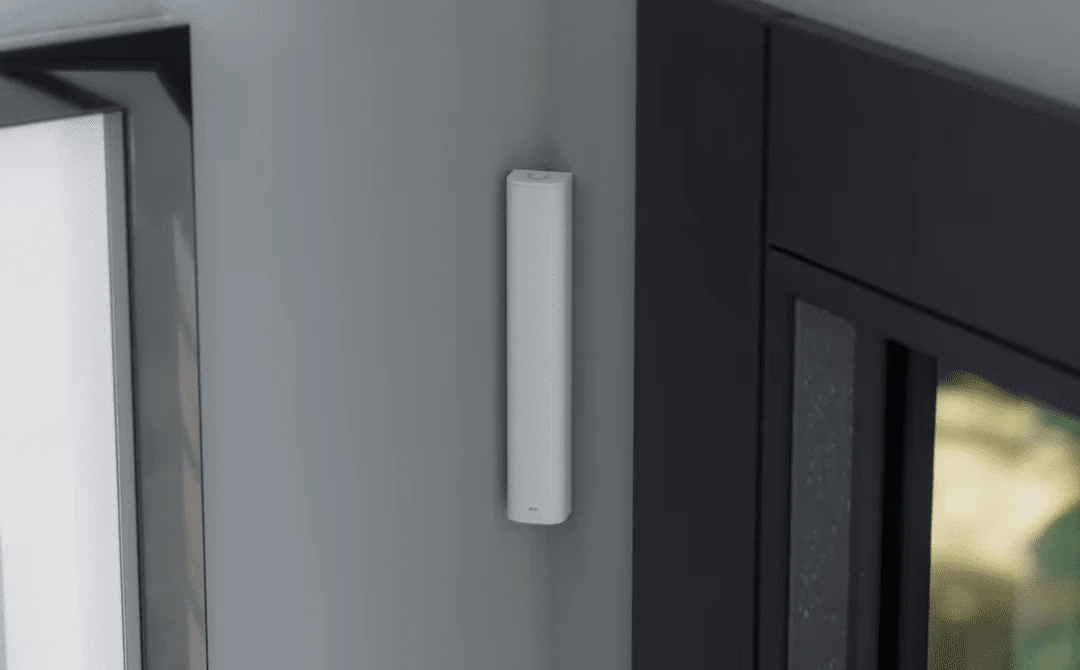

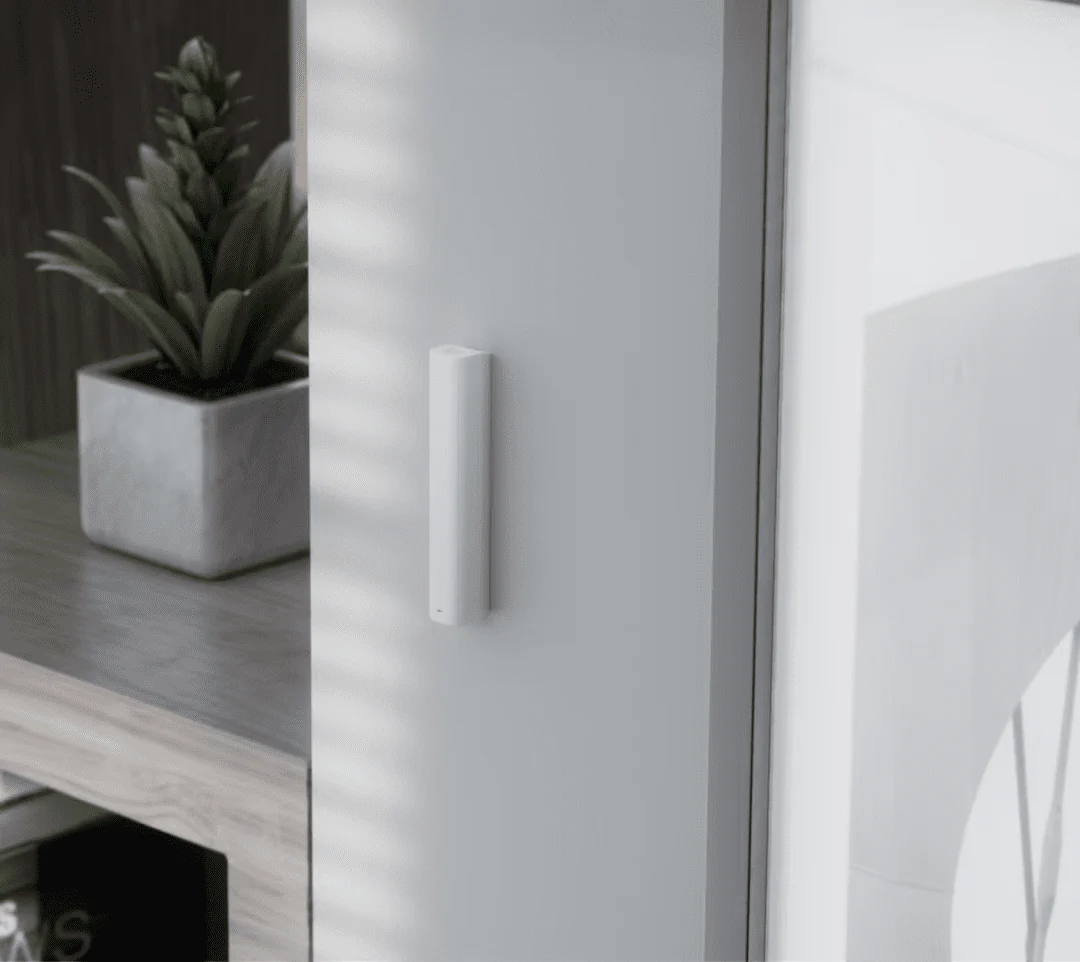

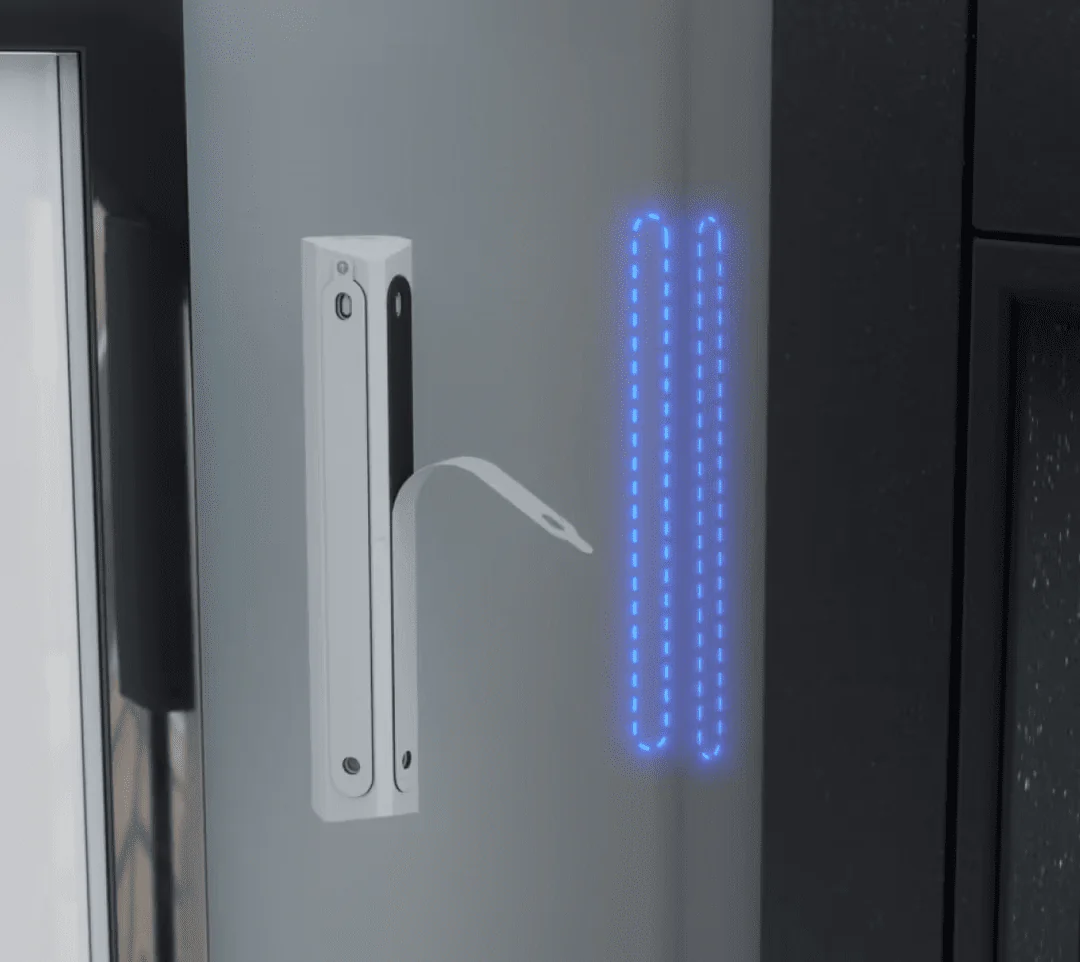

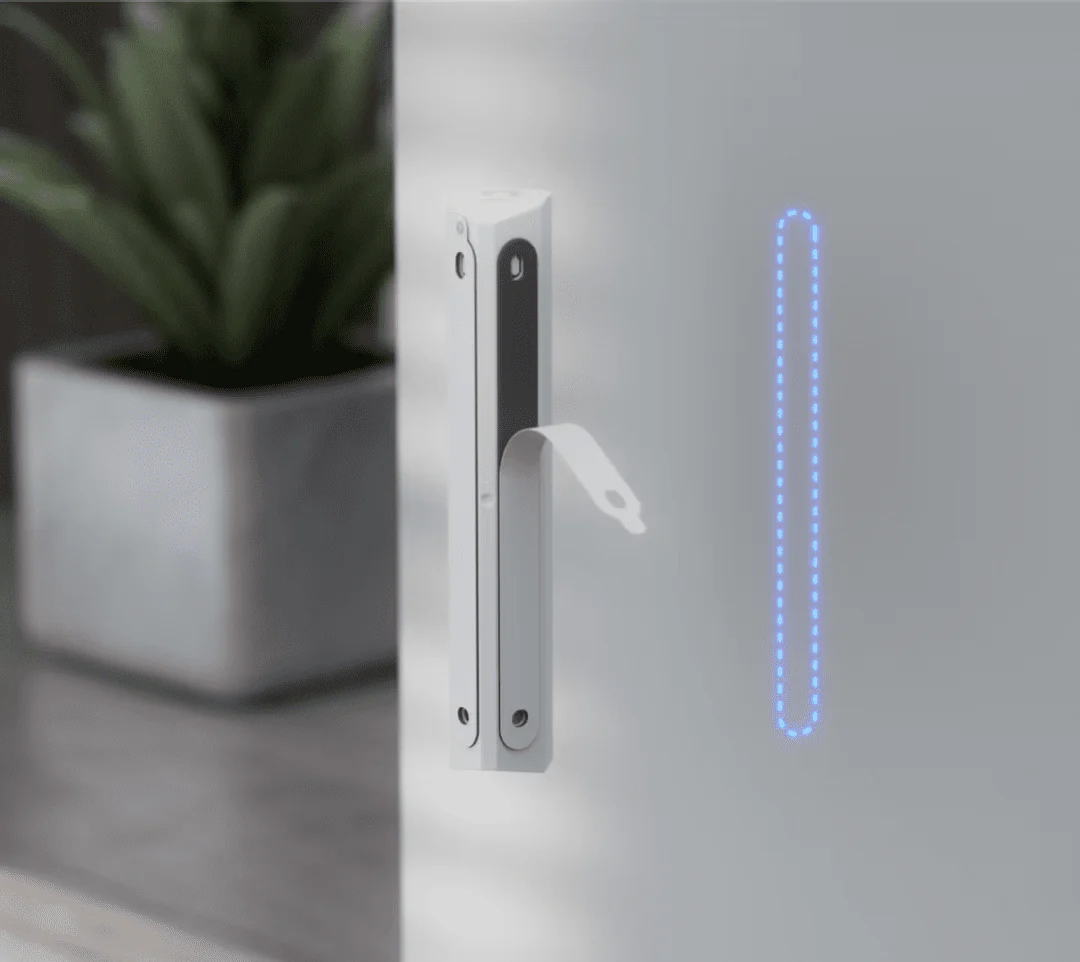

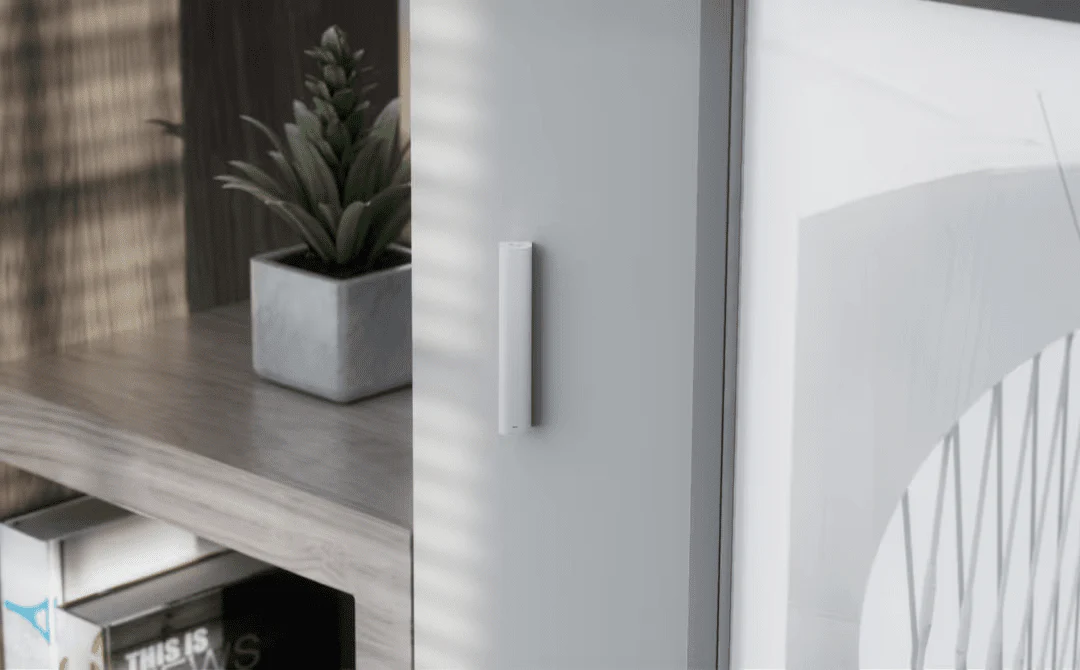

• Wall or corner mount configurations

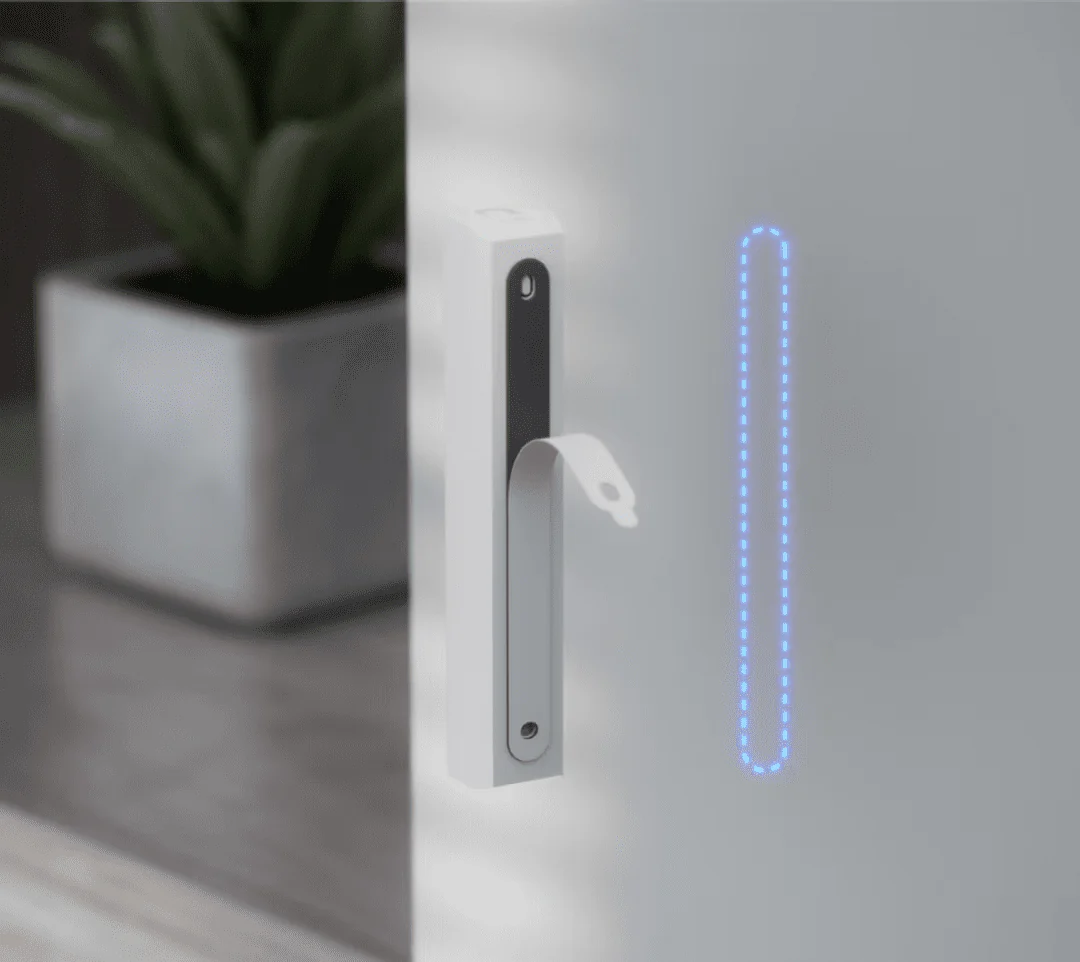

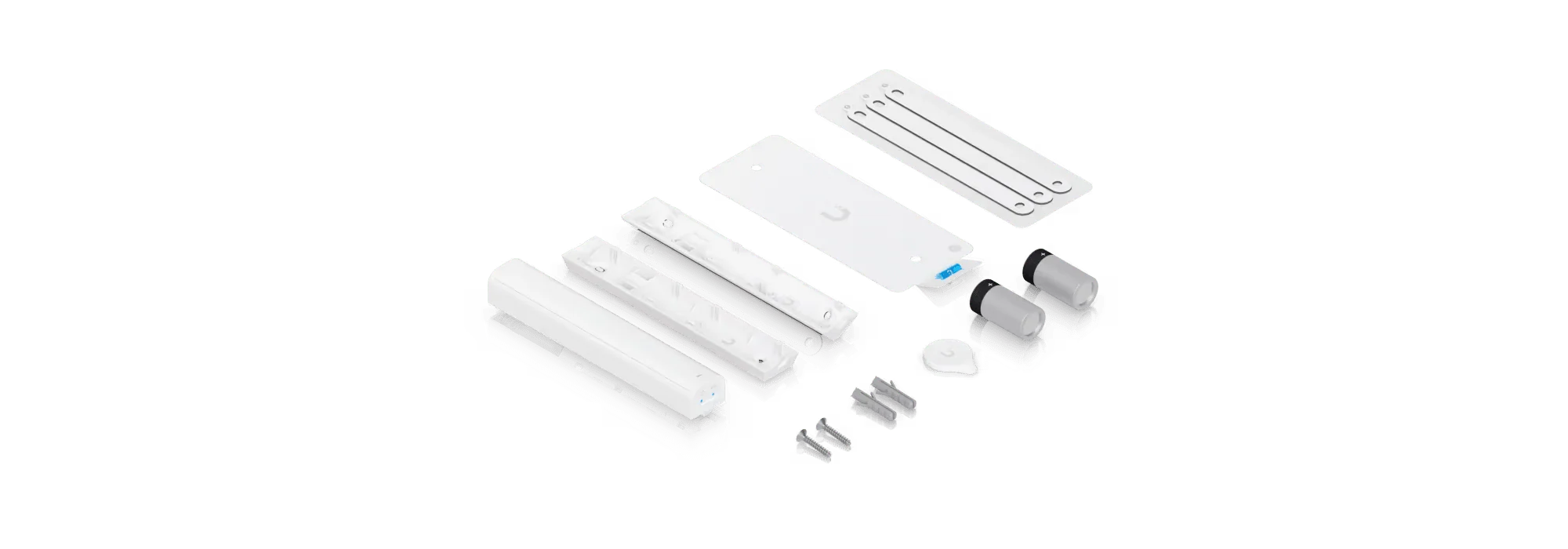

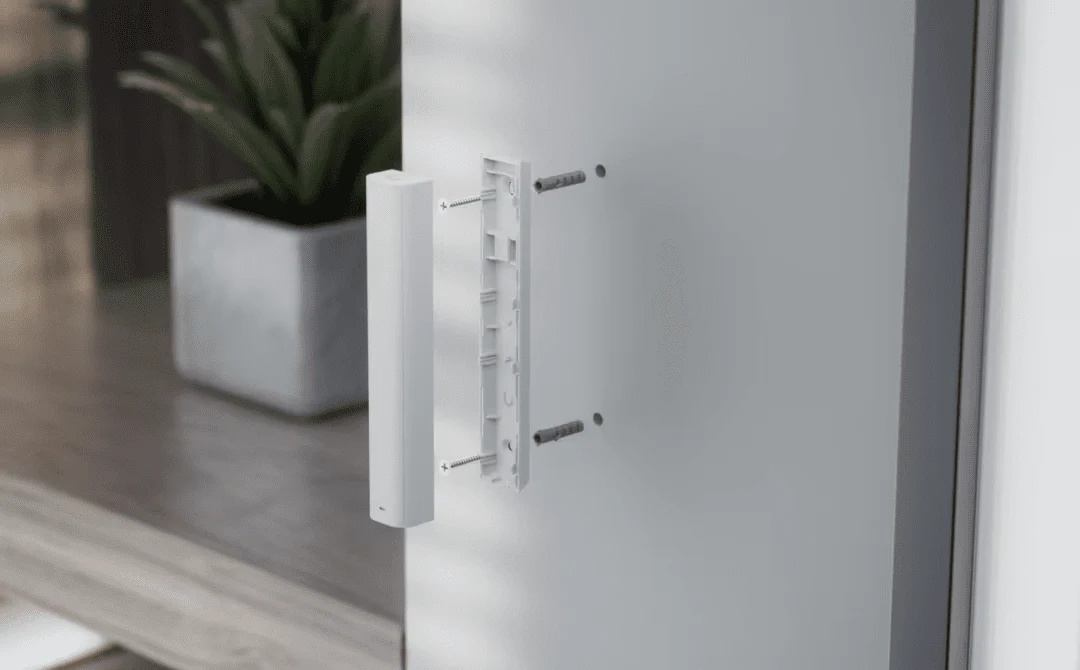

• Adhesive and screw mounting included
• Dimensions with wall mount 134.5 × 22.5 × 24.8 mm
• Dimensions with corner mount 134.5 × 22.5 × 27.9 mm

Power and Environmental Specifications

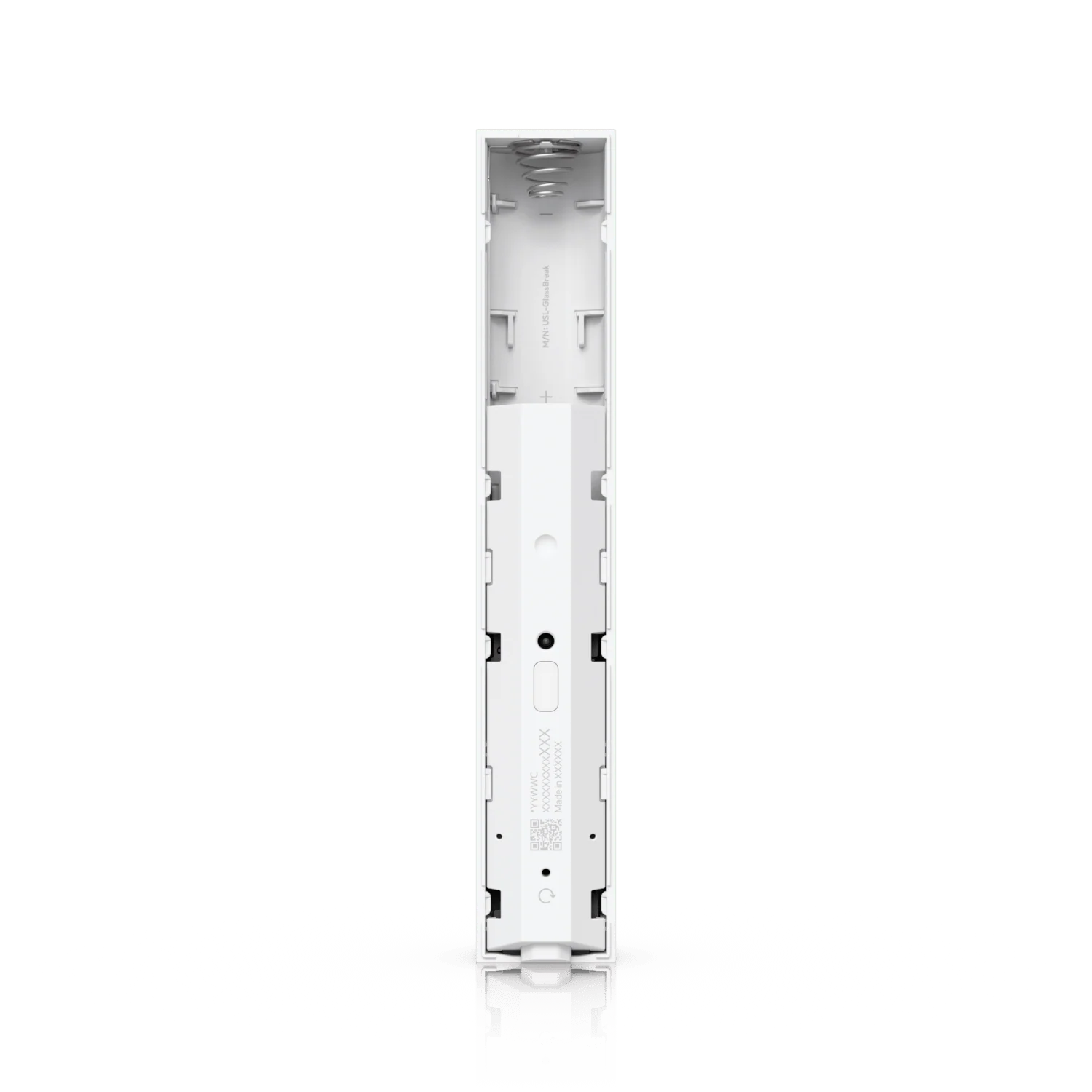

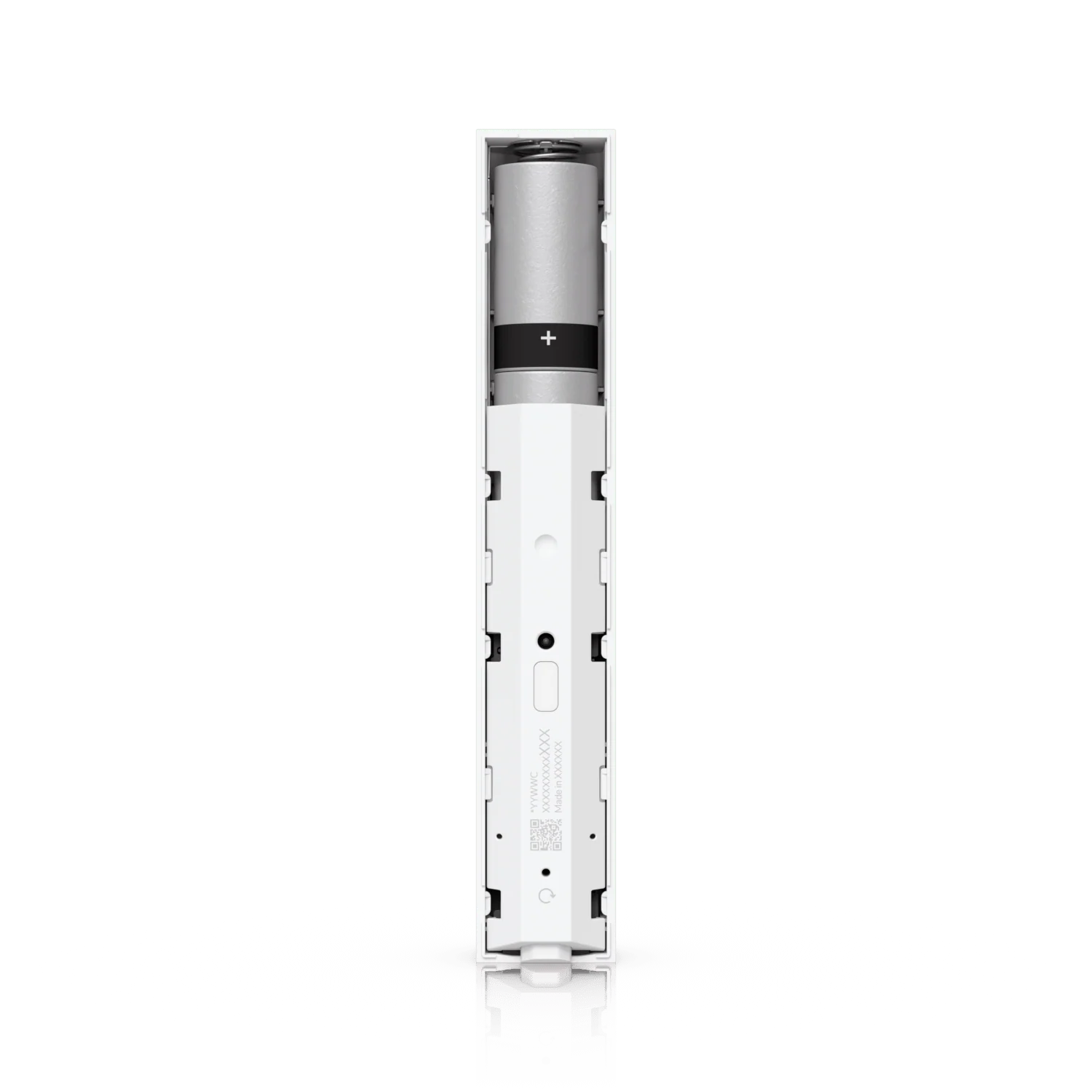

• Powered by two CR123A lithium batteries
• Supported voltage 3V
• Maximum power consumption 0.2 W
• Operating temperature 0 °C to 40 °C
• Operating humidity 10 to 90 percent noncondensing
• Polycarbonate enclosure and mount

Summary / Conclusion

Ubiquiti USL-GlassBreak SuperLink Glass Break Sensor provides long-range acoustic glass break detection combined with PIR motion sensing for enhanced perimeter security. With up to 2 km SuperLink connectivity, battery-powered operation, and UniFi Protect integration, it enables scalable intrusion detection across commercial and industrial environments.
