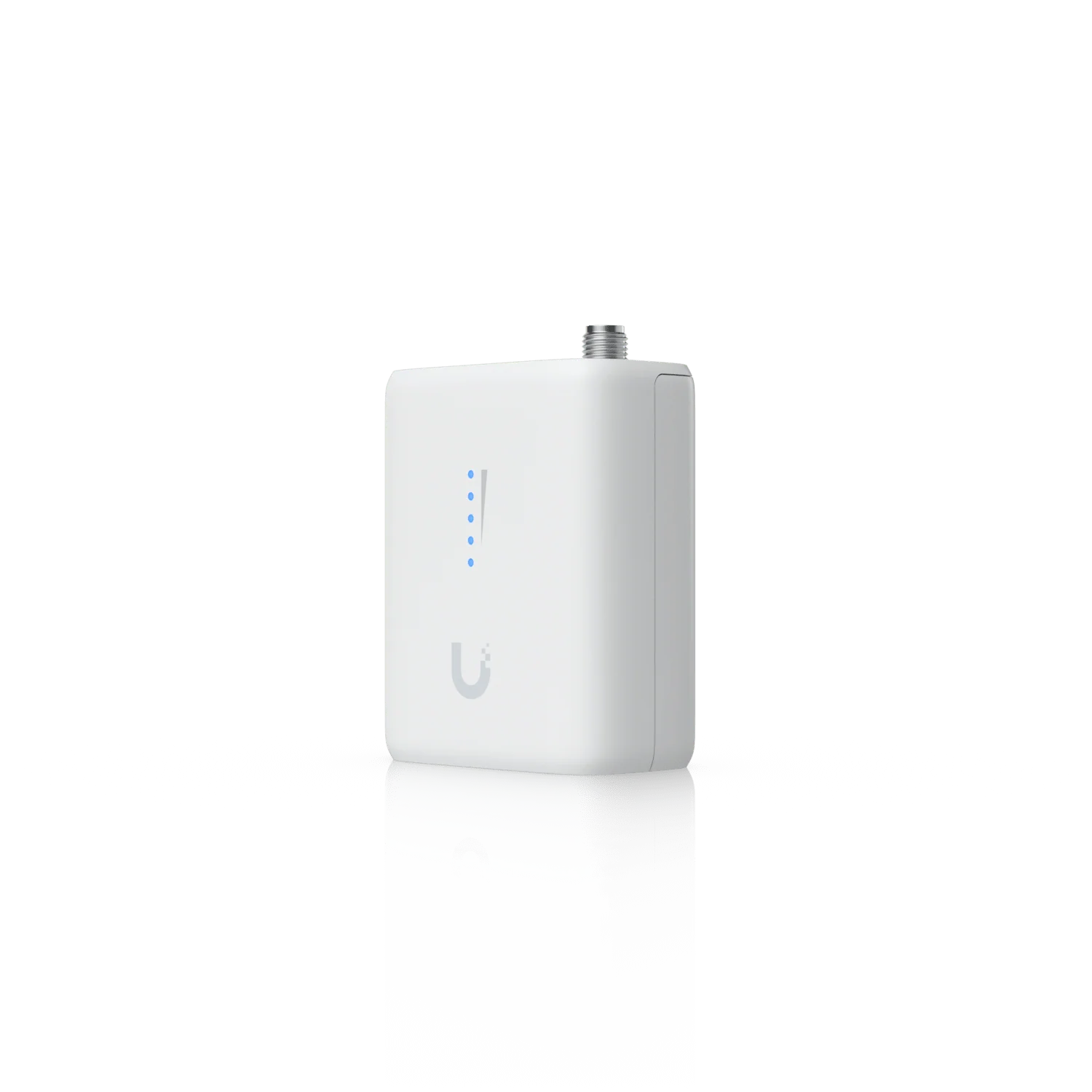

Ubiquiti UDB-IoT Device Bridge IoT

Compact Wireless Bridging for IoT Device Connectivity

Built for streamlined IoT integration, this ultra-compact wireless bridge connects wired IoT devices into a UniFi WiFi environment with flexible power and mounting options. The Ubiquiti UDB-IoT Device Bridge IoT supports UniFi WiFi Auto-Link, wall or DIN rail installation, and simple deployment through USB Type-C or DC power.

Highlights

Ultra-Compact IoT Bridge Design

• Small device footprint for space-limited installations
• Designed for IoT devices requiring wireless network bridging
• Supports wall and DIN rail mounting

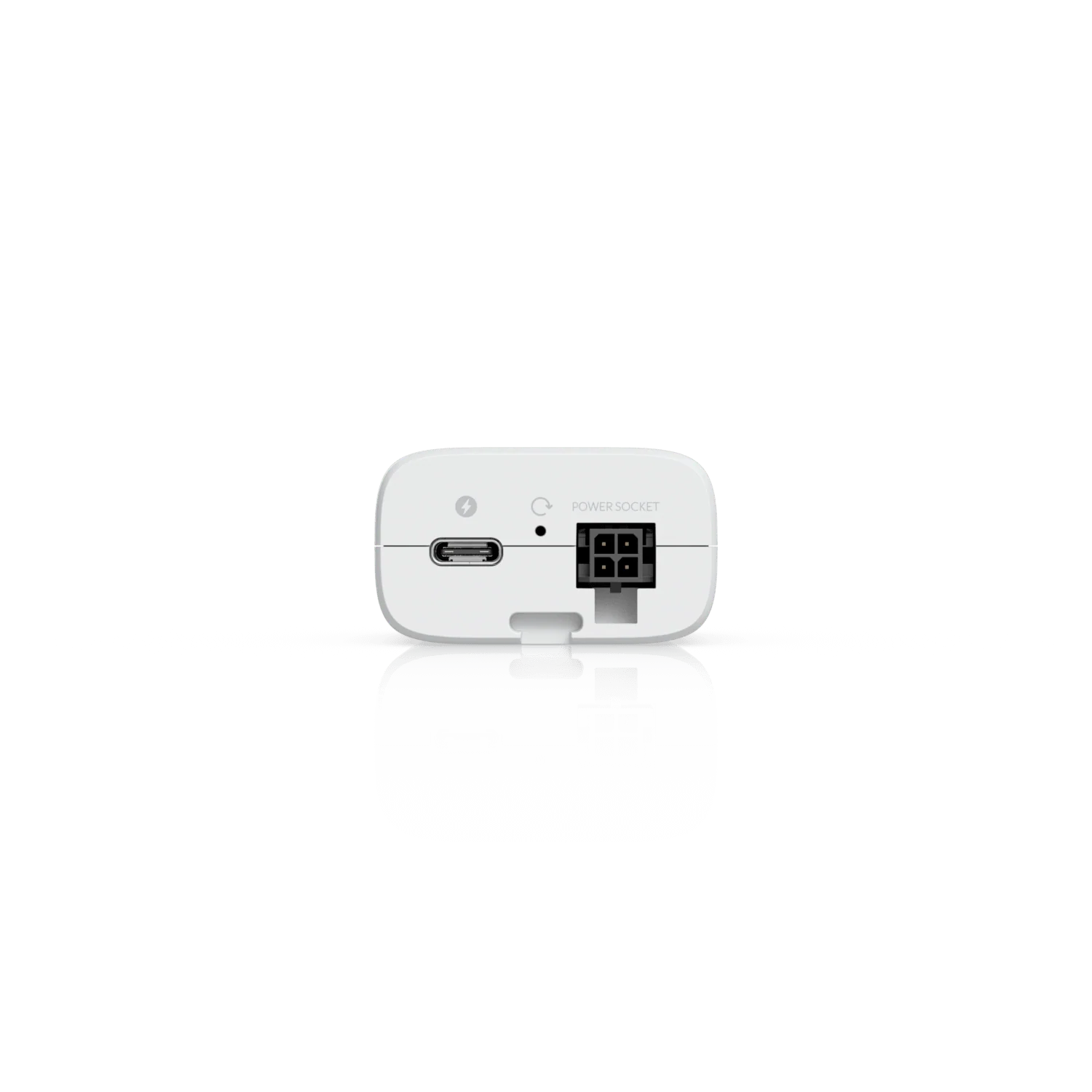

Flexible Power Options

• USB Type-C power at 5V DC, 1A
• 4-pin DC socket supports 9 to 30V DC
• Maximum power consumption of 2.3 W

2.4 GHz Wireless Connectivity

• WiFi 4 with 2 x 2 spatial streams
• Up to 300 Mbps data rate on 2.4 GHz
• WPA2 AES wireless security always enabled

UniFi Deployment Integration

• Integrated UniFi WiFi Auto-Link
• Managed through WiFi
• Full VLAN functionality available on access points running Early Access firmware

Key Features

Ubiquiti UDB-IoT Device Bridge IoT

• Ultra-compact wireless bridge for IoT devices
• Includes one 10/100M RJ45 port for wired device connectivity
• Supports internal antenna and external omni antenna connection
• Designed for flexible installation in wall or DIN rail environments

Wireless Bridge Performance

• WiFi 4 standard with 2.4 GHz operation
• 2 x 2 MIMO for stable wireless connectivity
• Supports 20 MHz and 40 MHz channel bandwidth
• 20 dBm maximum TX power

Antenna Flexibility

• Internal 4 dBi antenna for compact deployments
• RP-SMA connector for external omni antenna
• External omni antenna gain of 3 dBi
• Device measures 63 x 44.5 x 25.5 mm, or 89 x 44.5 x 25.5 mm with external antenna

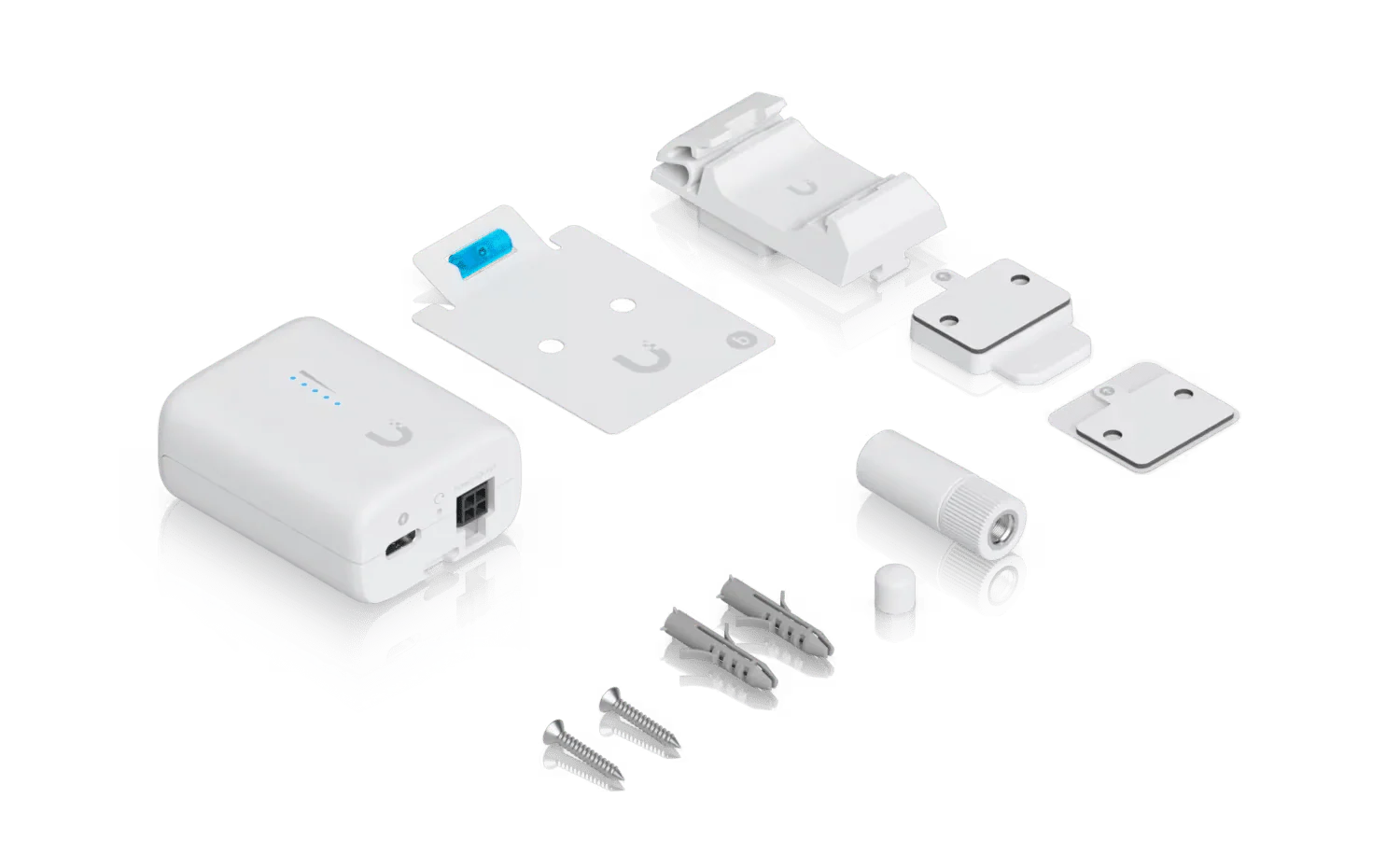

Installation and Mounting

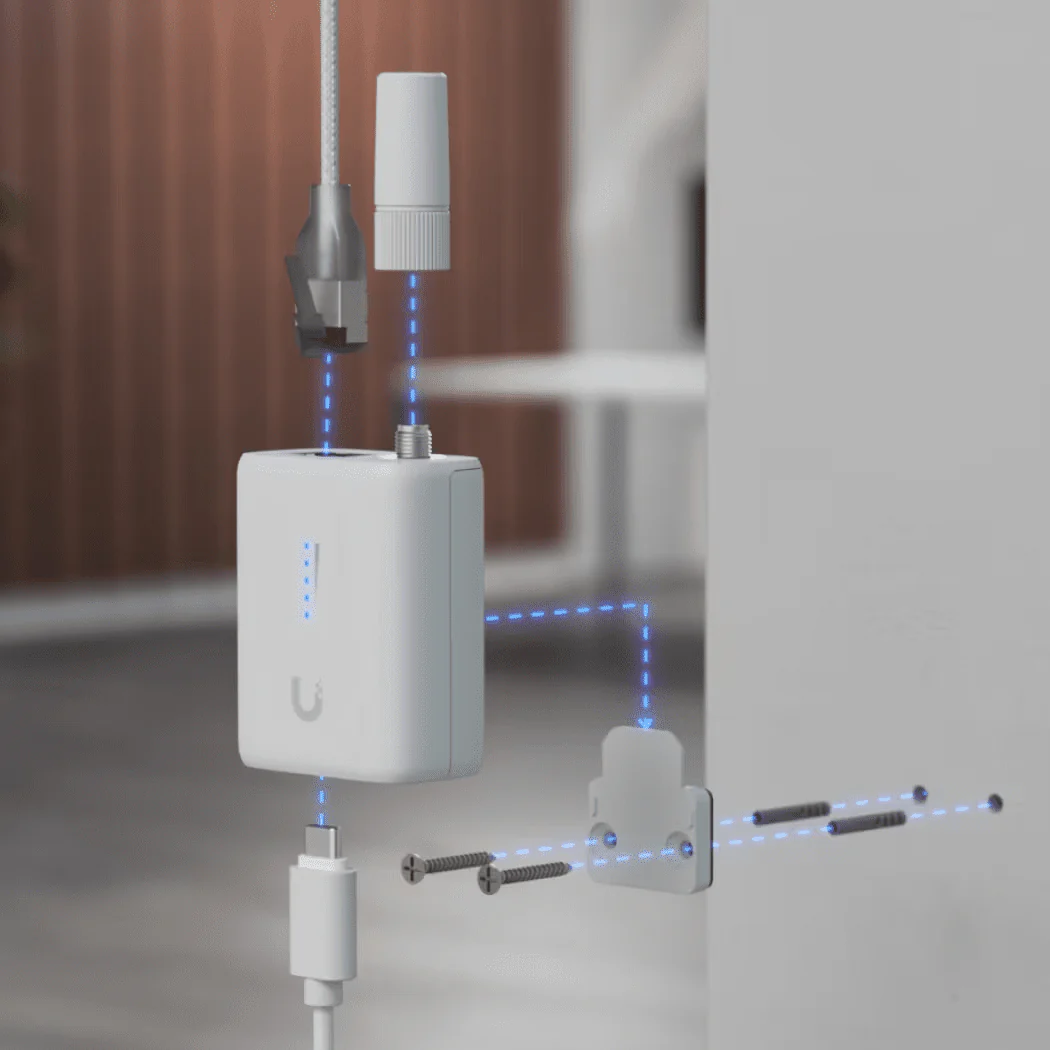

• Wall mounting for fixed installations
• DIN rail mounting for cabinet and industrial-style deployments
• Included mount supports practical placement across different environments
• Lightweight design at 45 g, or 53 g with external antenna

Hardware and Management

• Polycarbonate enclosure and mount material
• Factory reset button for device recovery
• LED indicators for system status and signal visibility
• Supports WiFi management

Compliance and Operating Environment

• Operating temperature: -10 to 50°C
• Operating humidity: 5 to 95 percent non-condensing
• NDAA compliant
• Certified with CE, FCC, and IC

Summary / Conclusion

The Ubiquiti UDB-IoT Device Bridge IoT provides a compact and practical wireless bridge for connecting IoT devices into UniFi environments. With WiFi Auto-Link, flexible USB Type-C or DC power, wall and DIN rail mounting, and antenna options for different installation needs, it is well suited for streamlined IoT connectivity in business, facility, and control system deployments.
