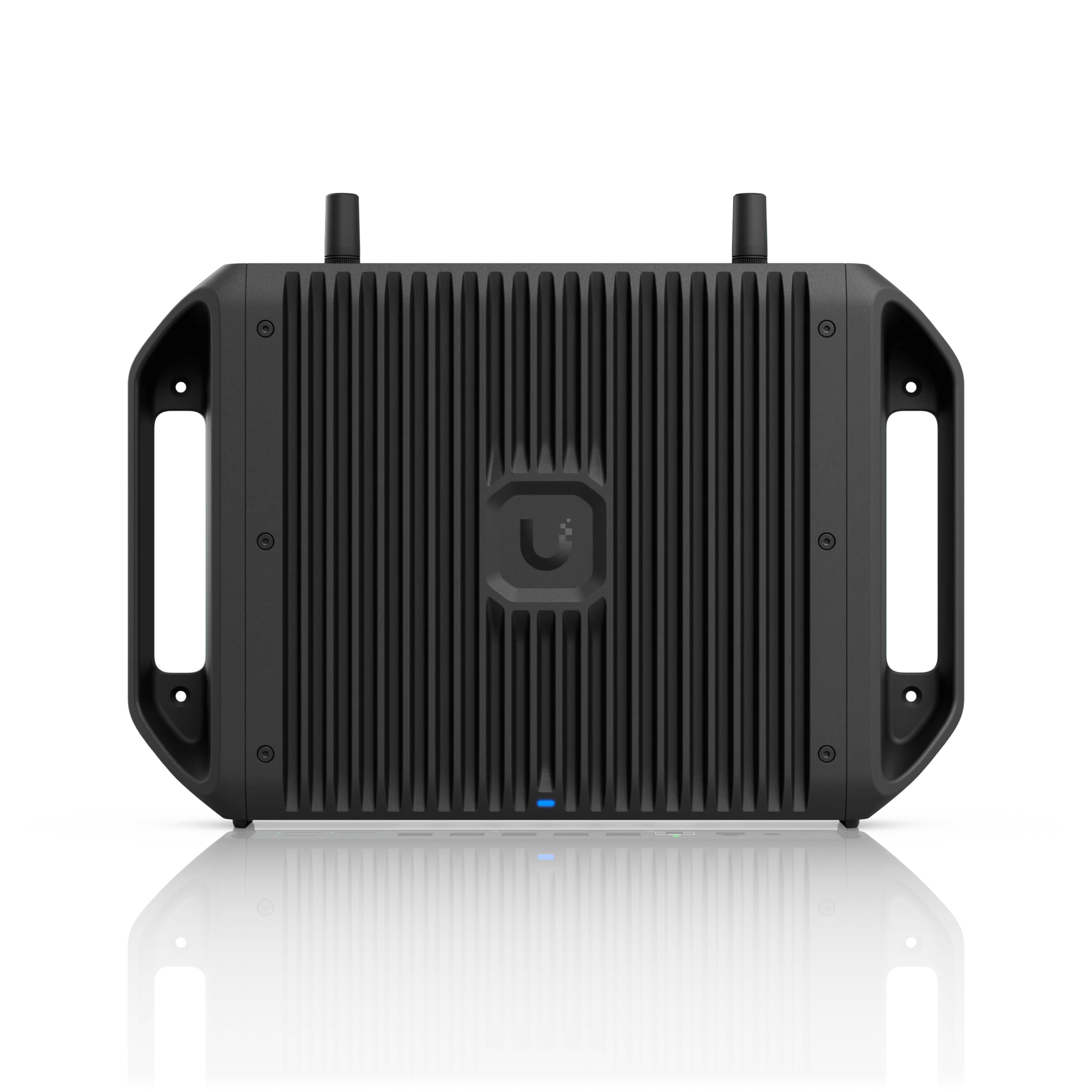

Ubiquiti UCG-Industrial 270W 10GbE UniFi Cloud Gateway Industrial

Industrial 10GbE Gateway Built for Extreme Environments

Engineered for harsh and distributed deployments, this hardened 10GbE cloud gateway combines industrial-grade durability, high-power PoE output, integrated WiFi 7, and full UniFi Application support in a single fanless chassis. Designed for edge, remote, and mission-critical networks where reliability and centralized control are non-negotiable.

Highlights

Industrial-Grade Ruggedization

• Hardened enclosure built for dust, vibration, and temperature fluctuations
• Fanless thermal design for silent, failure-resistant operation
• Operating temperature range from -30 °C to 50 °C
• ESD protection up to ±8 kV air and ±4 kV contact

High-Power PoE and 10GbE Performance

• Up to 90 W PoE+++ per port for high-demand devices
• 10 GbE and 2.5 GbE multi-gigabit interfaces
• Total PoE budget up to 270 W with included 350 W PSU

Integrated WiFi 7 Connectivity

• Dual-band WiFi 7 with 2 × 2 MU-MIMO
• 5 GHz throughput up to 4.3 Gbps

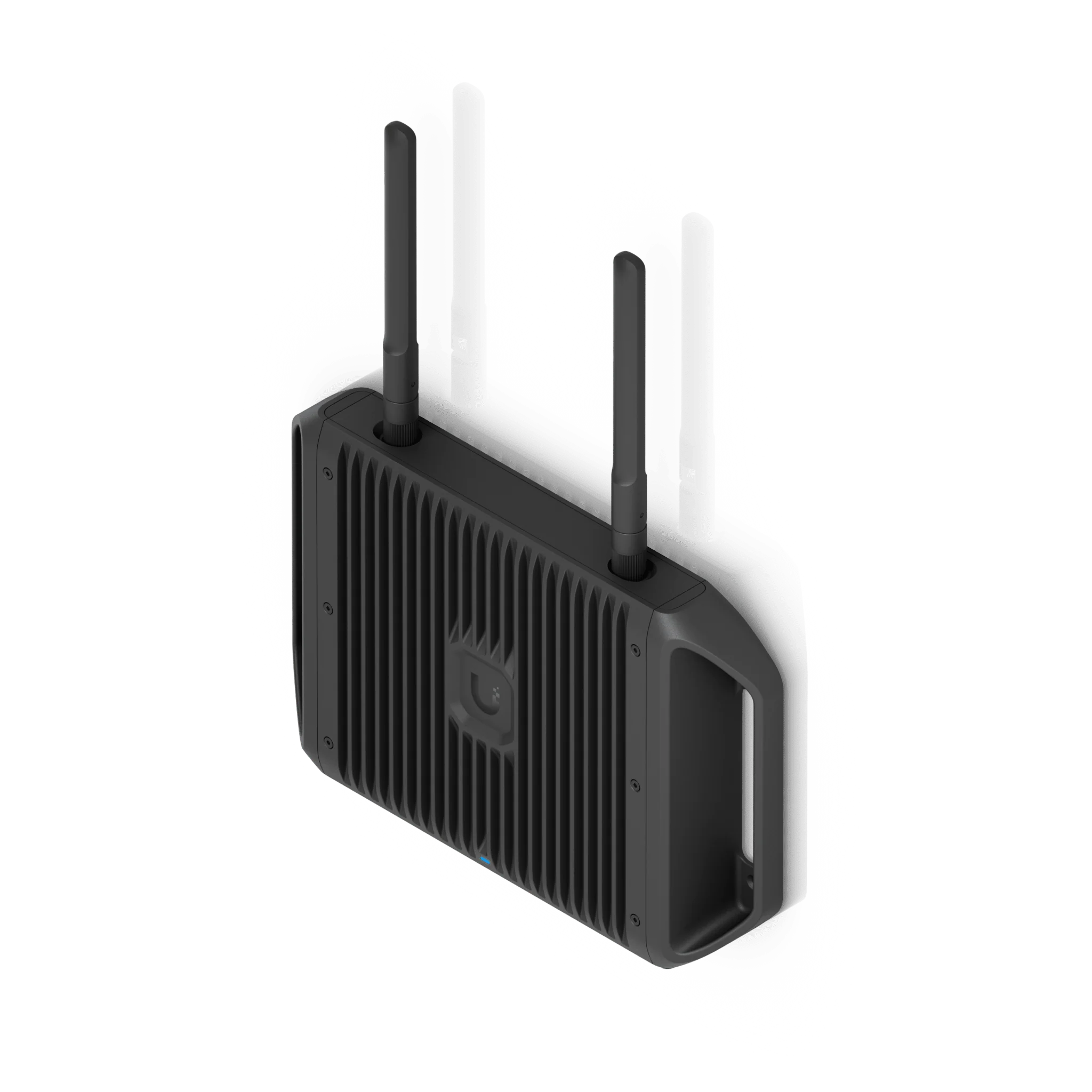

• Flexible external antenna support for unconventional deployments

Key Features

Ubiquiti UCG-Industrial 270W 10GbE UniFi Cloud Gateway Industrial

• Quad-core ARM Cortex-A73 processor at 2.2 GHz
• 3 GB system memory
• Integrated 128 GB microSD for UniFi Protect NVR support
• Manages 50+ UniFi devices and 500+ concurrent users

Advanced Routing and Security

• 5 Gbps IDS and IPS throughput
• Stateful and Layer 7 application-aware firewall
• 55,000+ IDS and IPS signatures with CyberSecure
• VLAN and subnet-based segmentation
• License-free SD-WAN and Site Magic VPN

Multi-WAN and VPN Capabilities

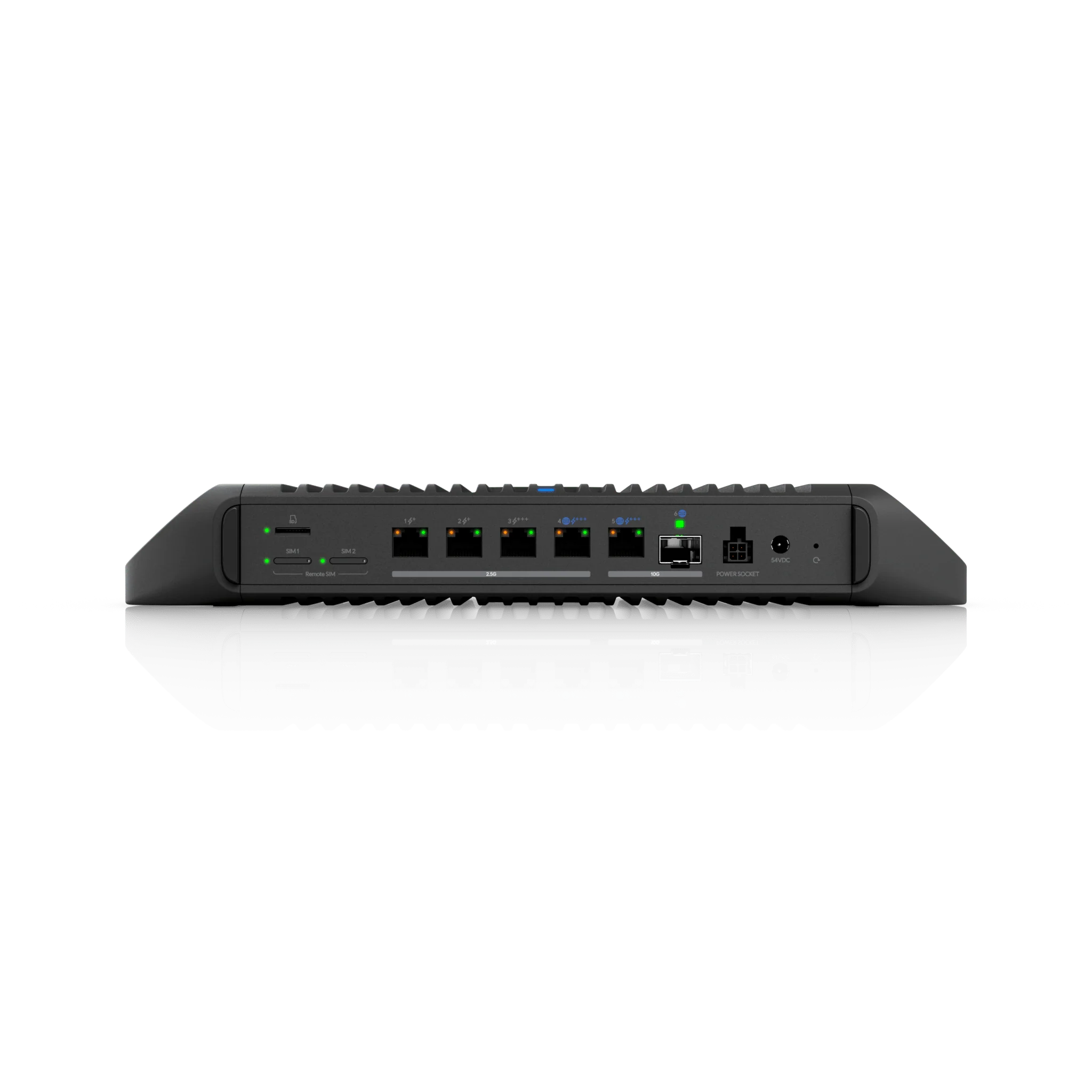

• Default WAN ports include 10G SFP+, 10 GbE RJ45, and 2.5 GbE RJ45
• Multi-WAN load balancing and failover
• VPN server support including WireGuard, OpenVPN, L2TP, and Teleport
• Dynamic routing with OSPF

Industrial Power Flexibility

• Powered via included 54V DC 350 W adapter
• Supports 48V ATX power input
• 270 W PoE budget with DC input
• 75 W PoE budget with ATX power

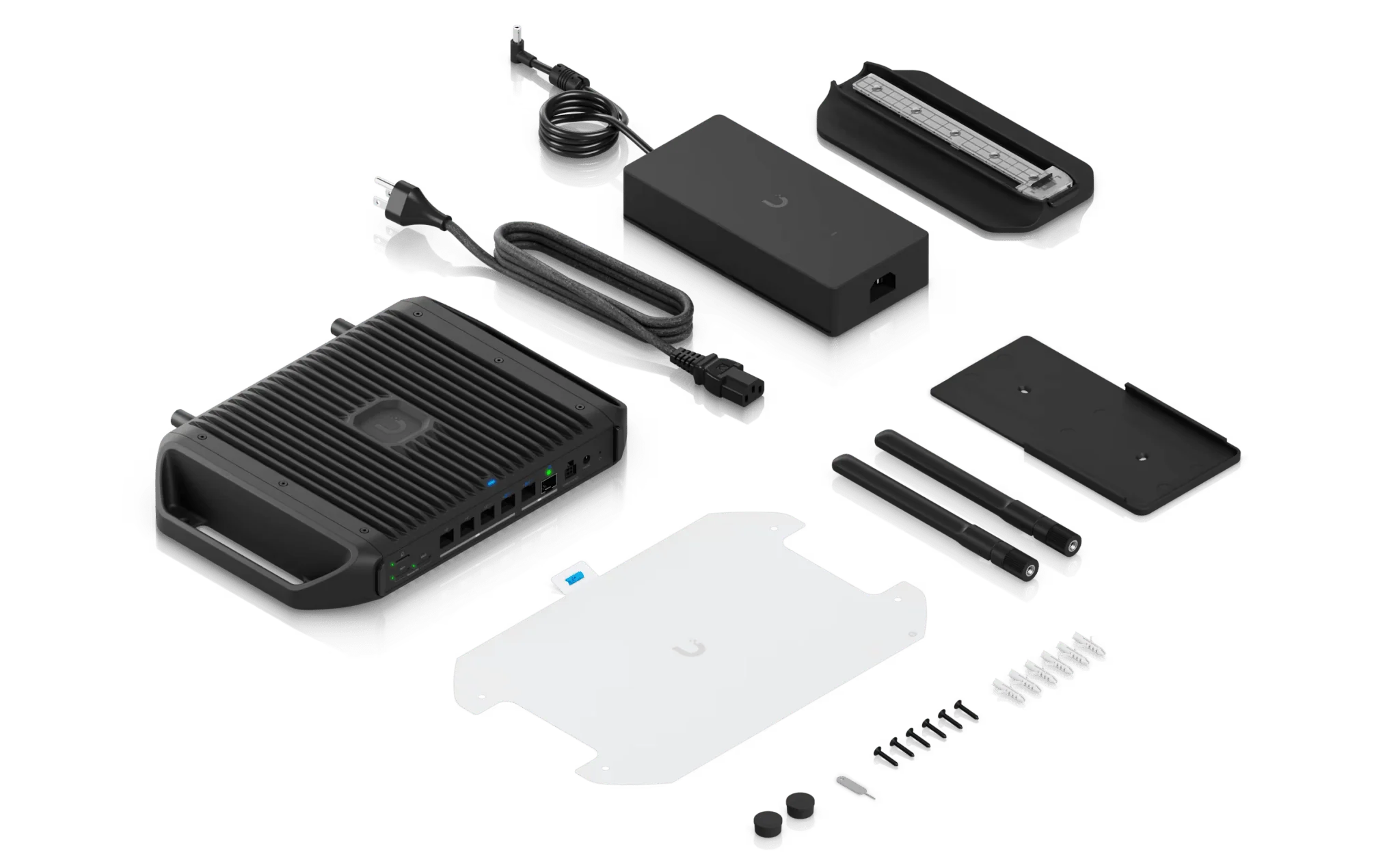

Modular Deployment Architecture

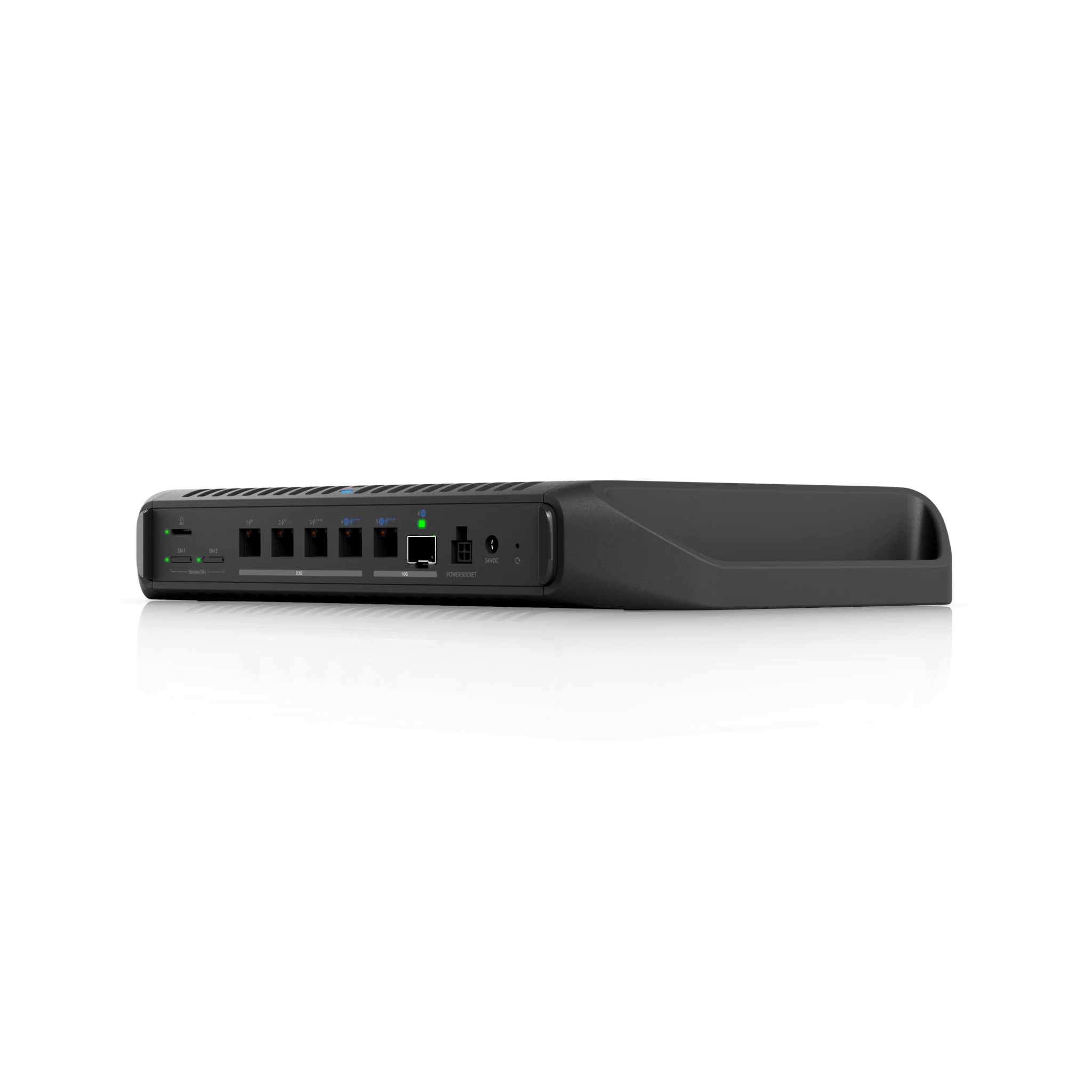

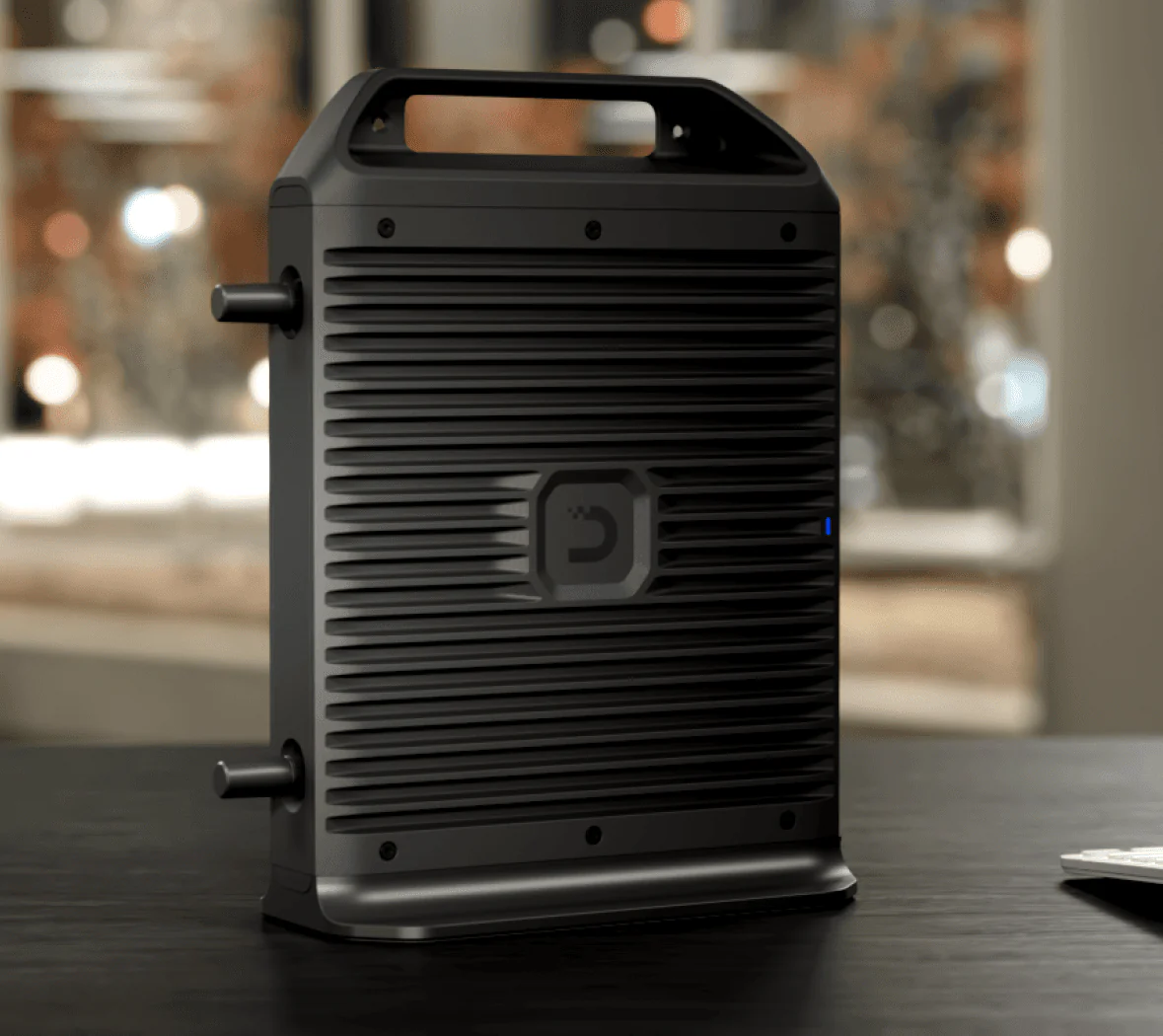

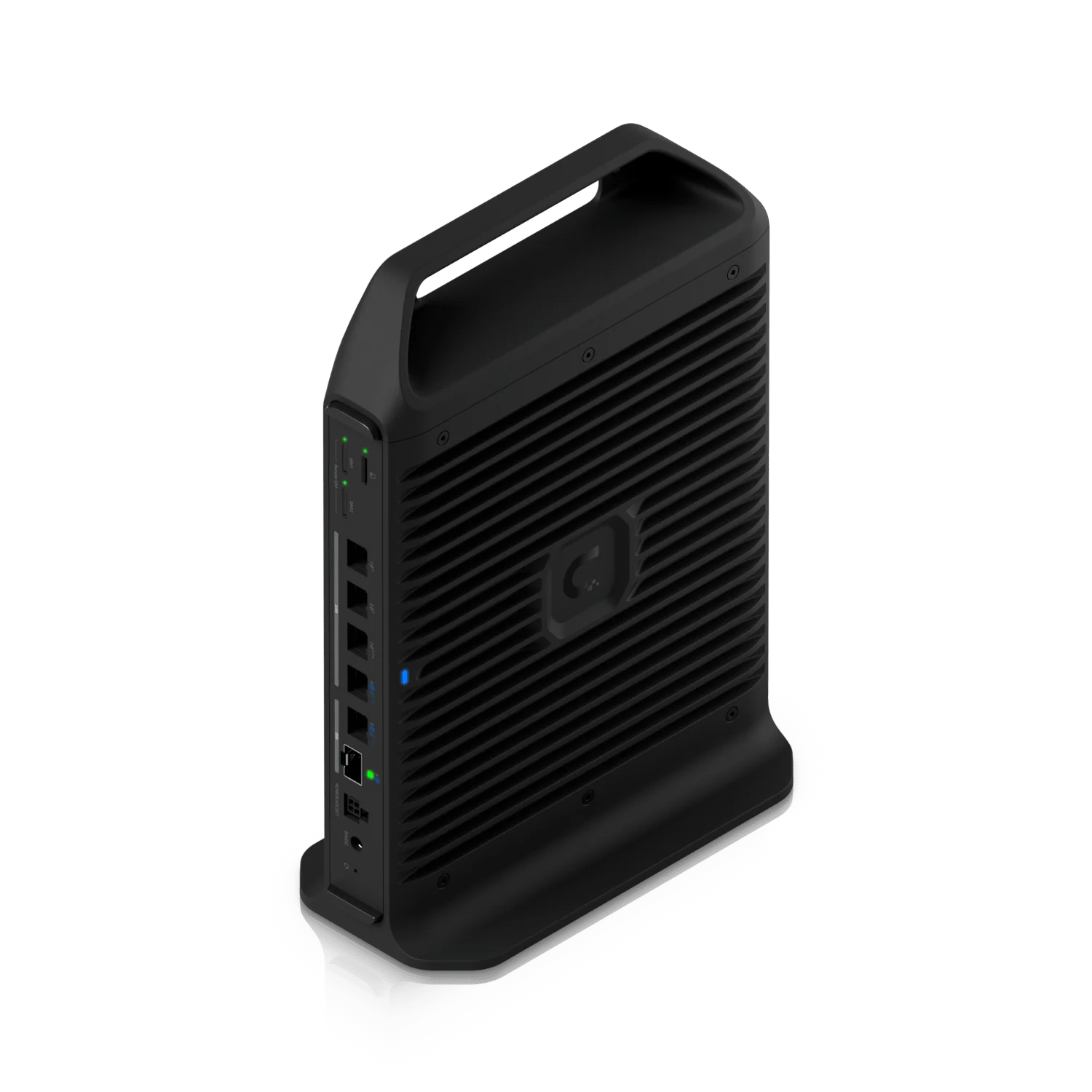

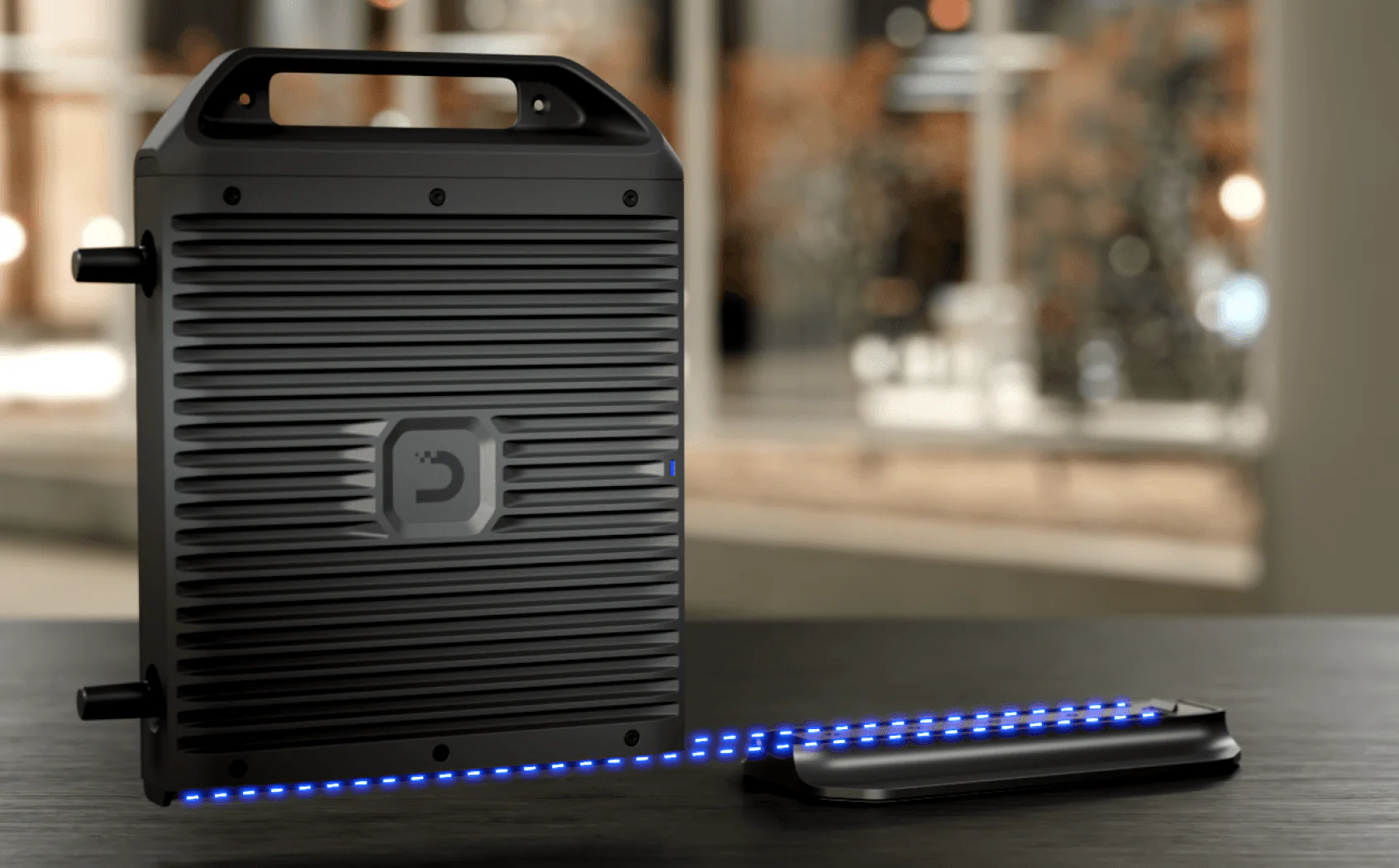

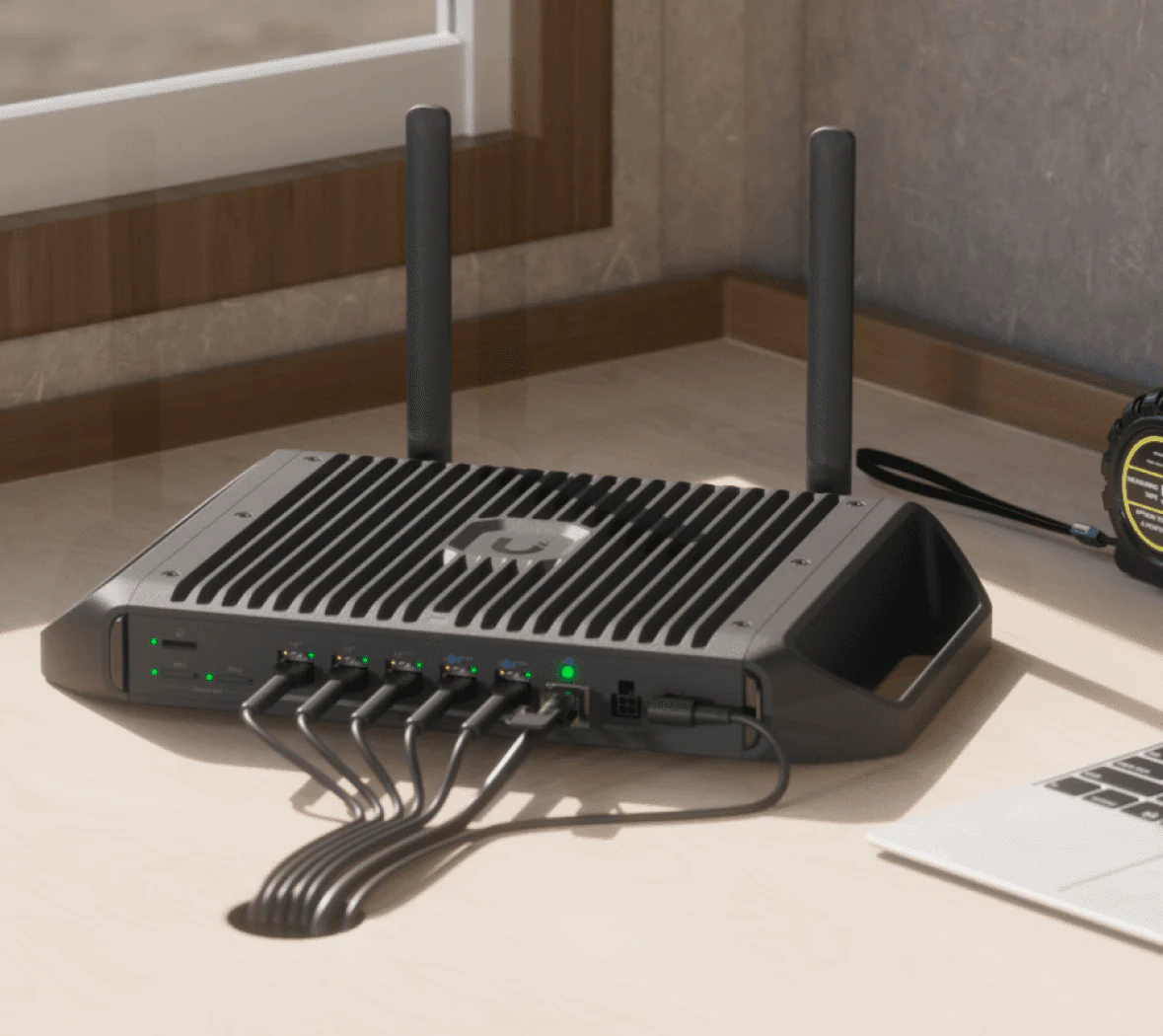

• Flat or vertical desktop placement

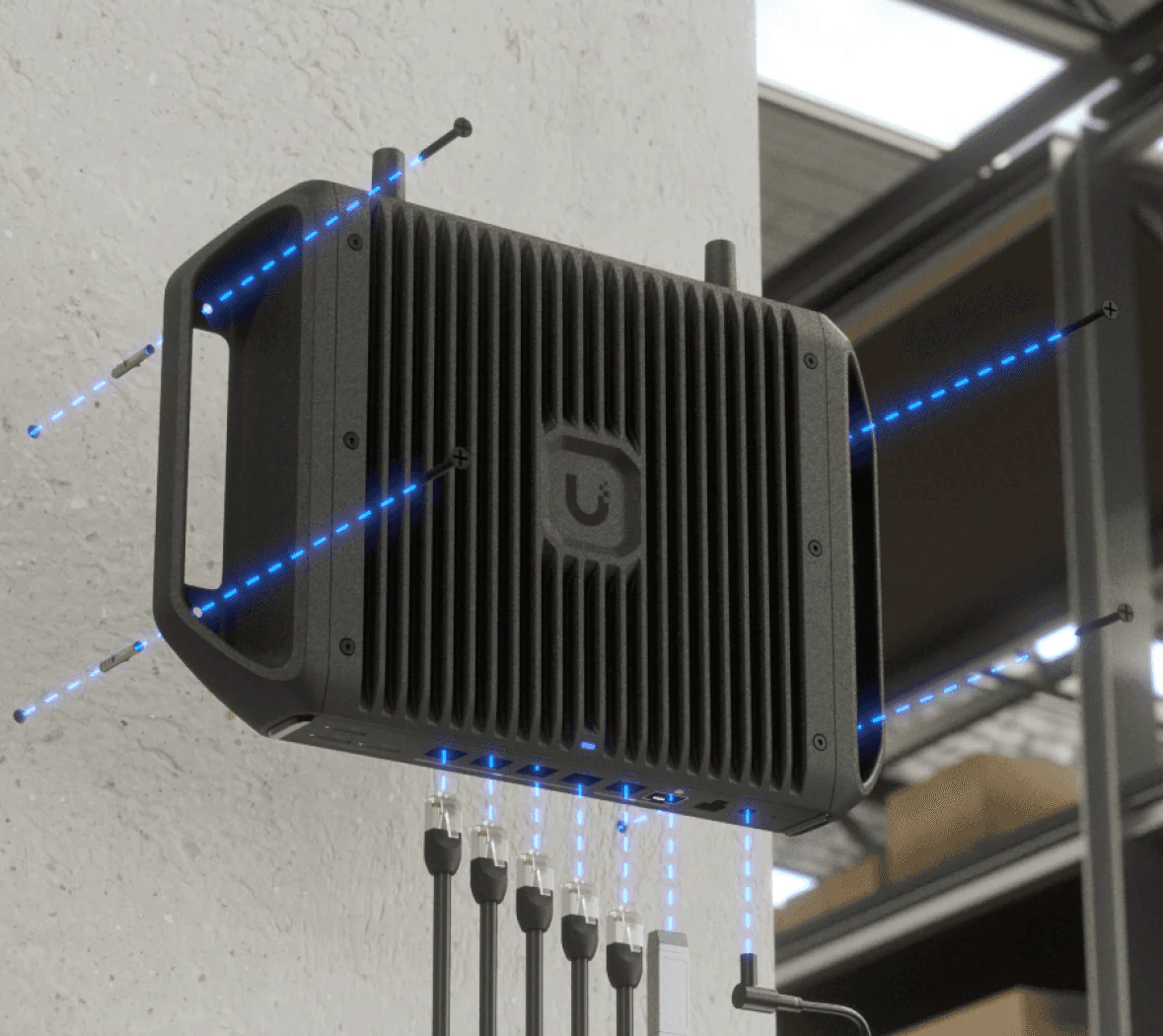

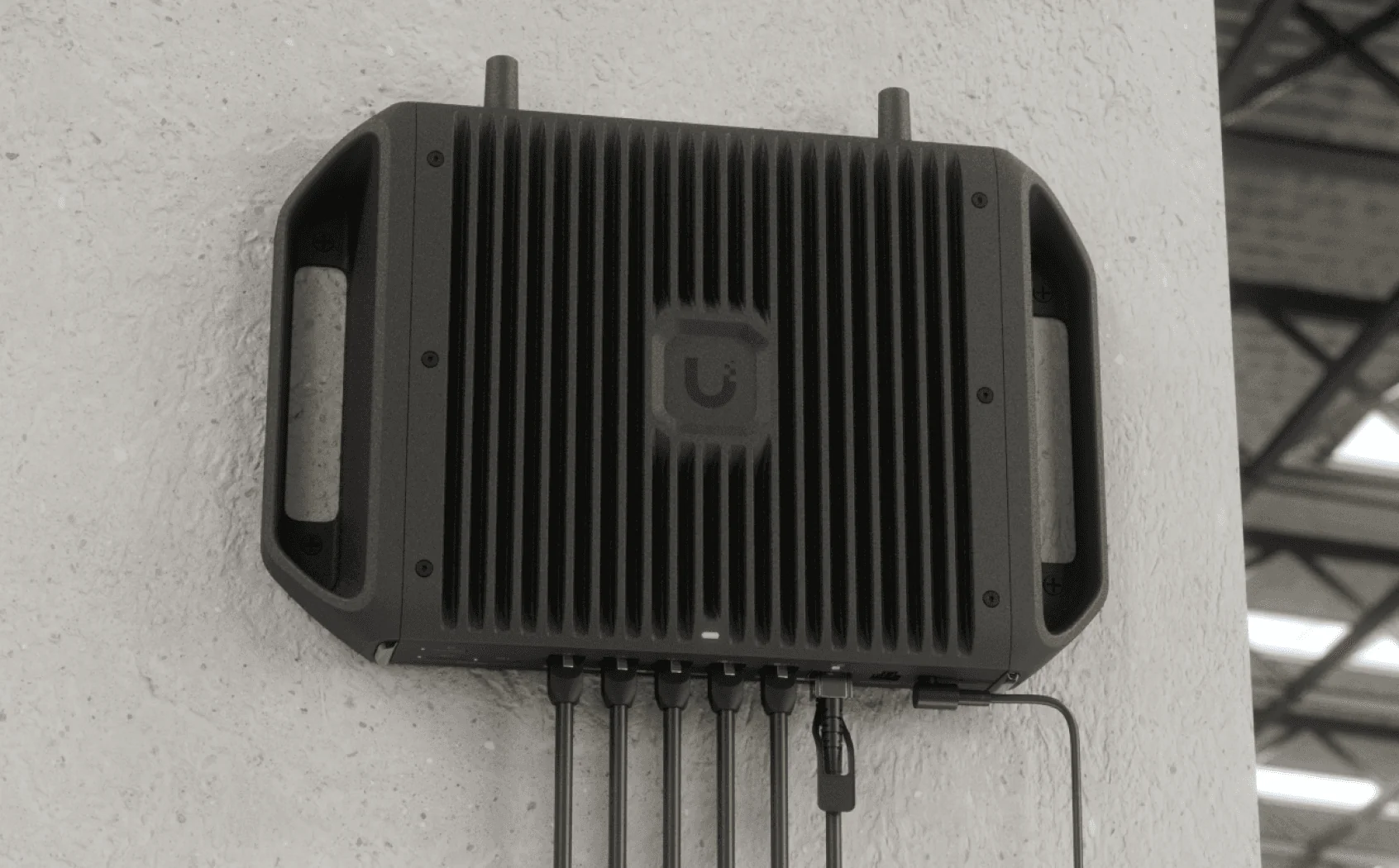

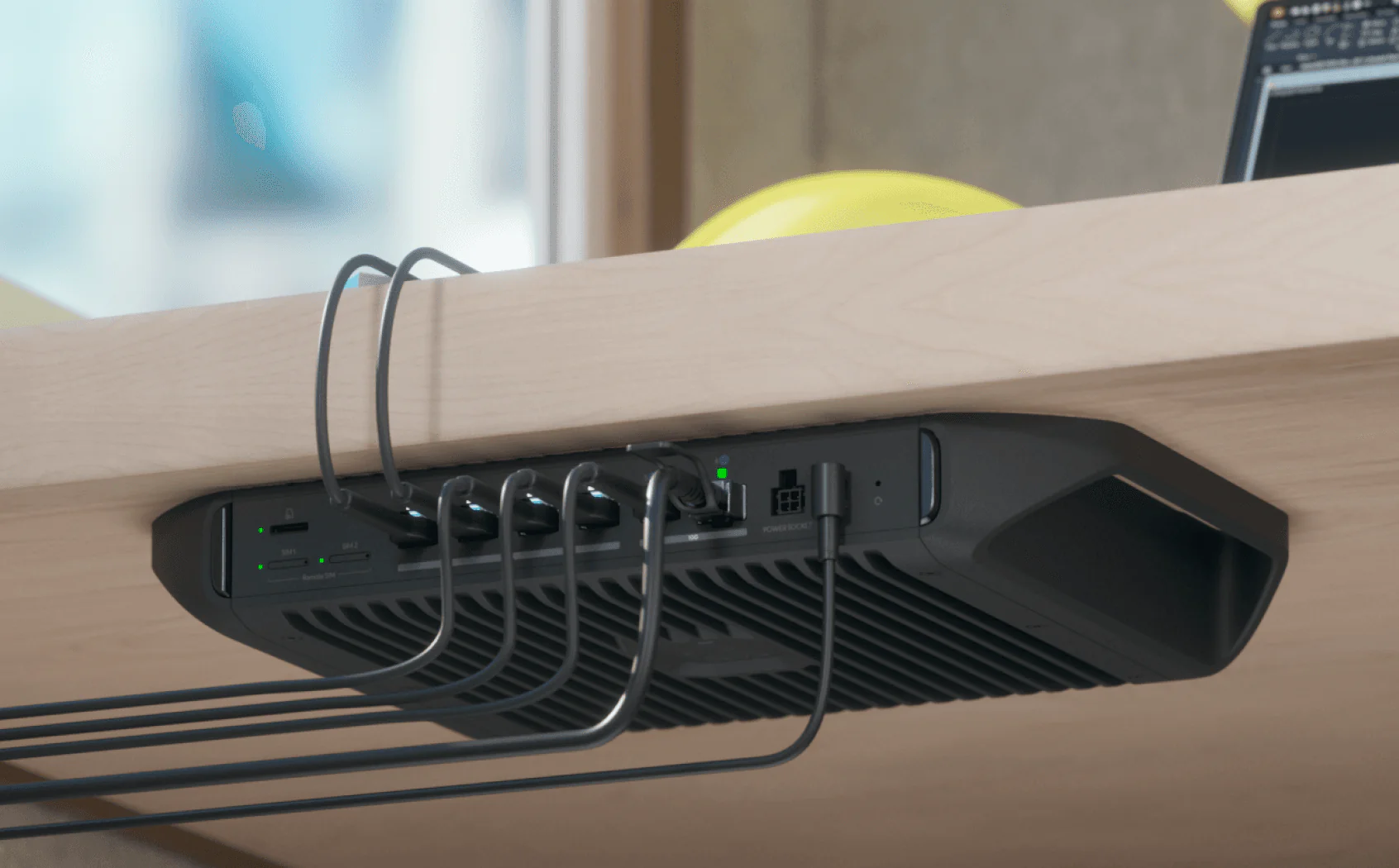

• Under-desk and wall mounting support
• Optional 19-inch rack mount with integrated PSU tray
• Tool-less Transformable Deployment System

Cellular and Remote Connectivity

• Remote SIM slot for use with UniFi 5G Max Outdoor
• Additional failover with UniFi LTE Backup
• Ethernet and Bluetooth management

Physical Specifications

• Dimensions: 307.9 × 203.5 × 43.7 mm
• Weight: 2.4 kg
• Coverage area: 115 m²
• NDAA compliant

Summary / Conclusion

Ubiquiti UCG-Industrial 270W 10GbE UniFi Cloud Gateway Industrial delivers enterprise routing, high-power PoE, WiFi 7 connectivity, and full UniFi application hosting in a ruggedized industrial platform. With flexible deployment options, advanced security, and centralized Site Manager orchestration, it serves as a resilient operational core for distributed facilities, edge environments, and mission-critical industrial networks.
