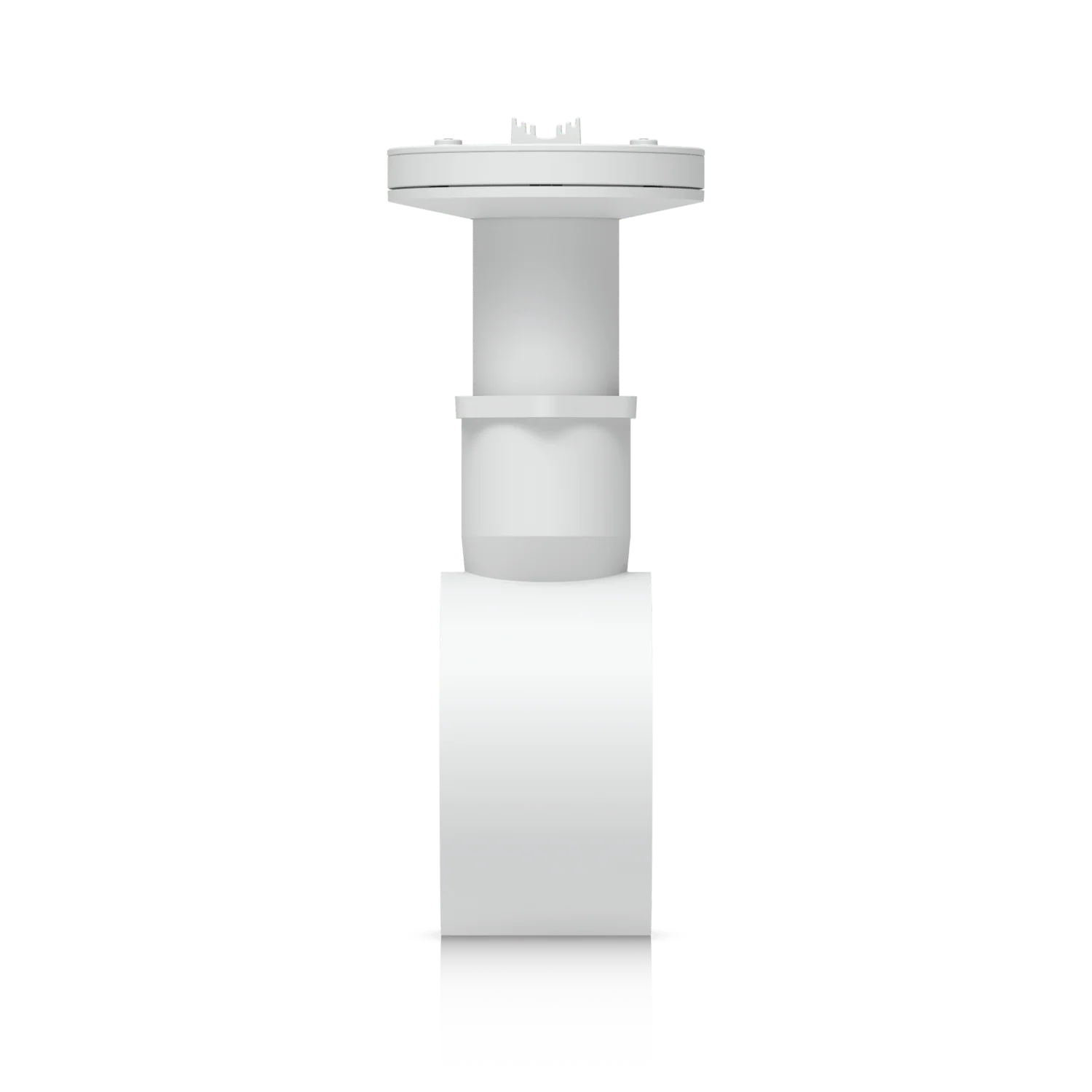

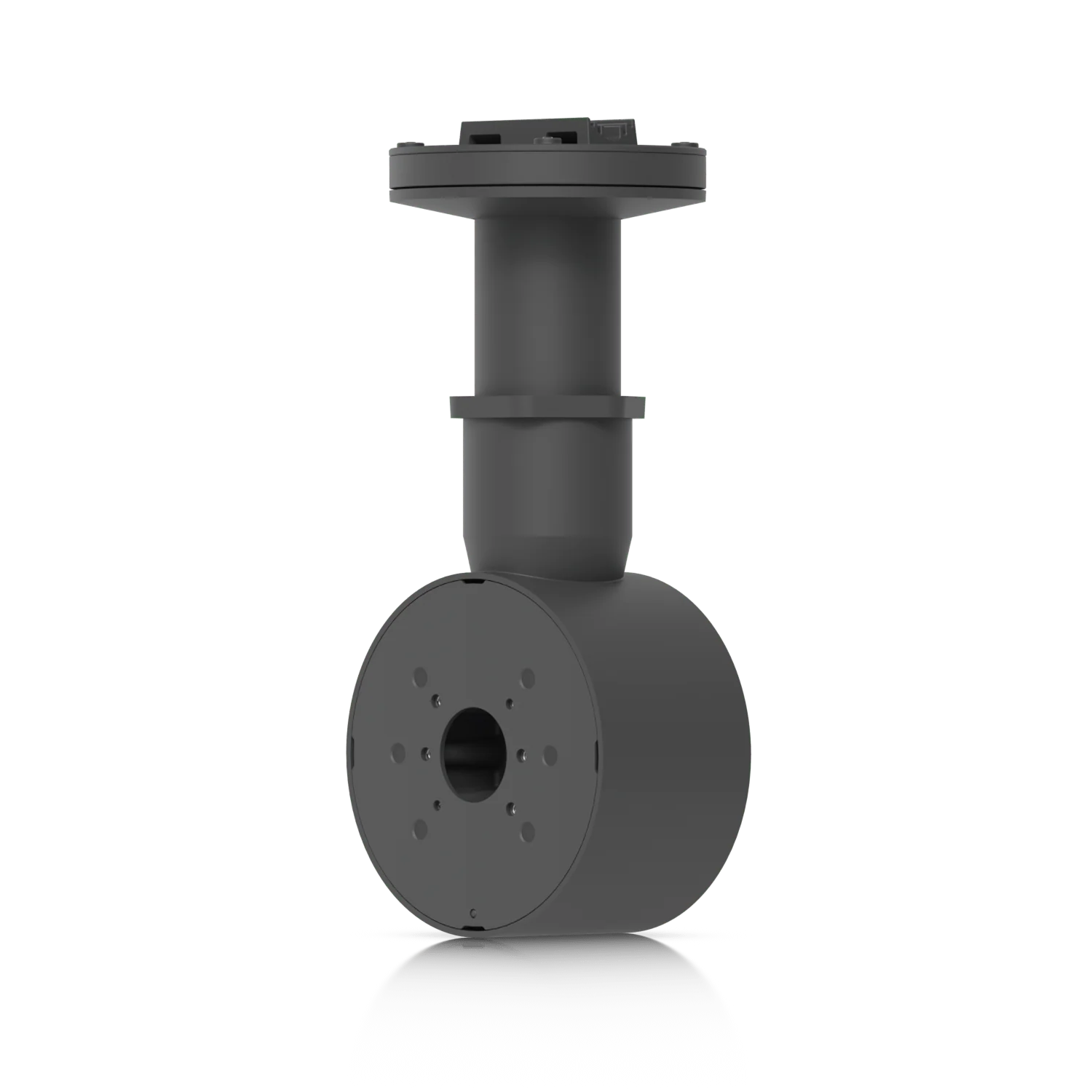

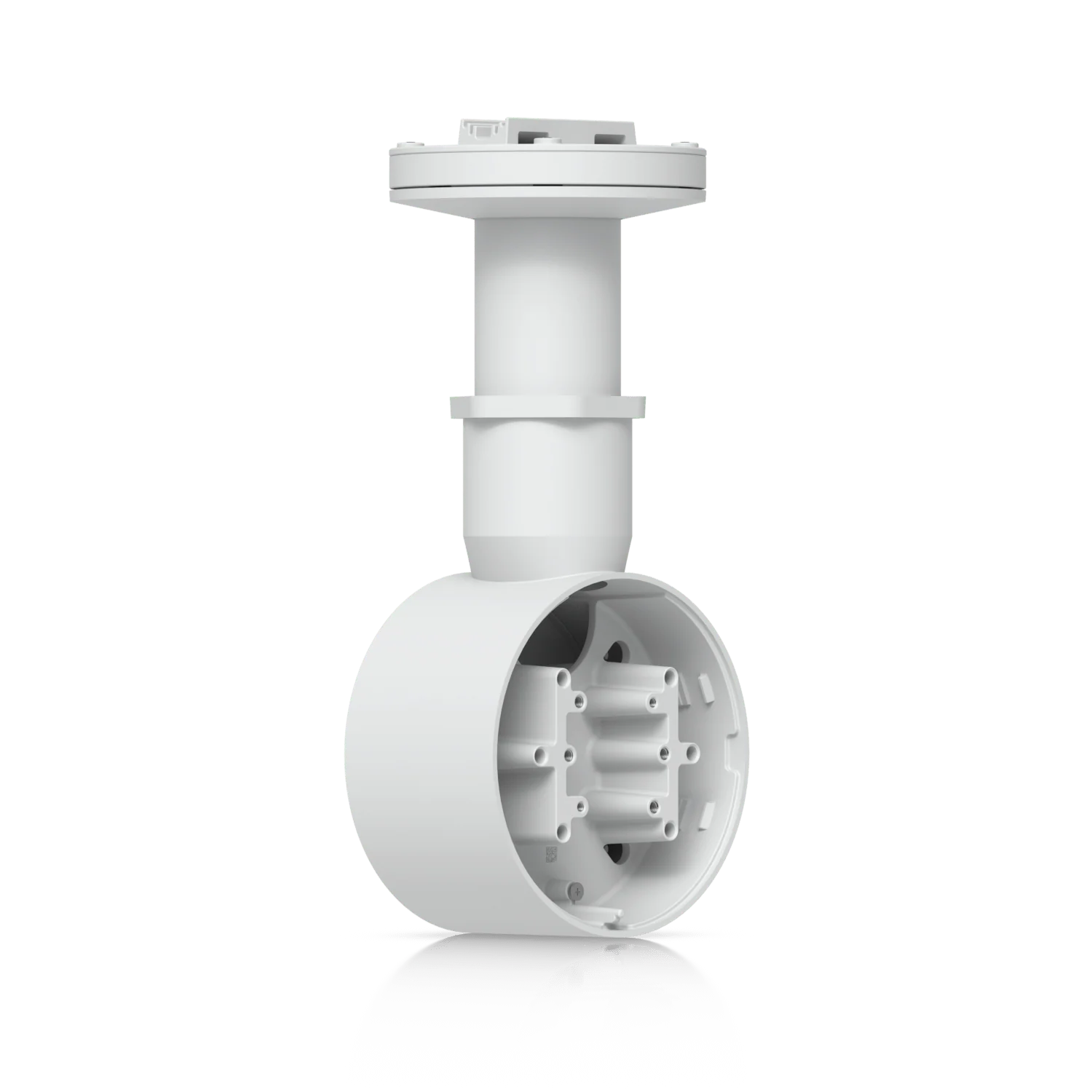

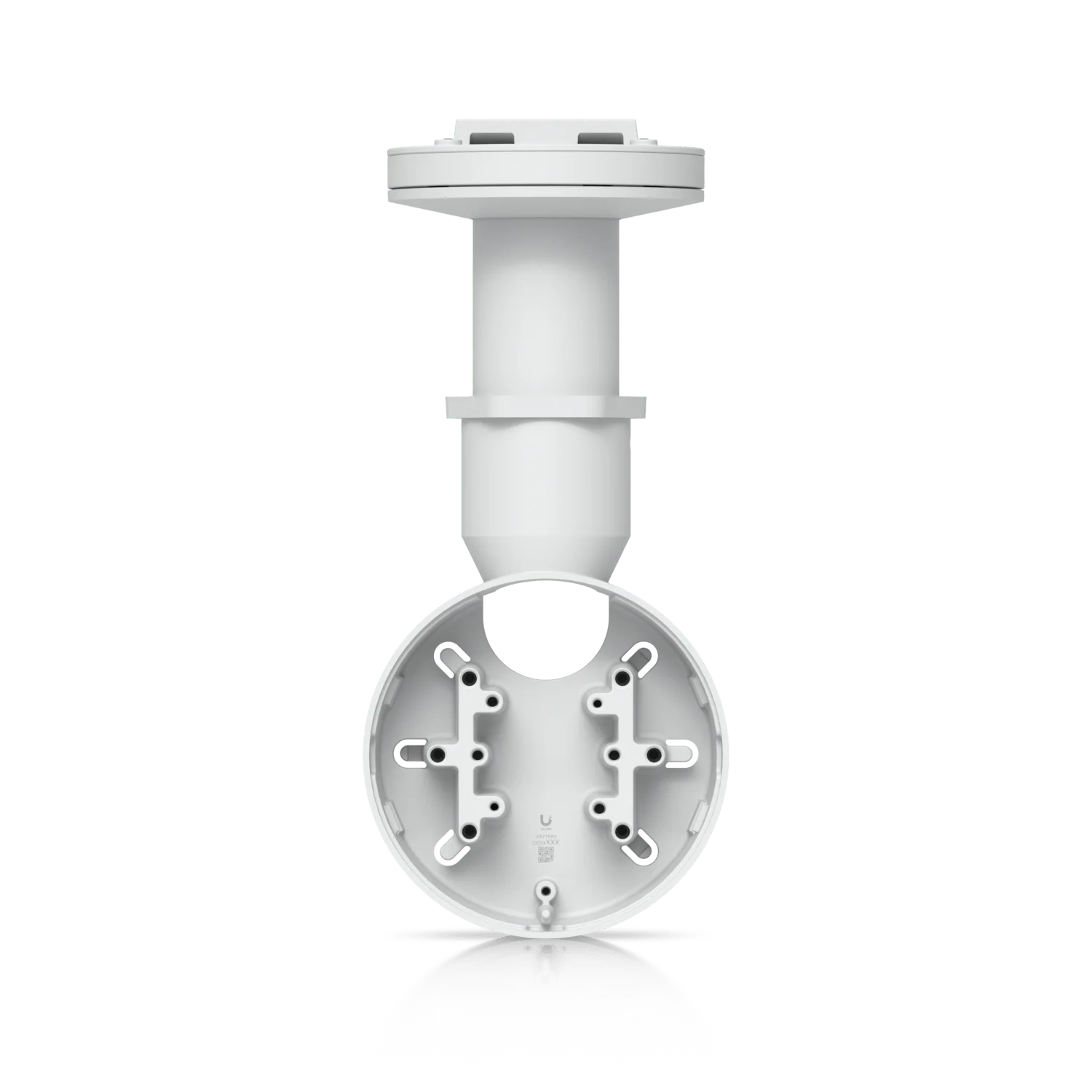

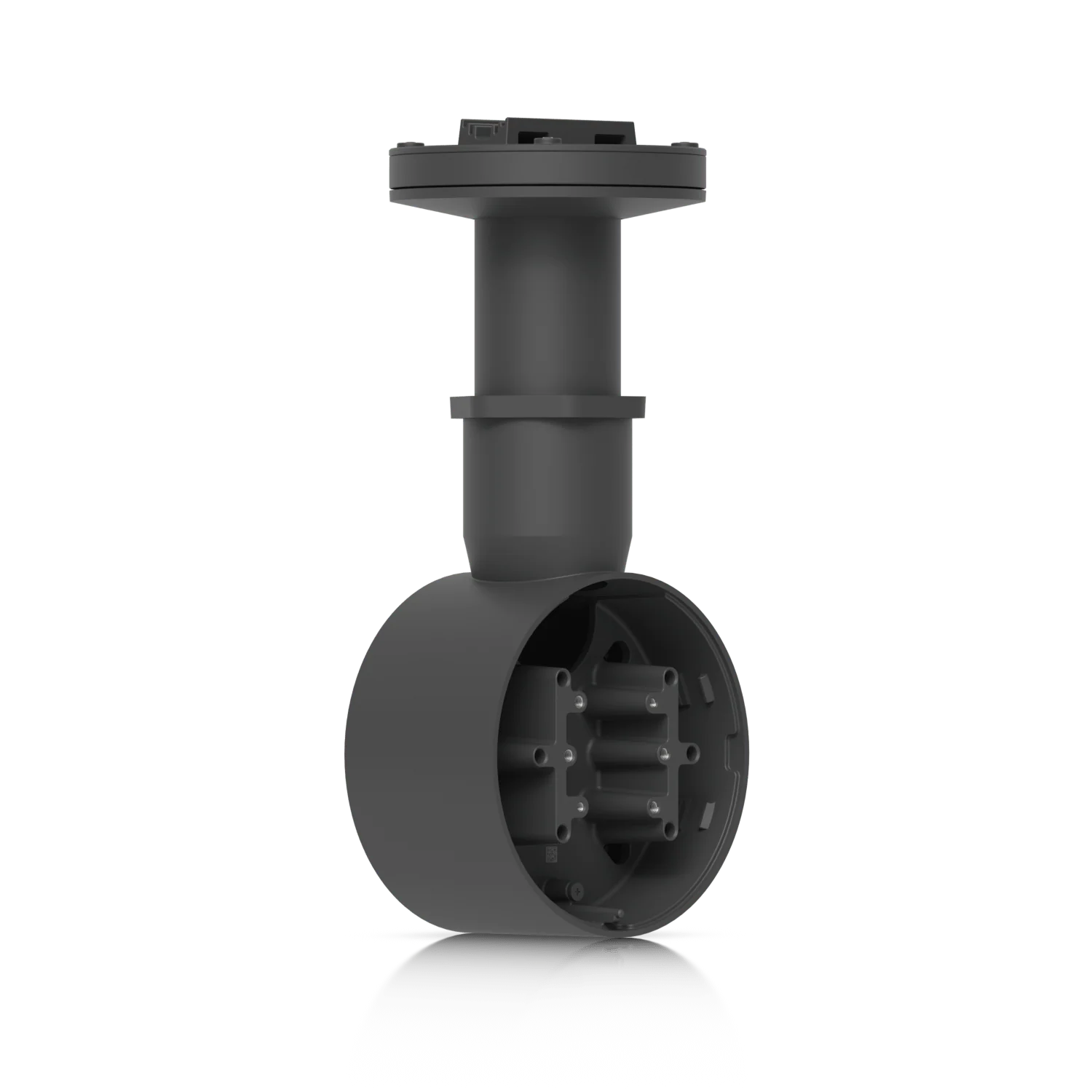

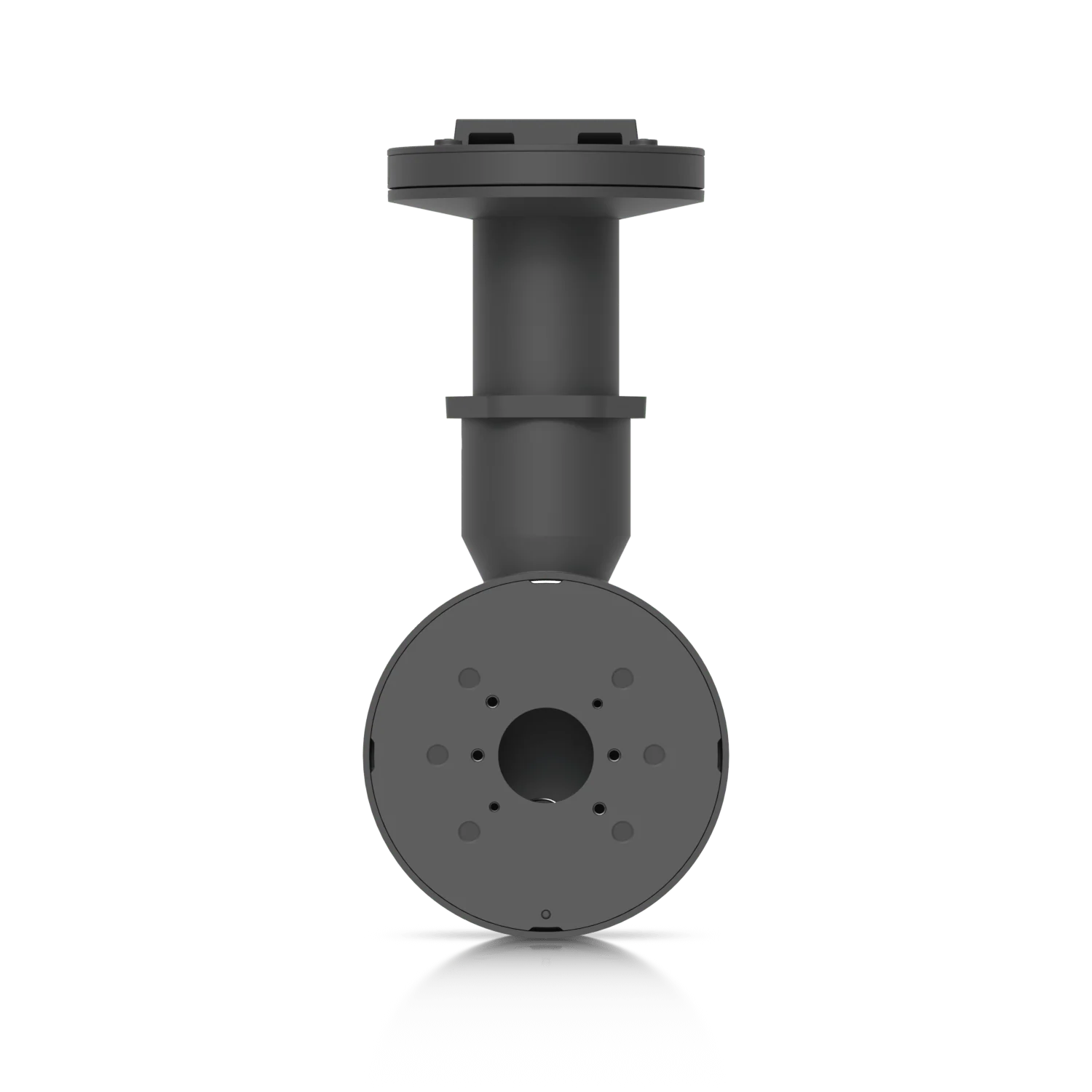

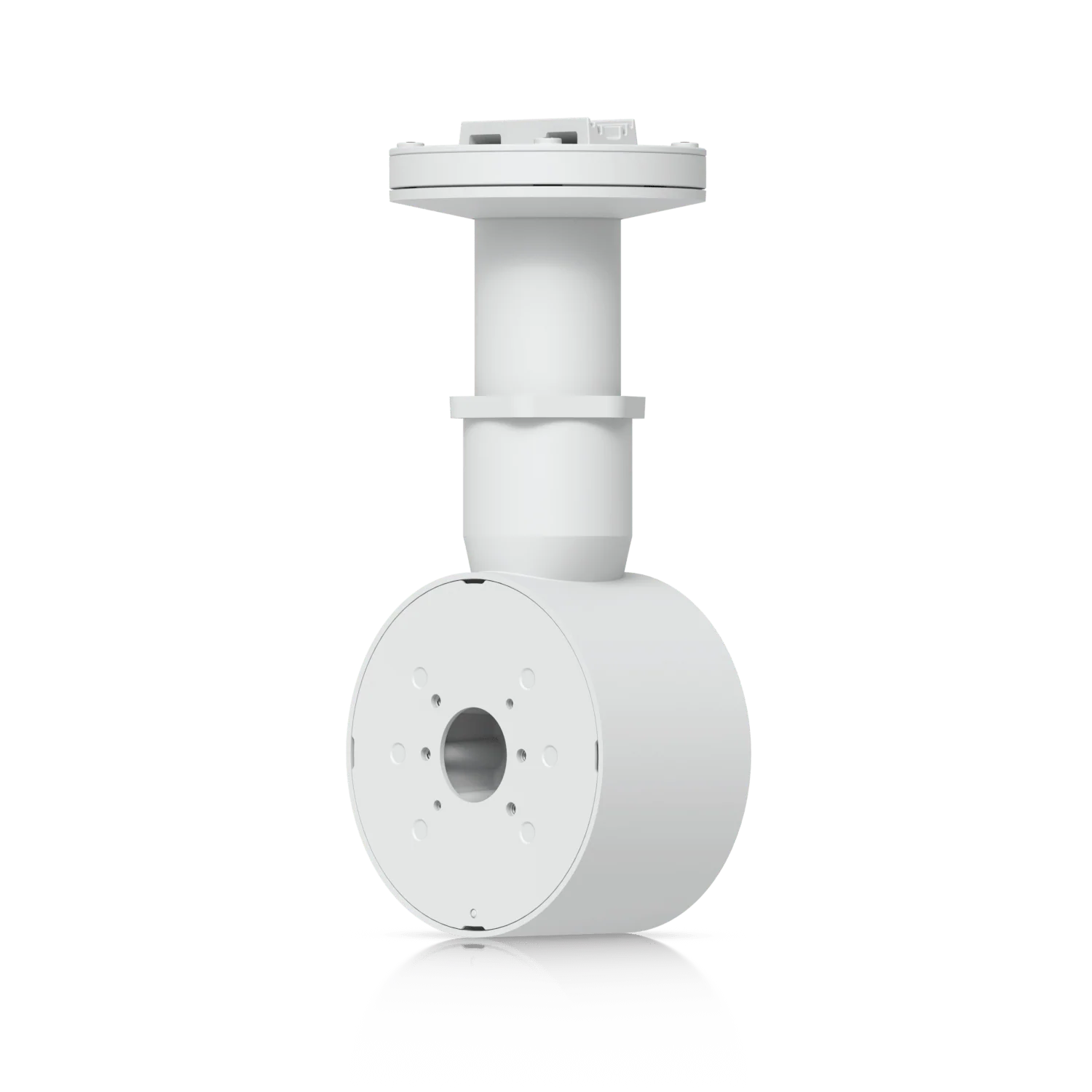

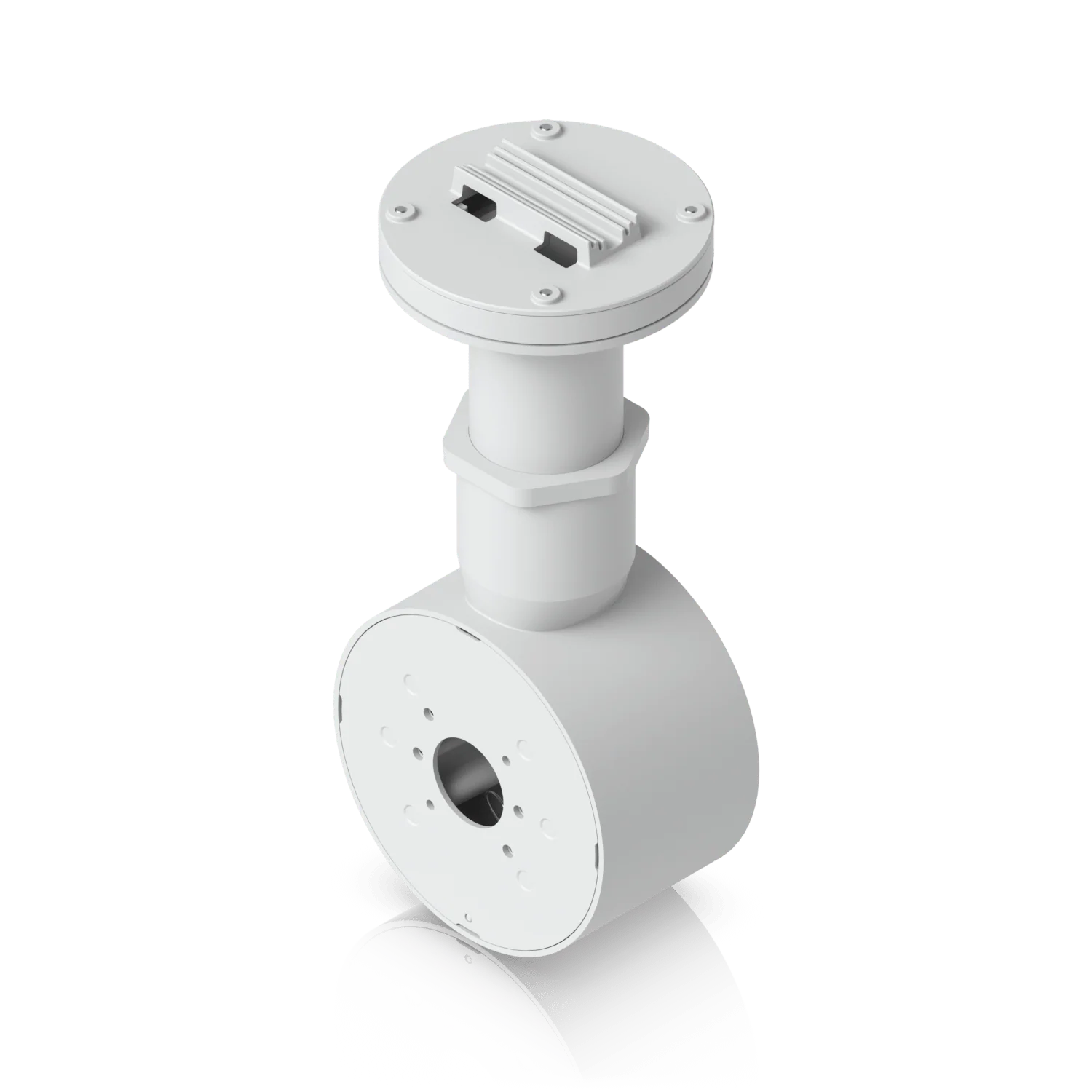

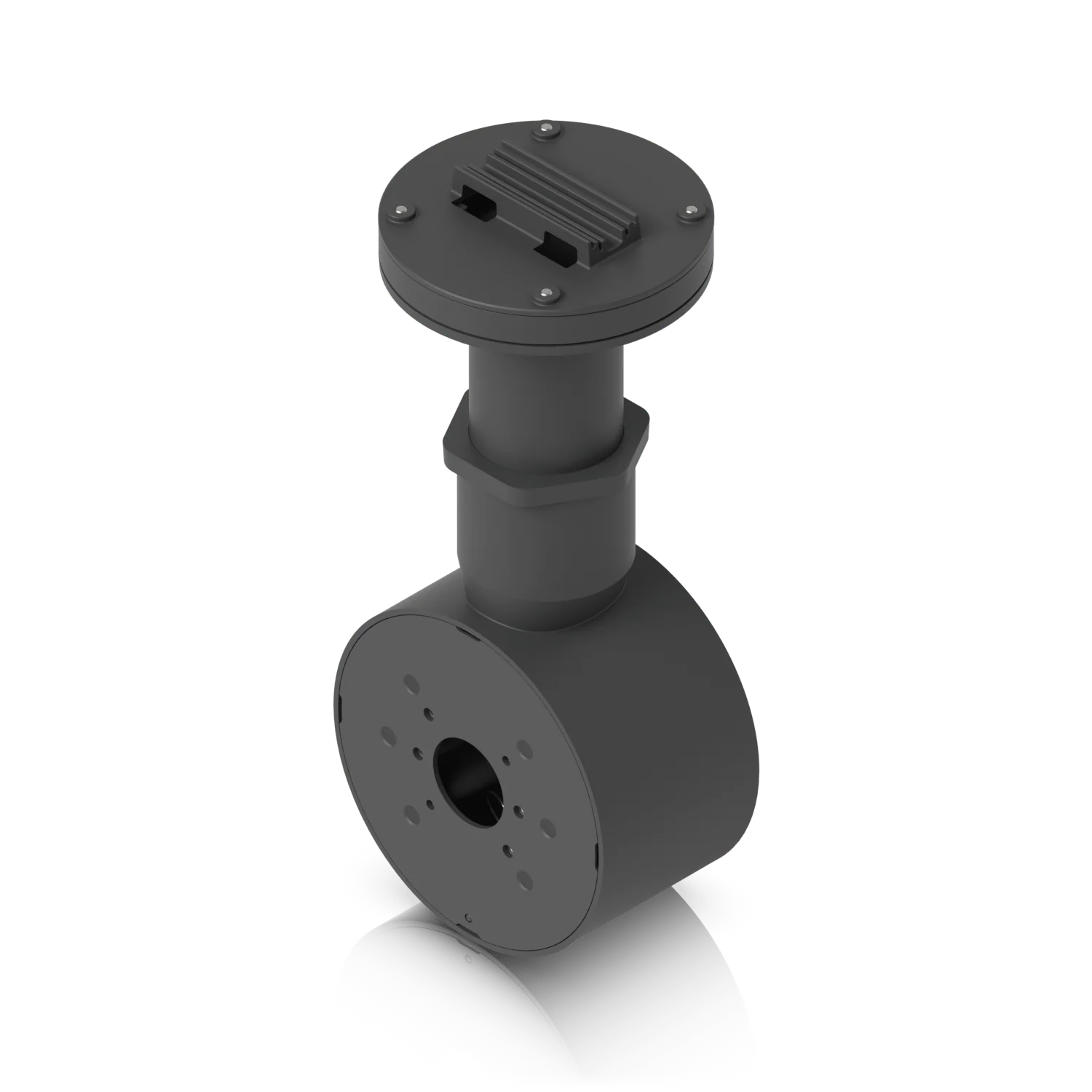

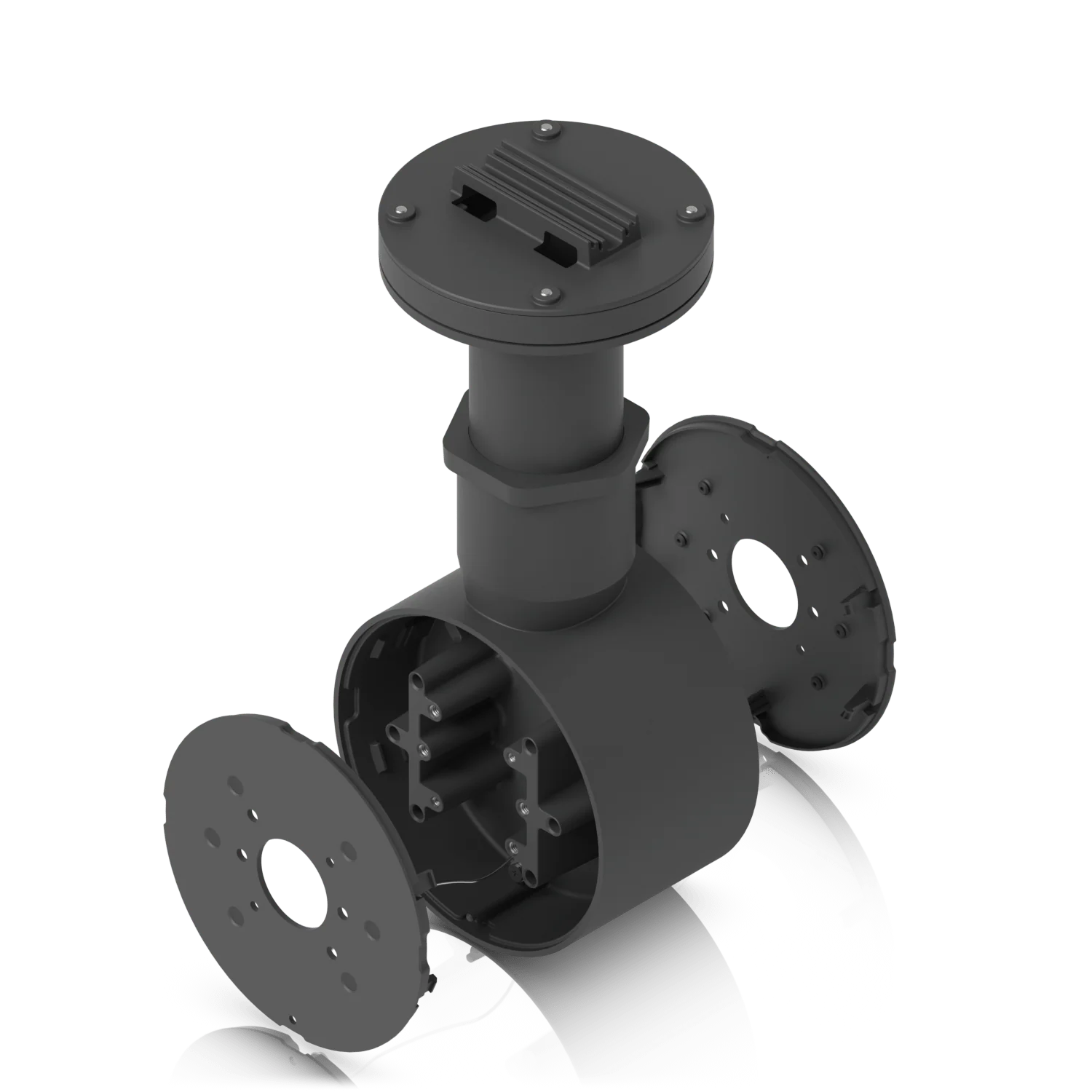

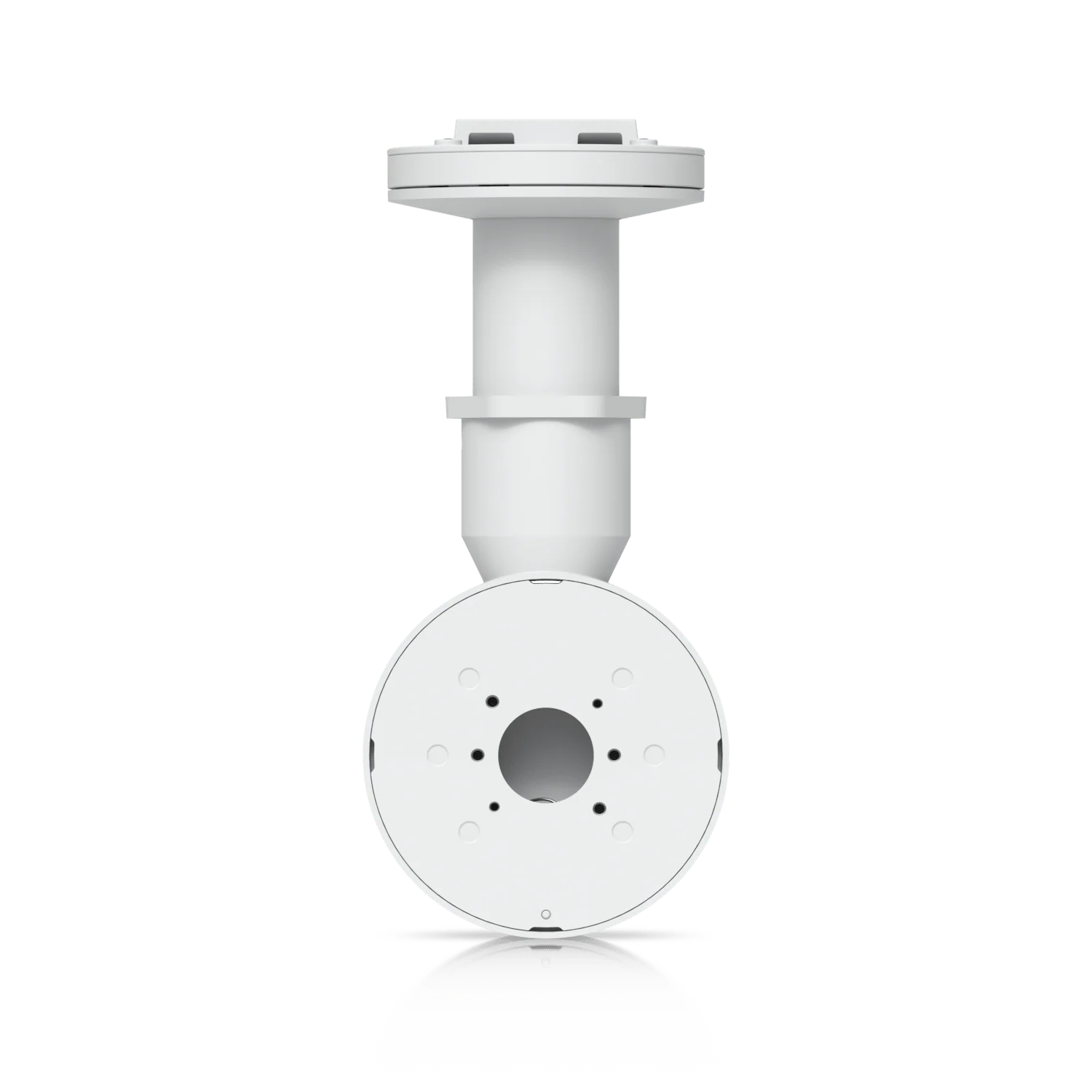

Ubiquiti UACC-Camera-DM Camera Dual Mount

Versatile Dual Mount for Enhanced Camera Coverage

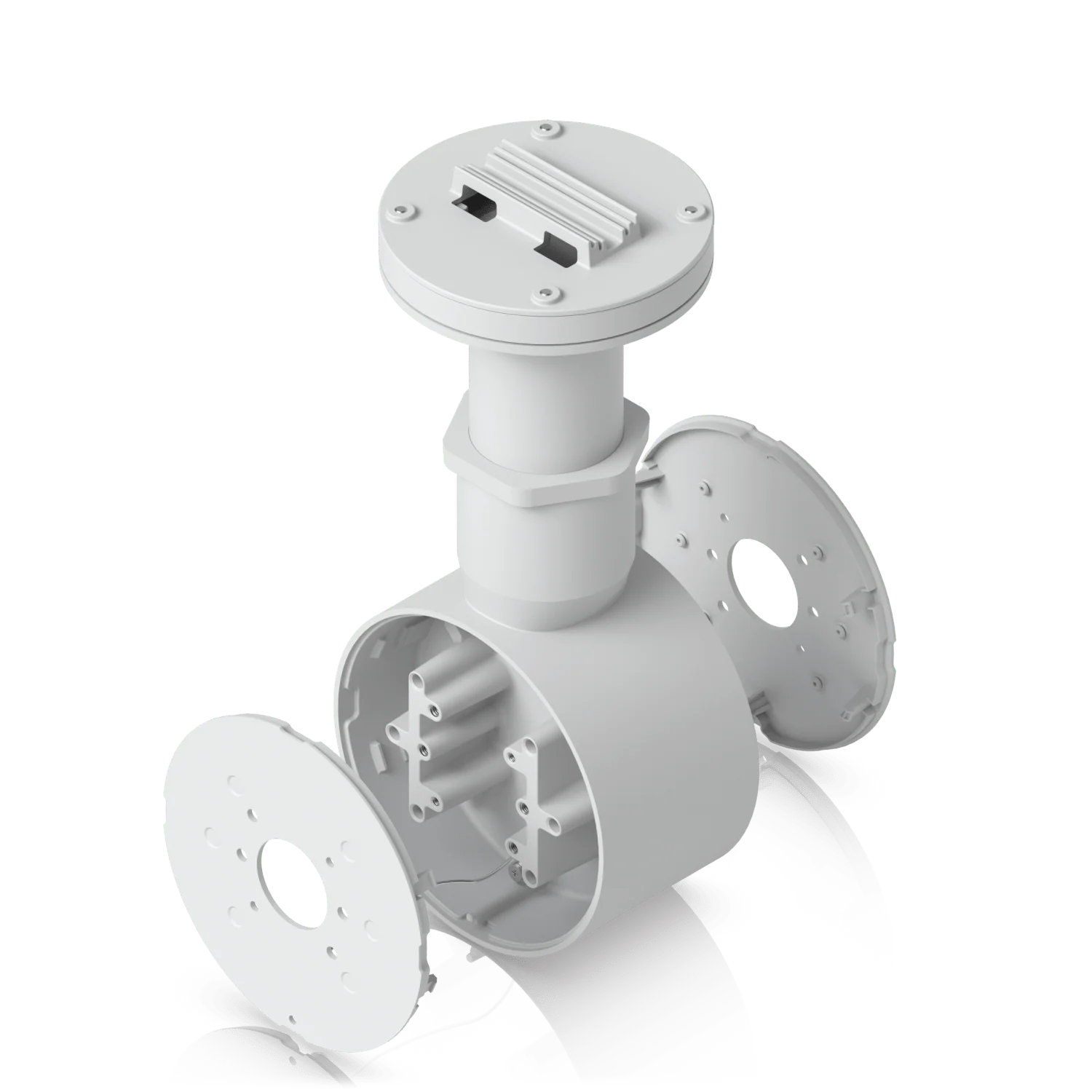

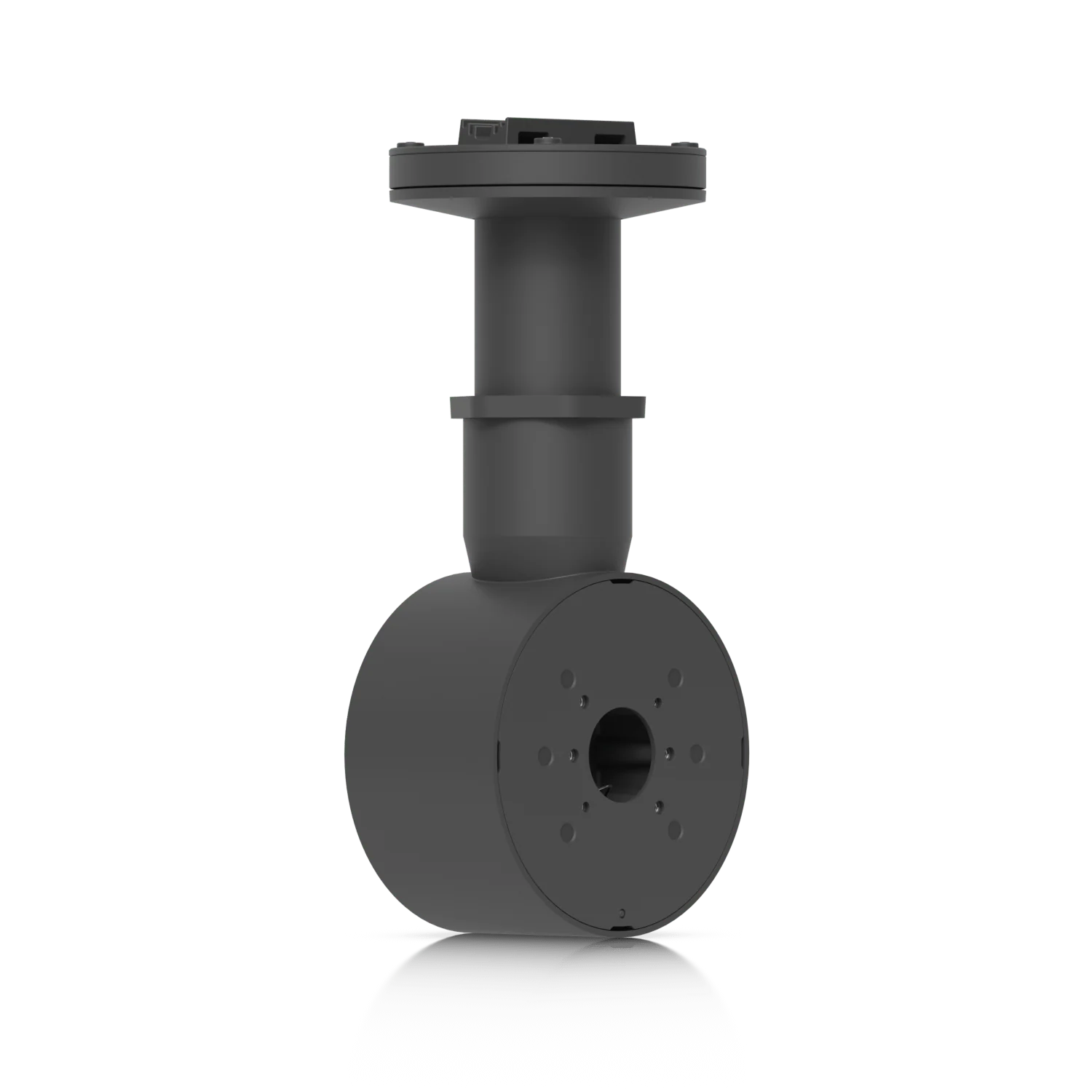

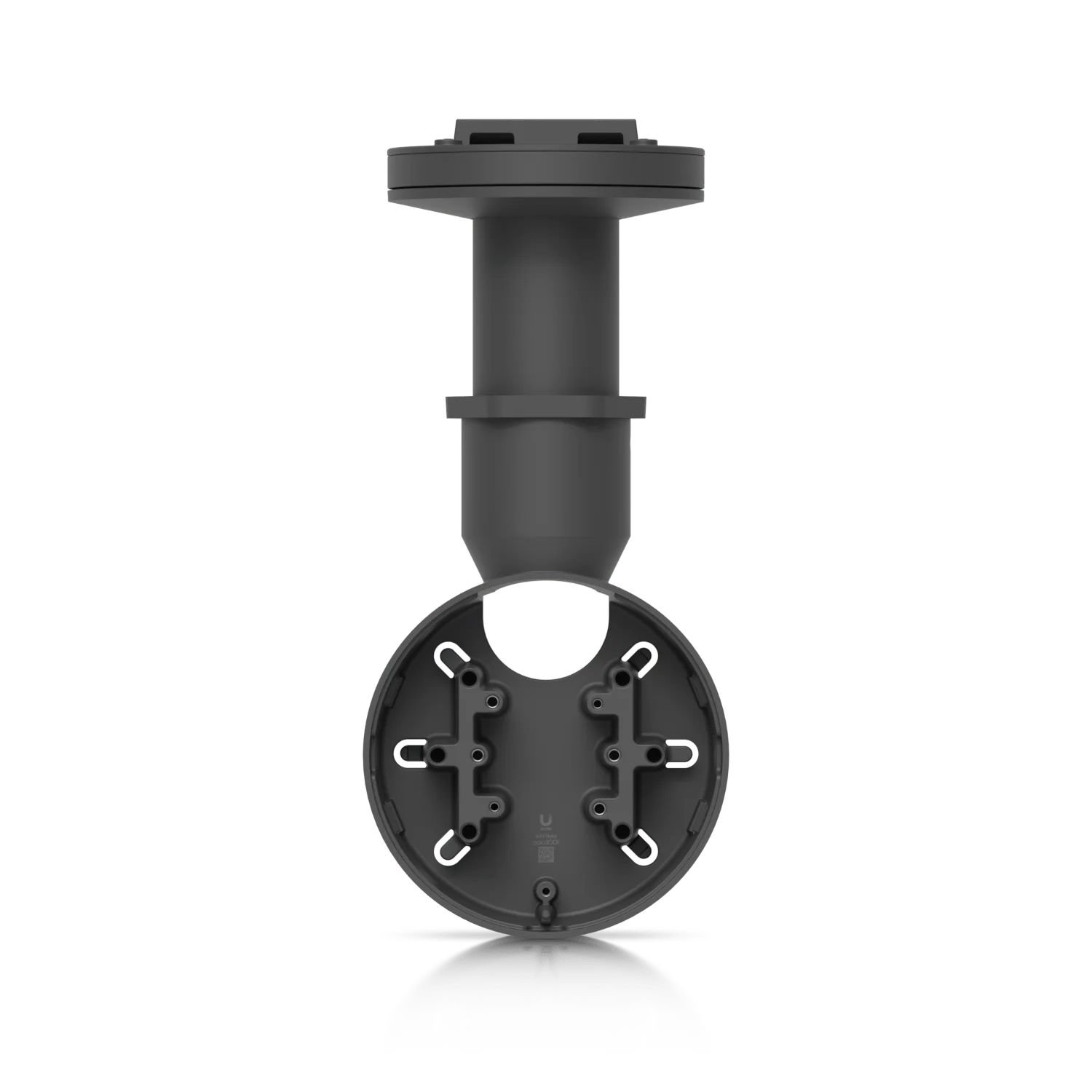

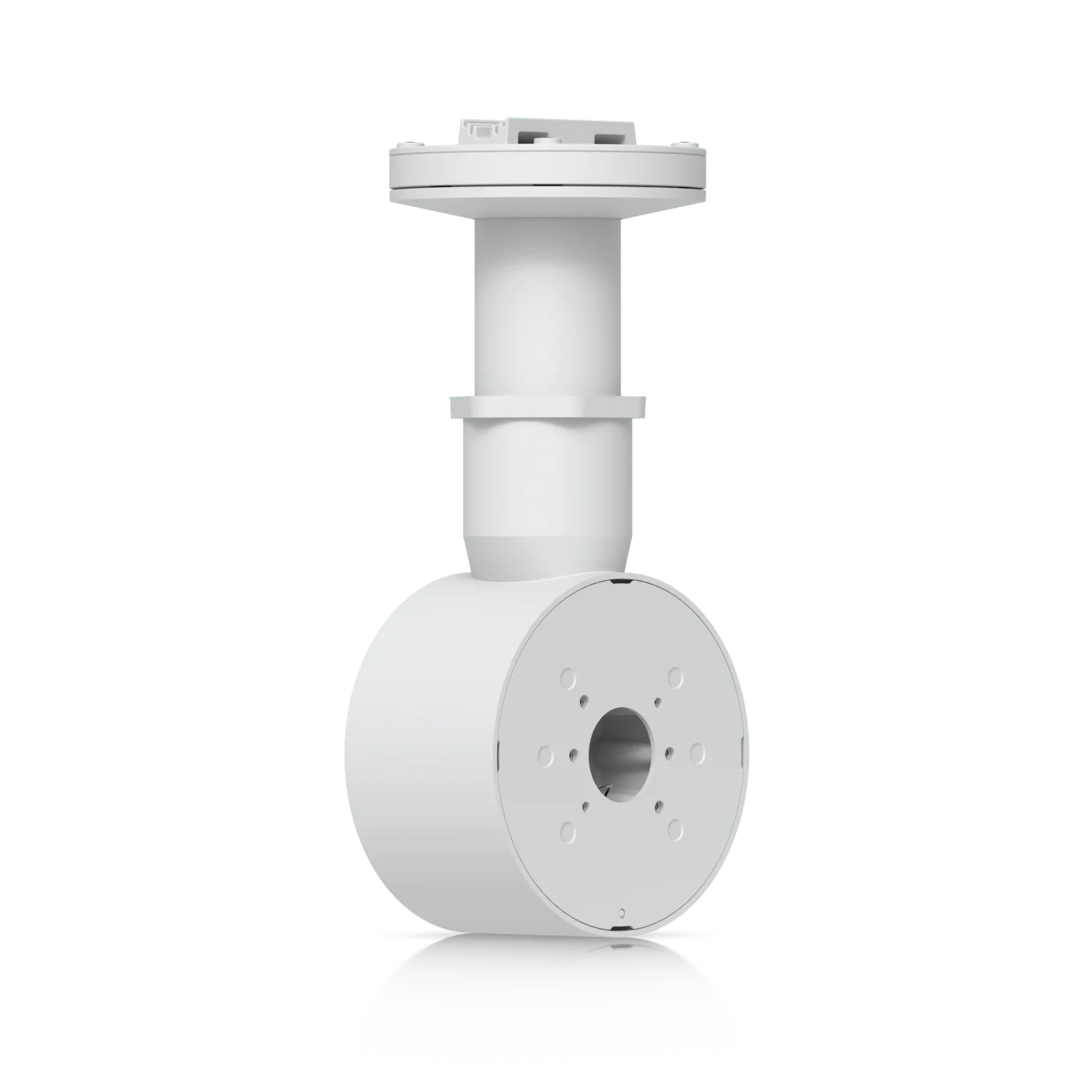

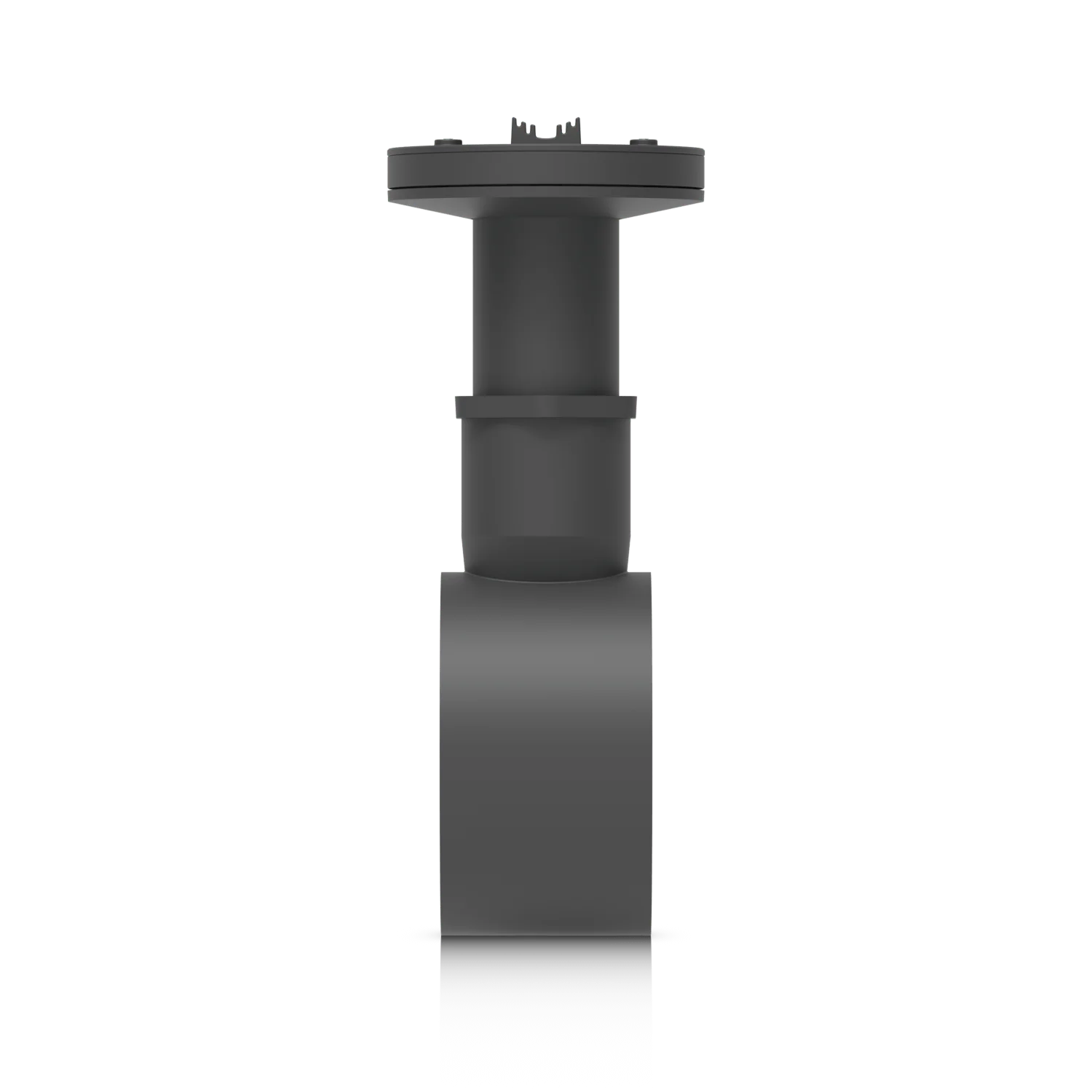

The Ubiquiti UACC-Camera-DM Camera Dual Mount is a tamper-resistant mounting solution designed to securely install two Ubiquiti cameras back-to-back. This robust mount supports surface, pole, and pendant installations, offering flexible deployment options for various surveillance needs. With compatibility for a wide range of UniFi cameras and 1 1/2" NPS threaded conduit, it ensures reliability and adaptability in both indoor and outdoor environments.

Highlights

• Dual-Camera Mount: Supports back-to-back installation of two UniFi cameras for comprehensive coverage.
• Flexible Mounting Options: Suitable for surface, pole, and pendant installations.
• Tamper-Resistant Design: Ensures security and stability in high-traffic or exposed areas.
• Durable Construction: Built with aluminum alloy and polycarbonate for long-lasting performance.
• Wide Compatibility: Works with UniFi Bullet, Dome, and Turret cameras.

Key Features

Secure and Versatile Installation

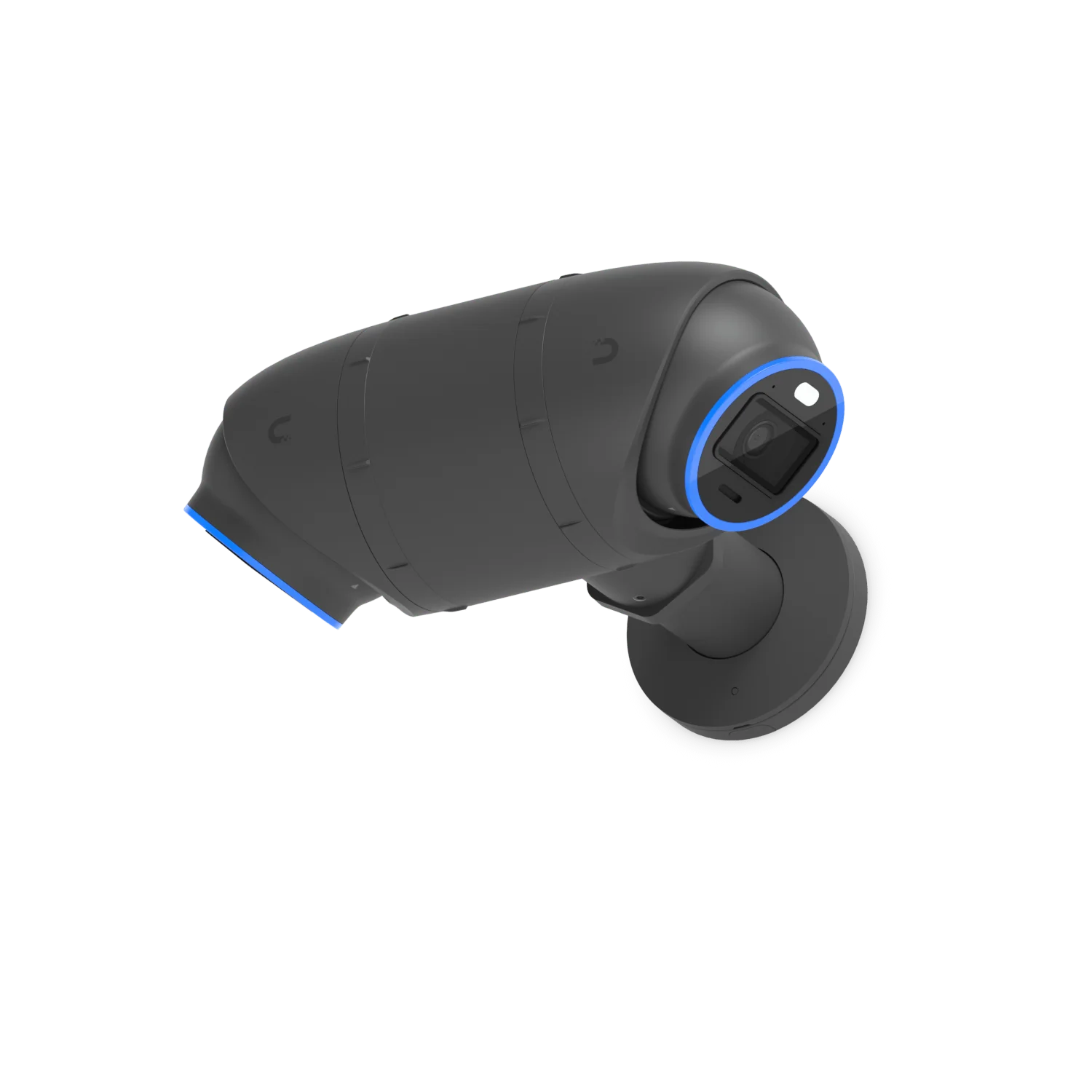

• Dual-Camera Mounting: Back-to-back configuration for enhanced area coverage.
• Mounting Options:
  • Surface mounting for walls or flat surfaces.

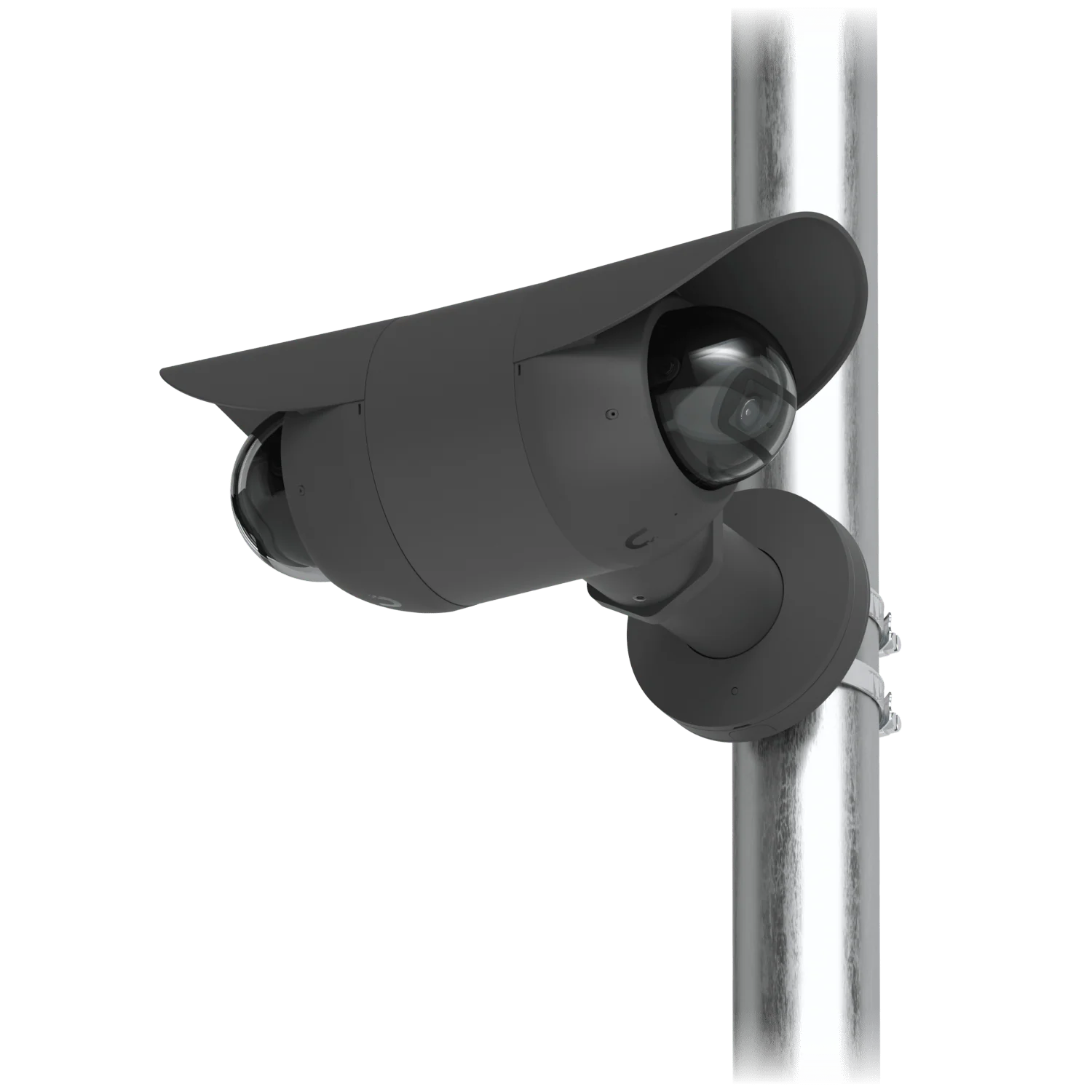

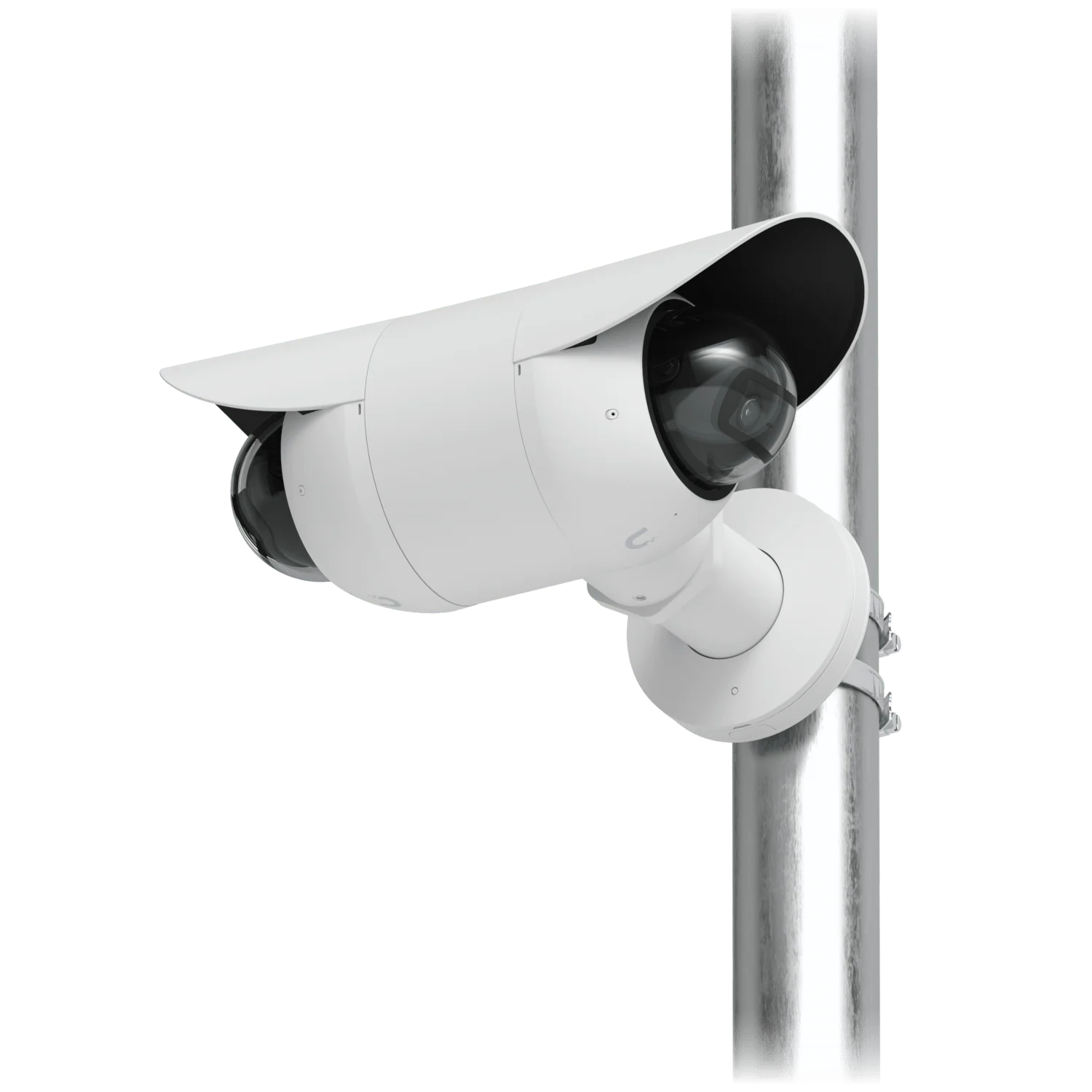

  • Pole mounting for 1.5"–2" diameter poles using metal straps (torque: 6Nm).

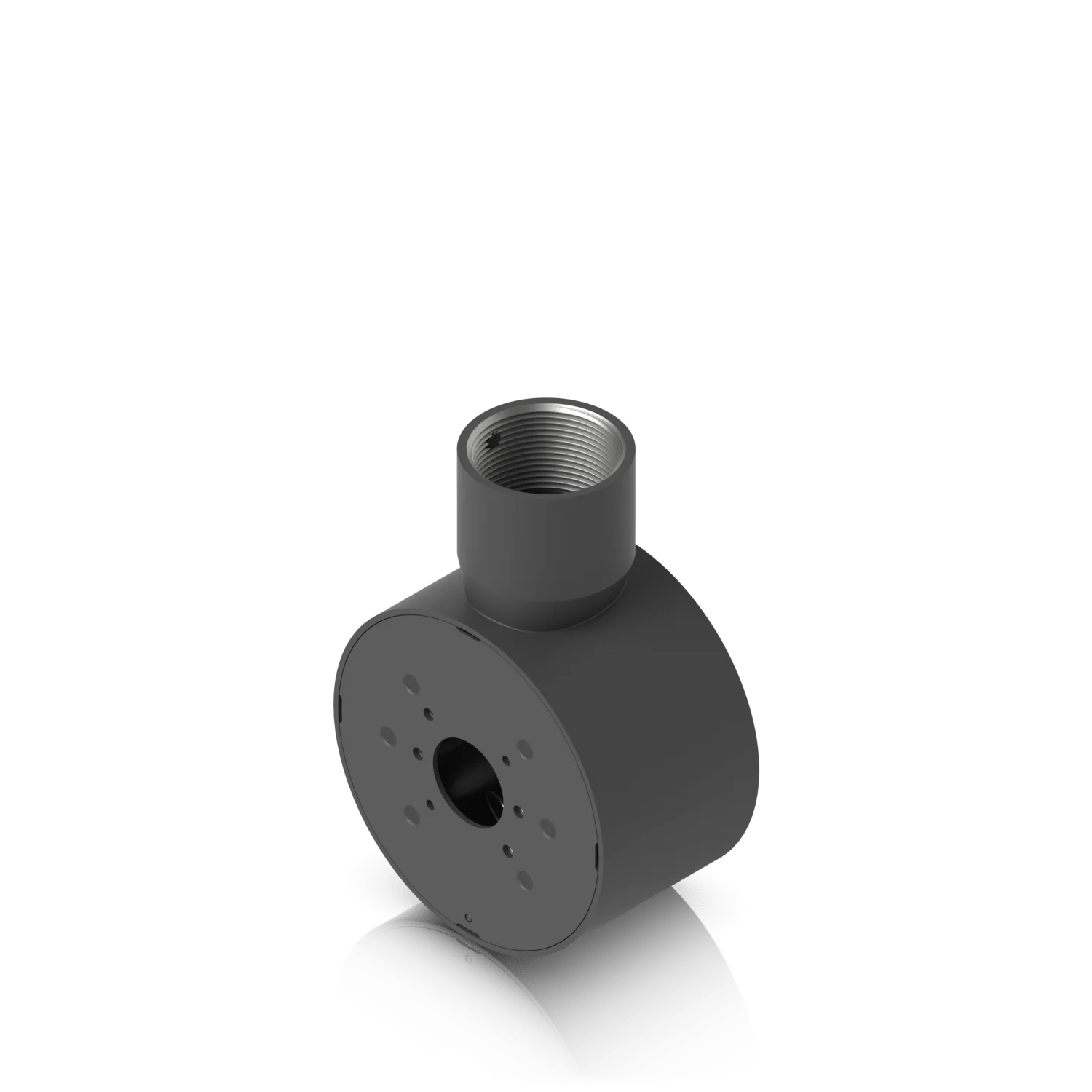

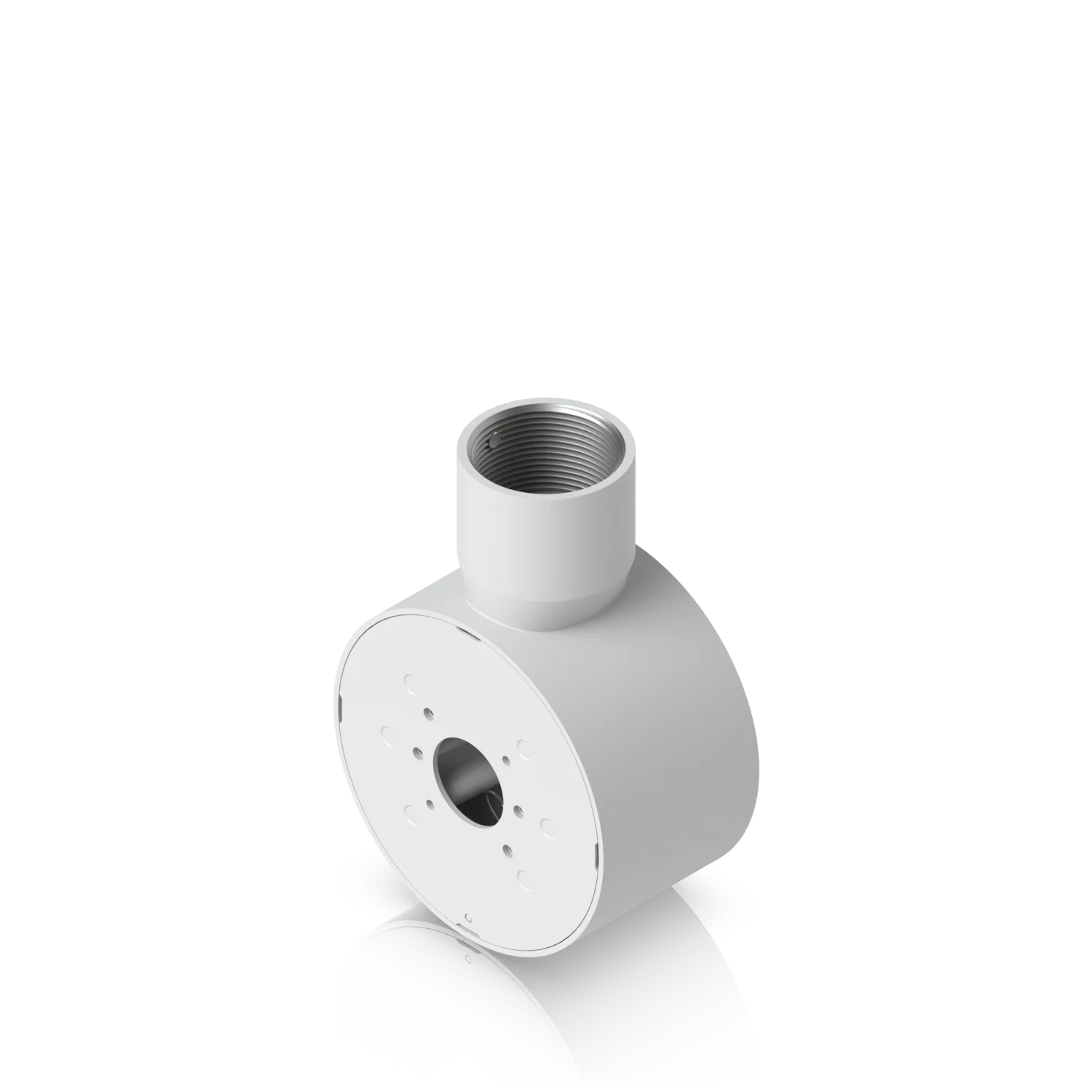

  • Pendant mounting via 1 1/2" NPS threaded conduit.

Robust Build for Outdoor Use

• Weather-Resistant Design: Withstands challenging environmental conditions.
• Premium Materials: Aluminum alloy and polycarbonate construction for durability.

Extensive Camera Compatibility

Compatible with the following UniFi cameras:

• Bullet Series: UVC-AI-Bullet, UVC-G5-Bullet, UVC-G4-Bullet, UVC-G3-Bullet
• Dome Series: UVC-AI-Dome, UVC-G5-Dome-Ultra
• Turret Series: UVC-AI-Turret, UVC-G5-Turret-Ultra
• Pro Series: UVC-G4-Pro, UVC-G5-Pro
• Specialized Cameras: UVC-AI-DSLR, UVC-AI-Pro

Technical Specifications

Category	Details
Dimensions	260 x 118 x 103 mm (10.2 x 4.6 x 4.1")
Weight	920 g (2 lb)
Enclosure Materials	Aluminum alloy, polycarbonate
Mounting Material	Aluminum alloy
Pole Mount Diameter	1.5"–2" (metal strap torque: 6Nm)
Threaded Outlets	1 1/2” NPS
Compatibility	Supports a wide range of UniFi cameras

Summary

The Ubiquiti UACC-Camera-DM Camera Dual Mount is a durable and versatile mounting solution that supports dual-camera installations for comprehensive surveillance coverage. With options for surface, pole, and pendant mounting, as well as robust construction, it ensures secure deployment in any environment. Ideal for UniFi Bullet, Dome, and Turret cameras, it’s perfect for enterprise and large-scale surveillance setups.
