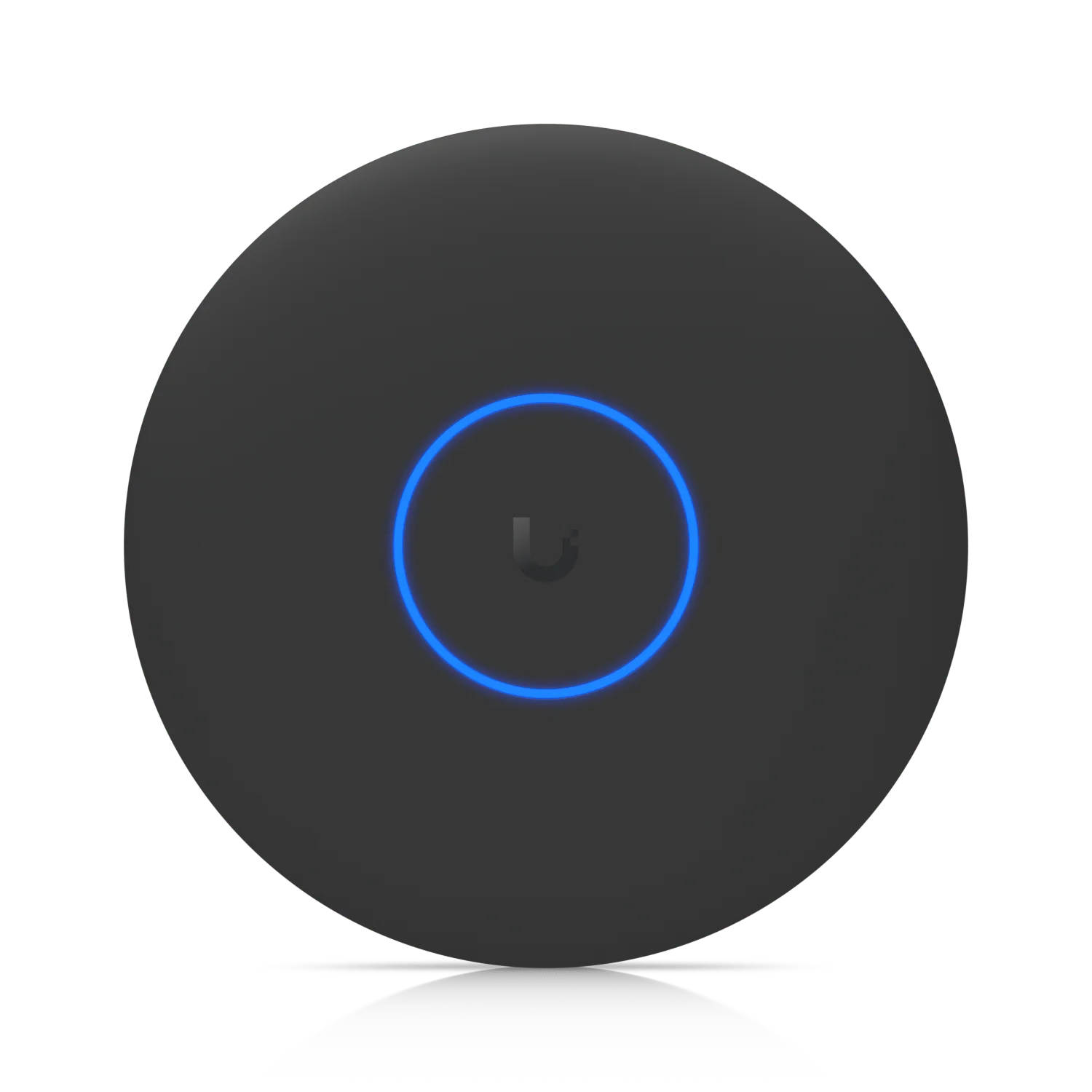

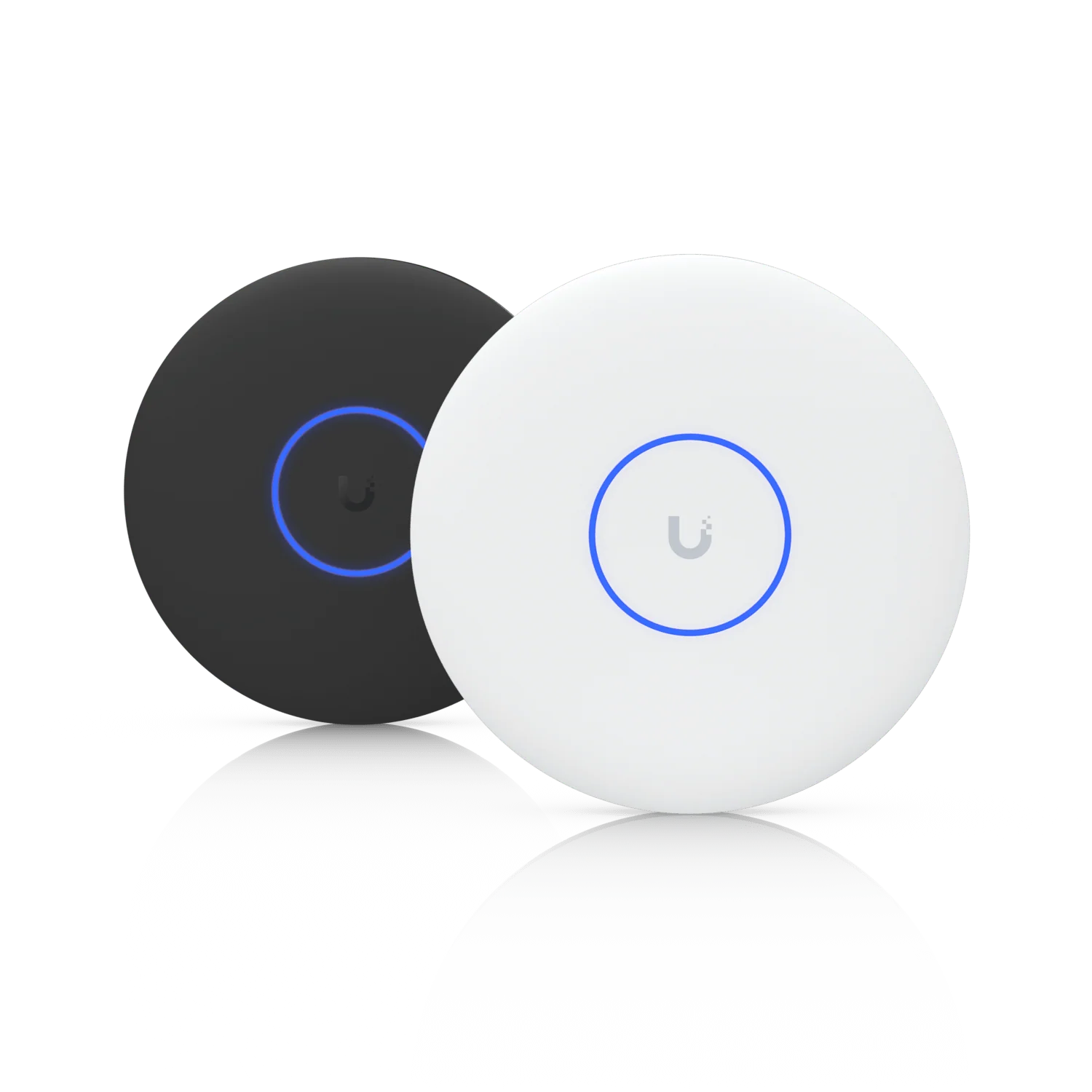

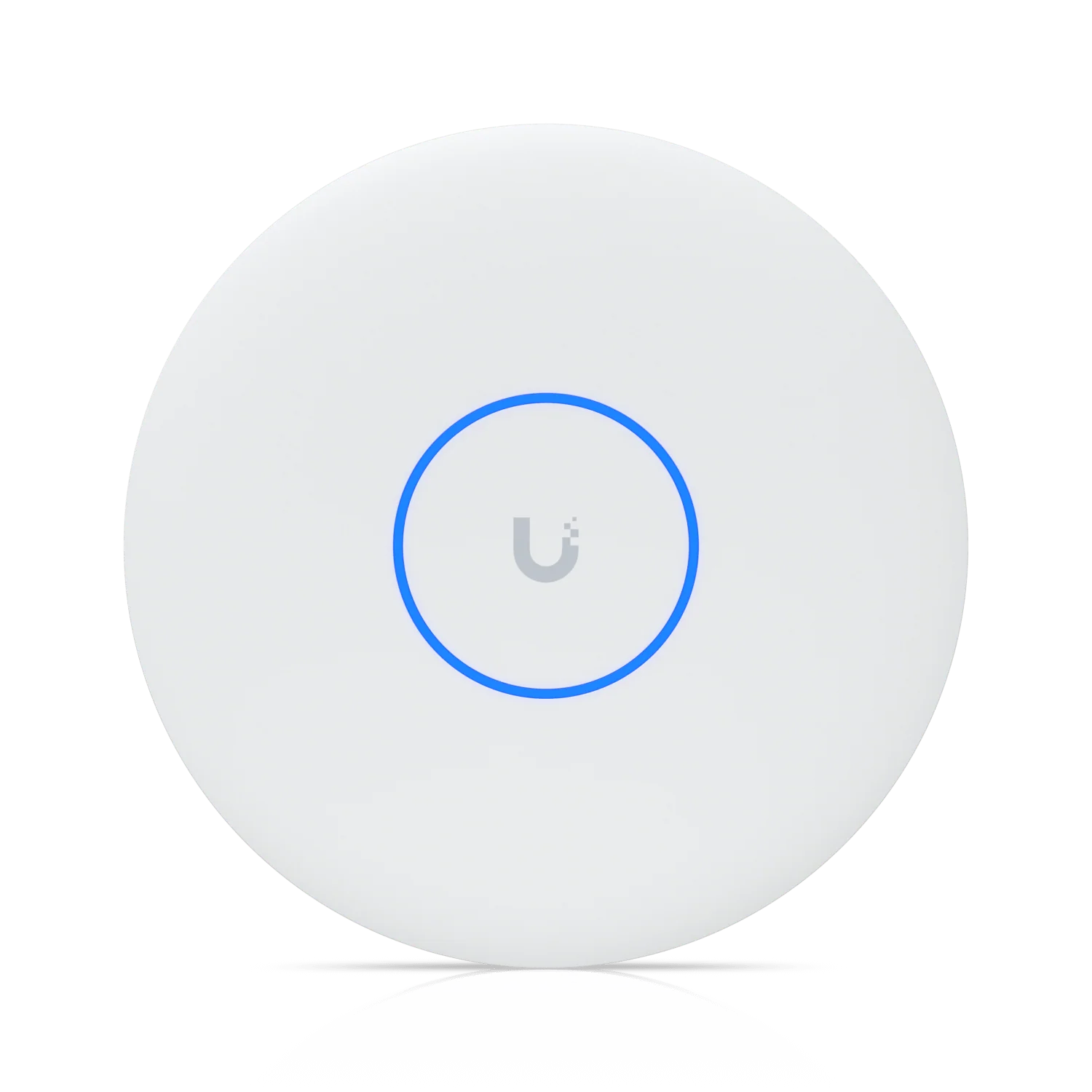

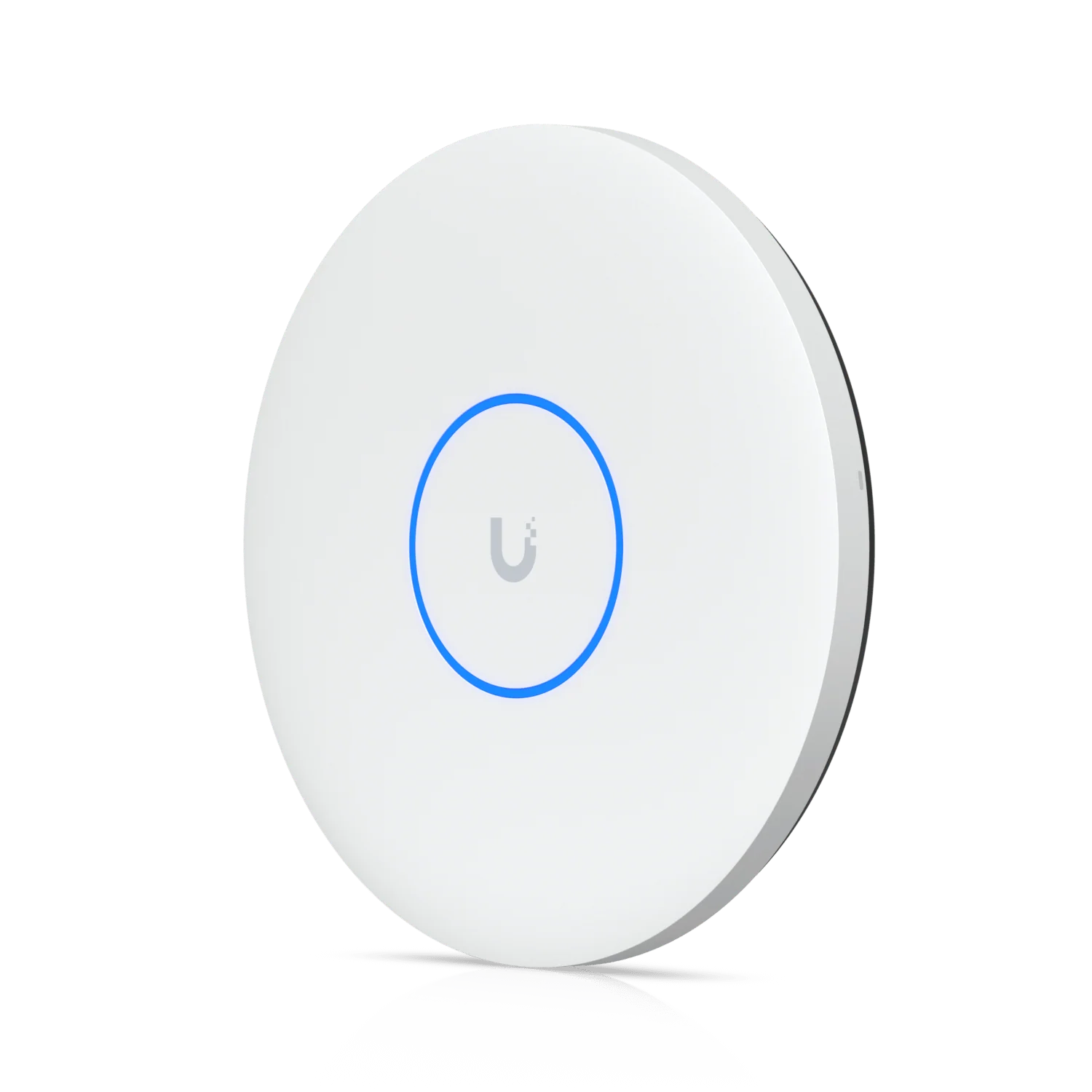

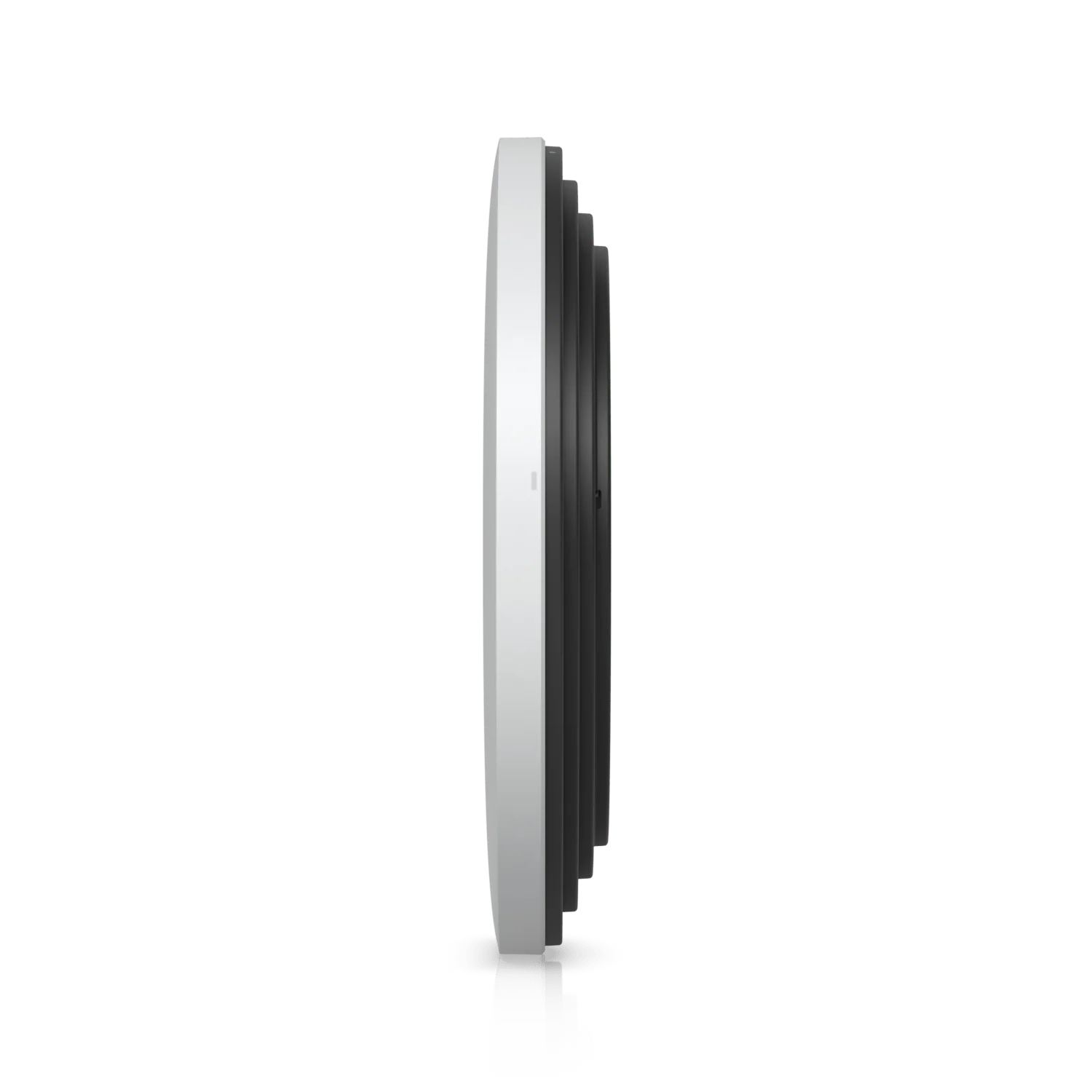

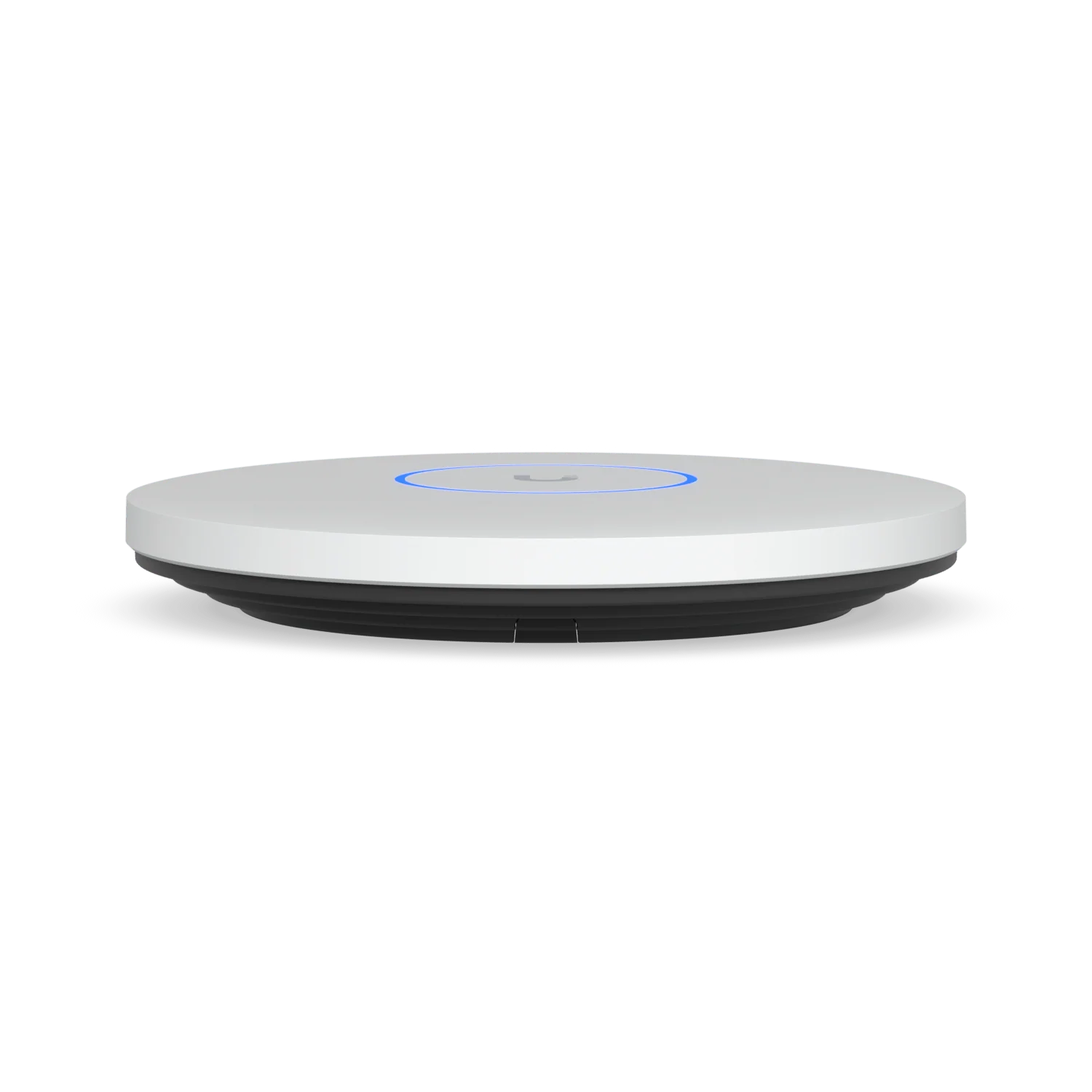

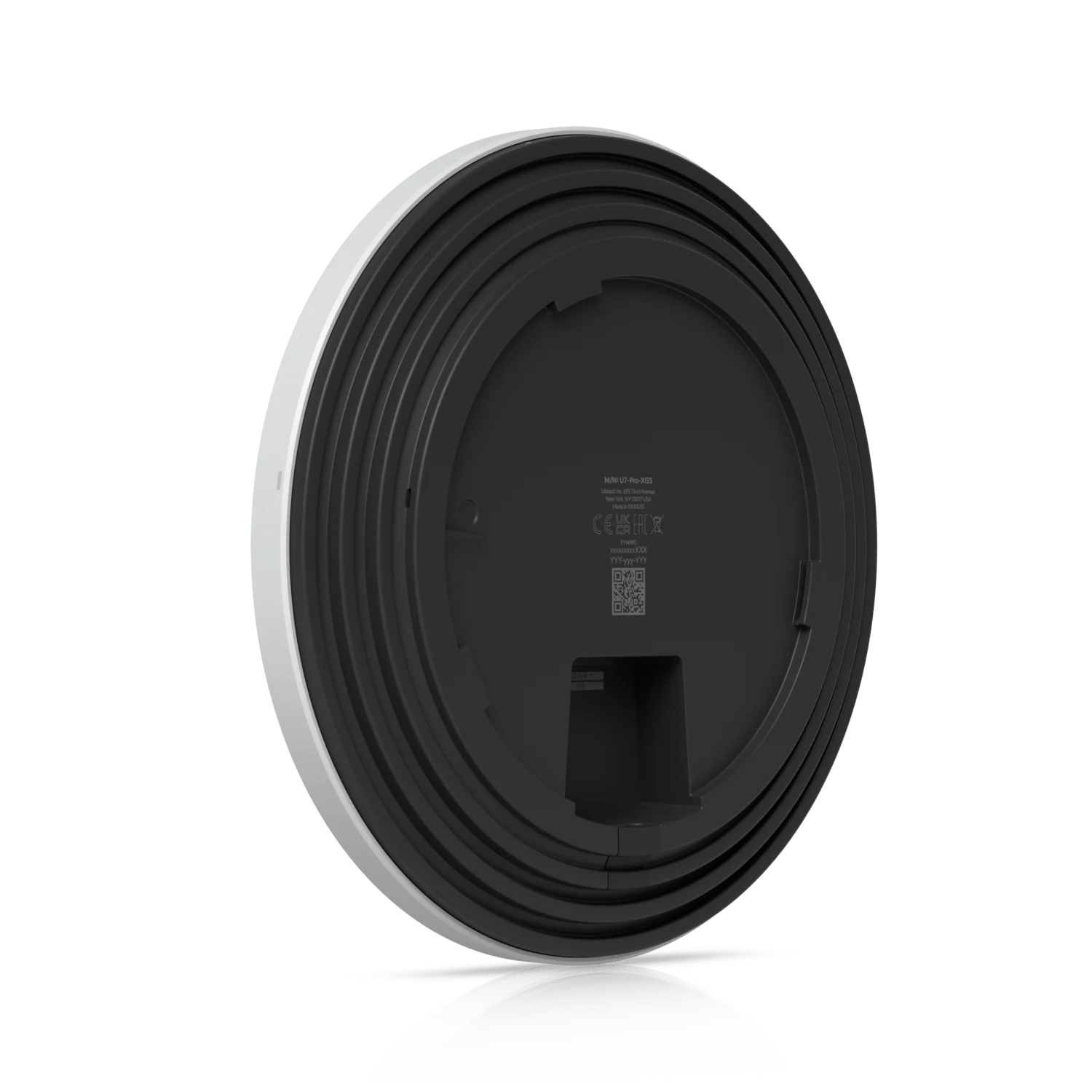

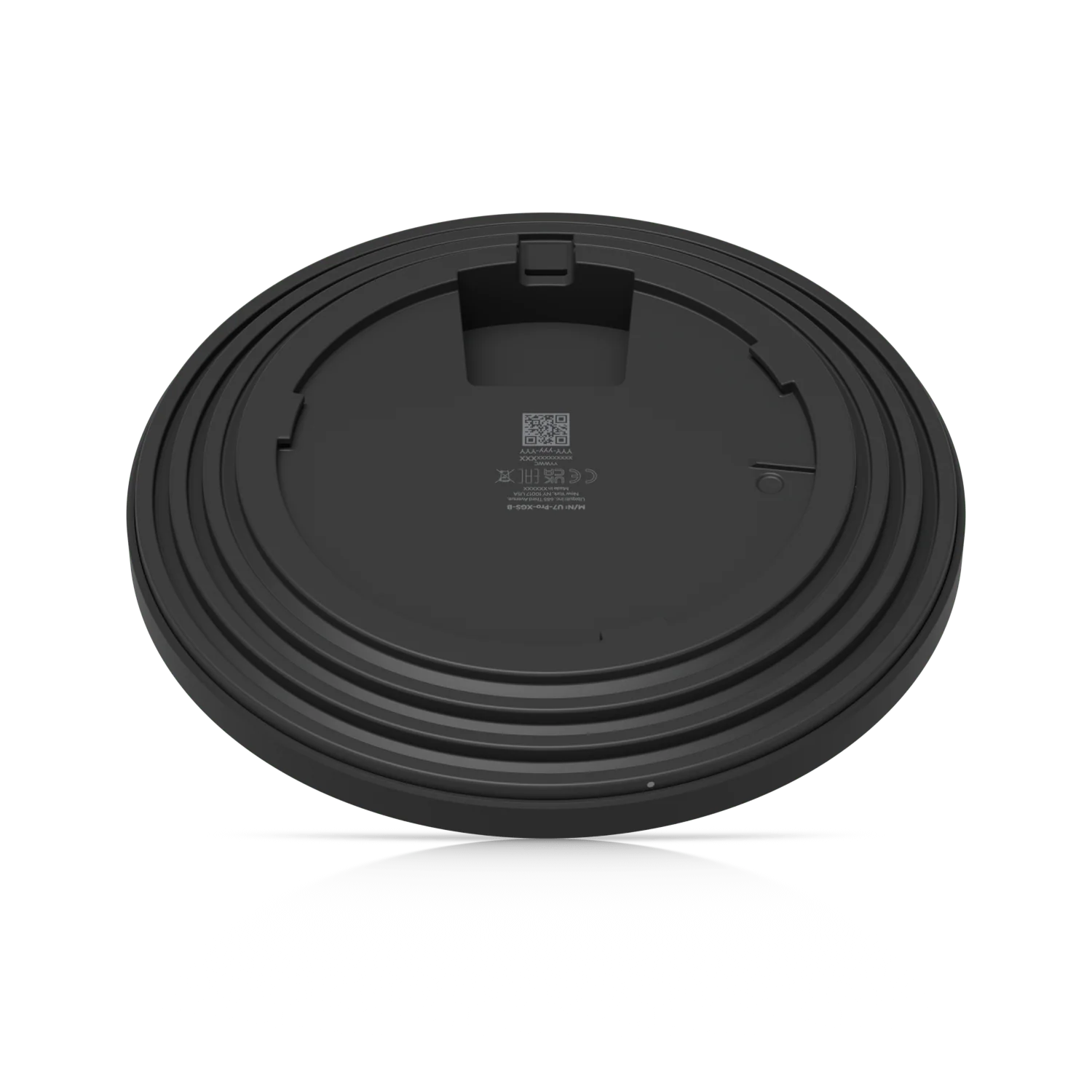

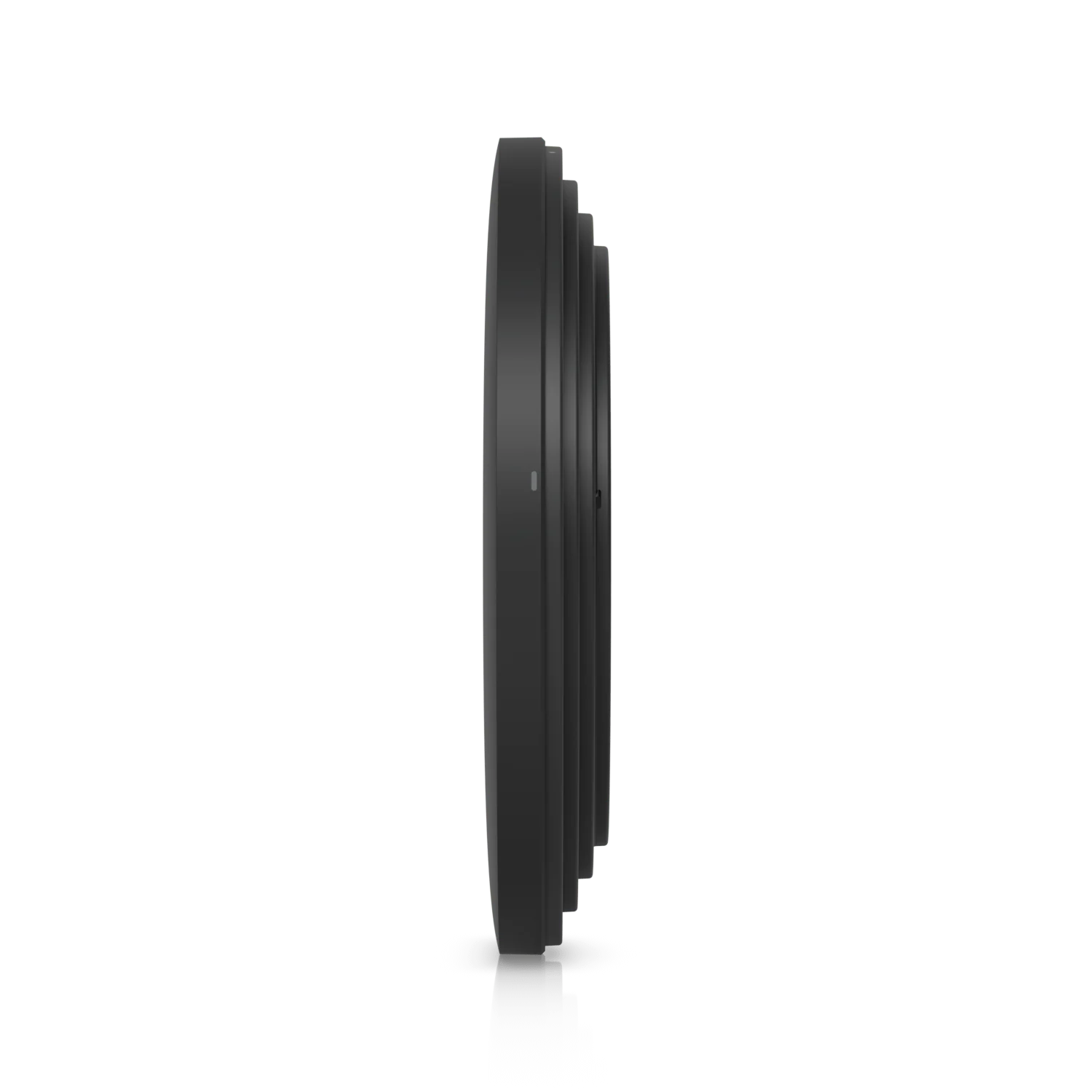

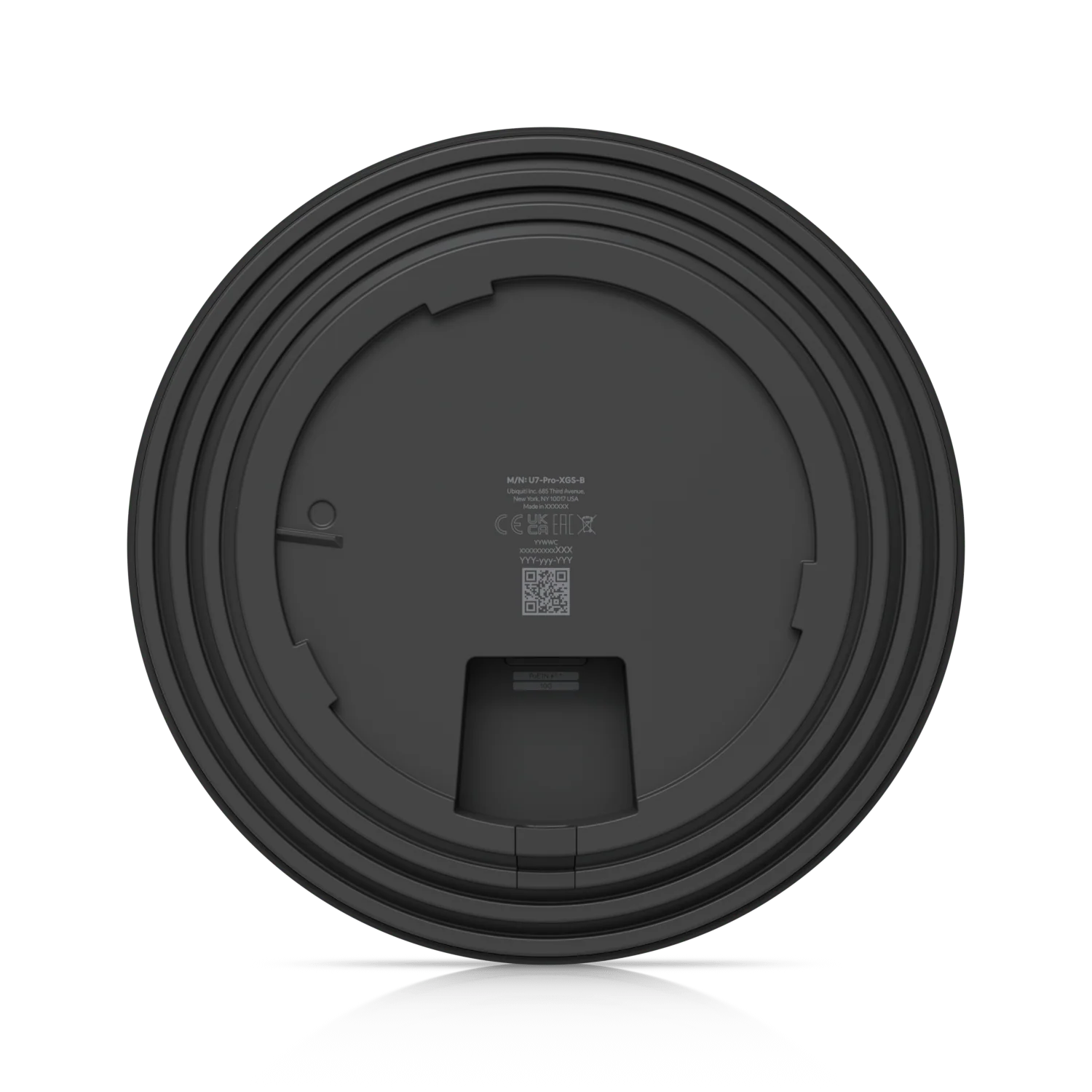

Ubiquiti U7 Pro XGS BE15100 10GbE Access Point

Next-Level WiFi 7 for High-Density Networks

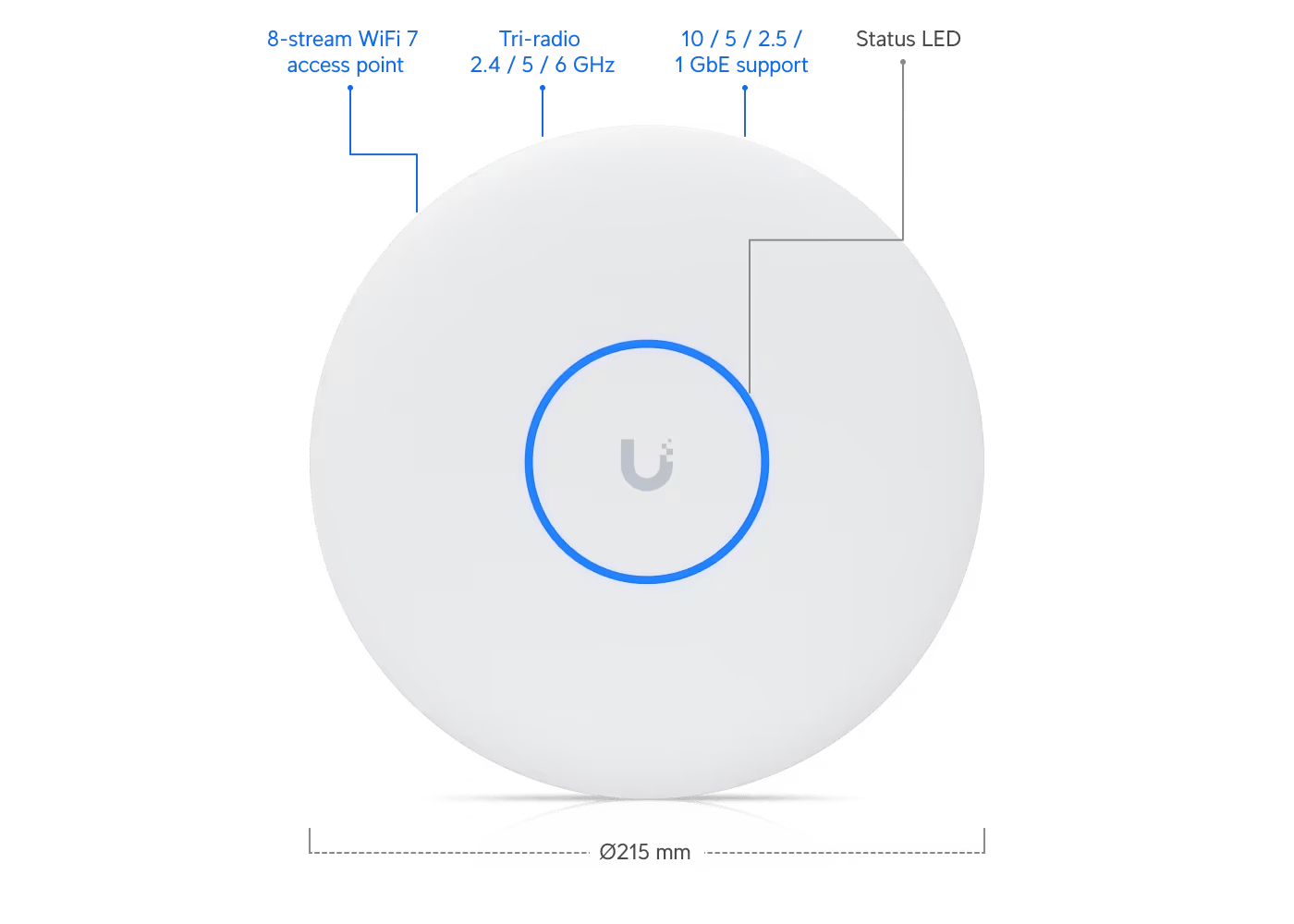

The Ubiquiti U7 Pro XGS BE15100 is a high-performance WiFi 7 access point, designed to deliver ultra-fast speeds, superior efficiency, and advanced network intelligence. With an 8-stream MU-MIMO design, a dedicated spectral scanning radio, and a 10GbE uplink, this AP ensures exceptional wireless connectivity for high-density environments such as offices, campuses, and event spaces.

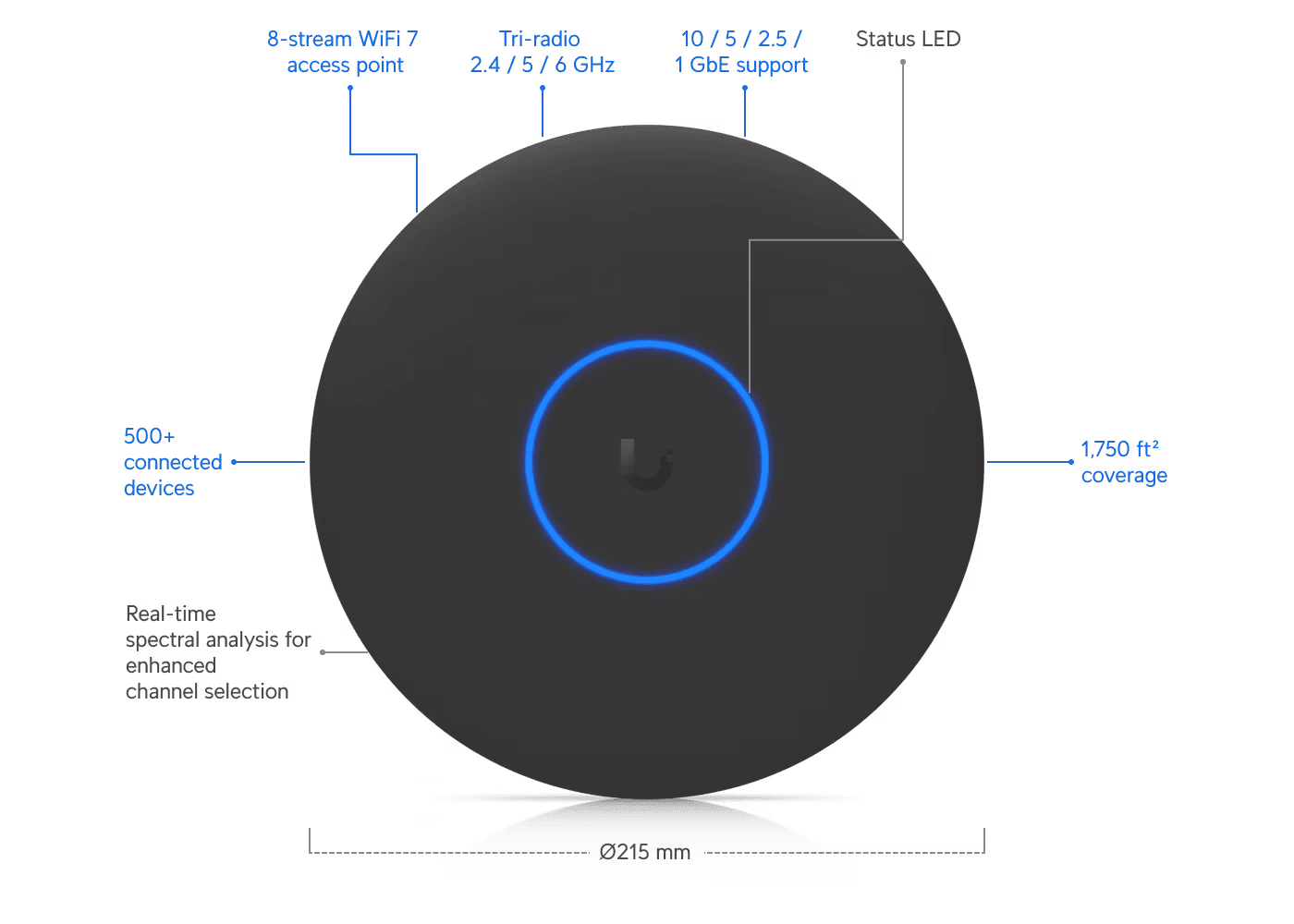

Highlights

• WiFi 7 Tri-Band (6 GHz, 5 GHz, 2.4 GHz) for unmatched speed and efficiency
• 8-stream MU-MIMO and 500+ client capacity for high-performance networking
• Dedicated spectral scanning radio for real-time interference analysis
• Zero-Wait DFS for uninterrupted 6 GHz operation
• 10/5/2.5/1 GbE uplink for ultra-fast data transmission
• Ceiling or wall-mountable with included Lite Mount

Key Features

WiFi 7 Performance for Maximum Speed

• 6 GHz (2x2 MU-MIMO, 5.8 Gbps) with 320 MHz bandwidth
• 5 GHz (4x4 MU-MIMO, 8.6 Gbps) with 240 MHz bandwidth
• 2.4 GHz (2x2 MU-MIMO, 688 Mbps) with 40 MHz bandwidth

Enterprise-Grade Network Capacity & Coverage

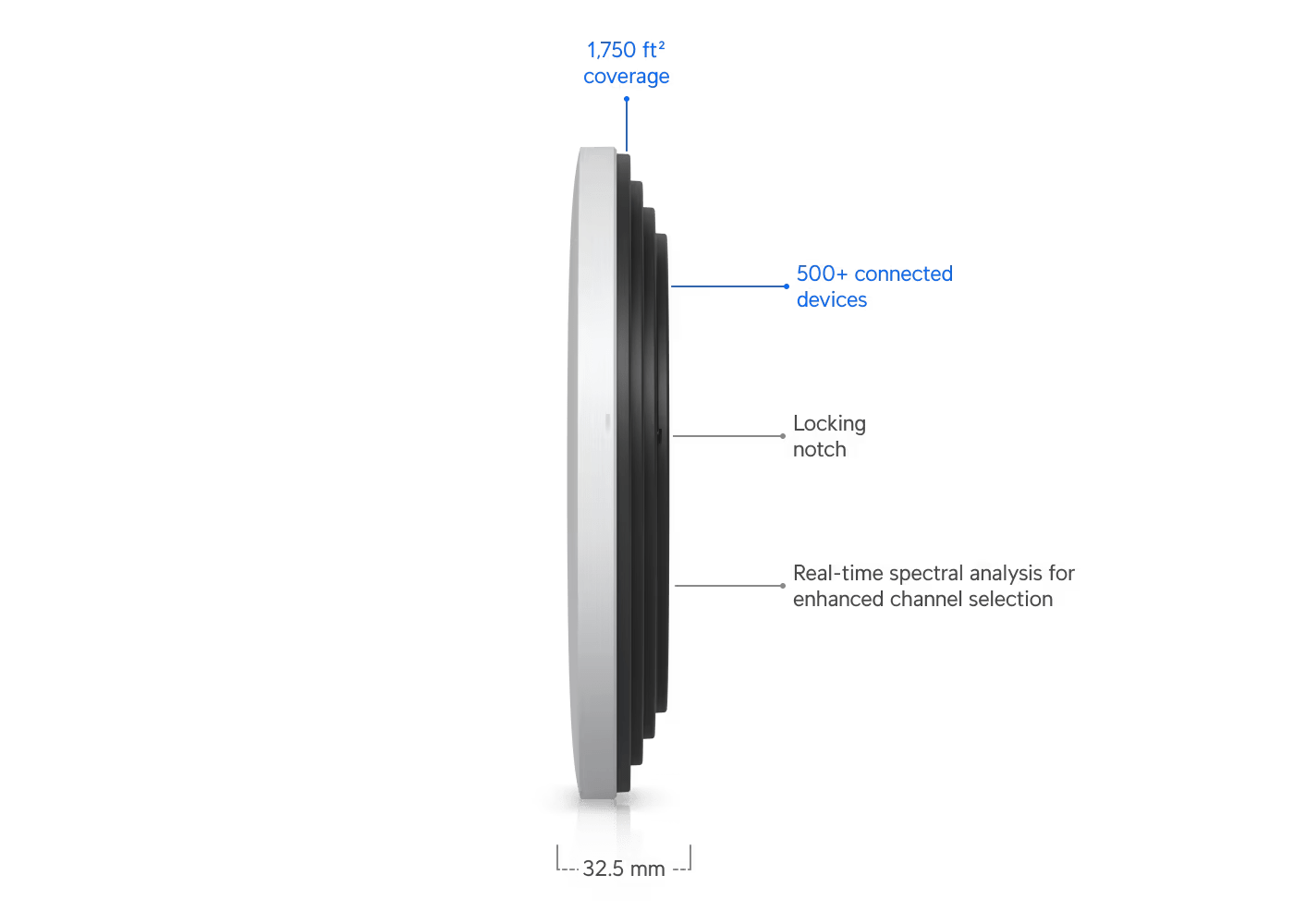

• Coverage area: 160 m² (1,750 ft²)
• 500+ simultaneous client capacity

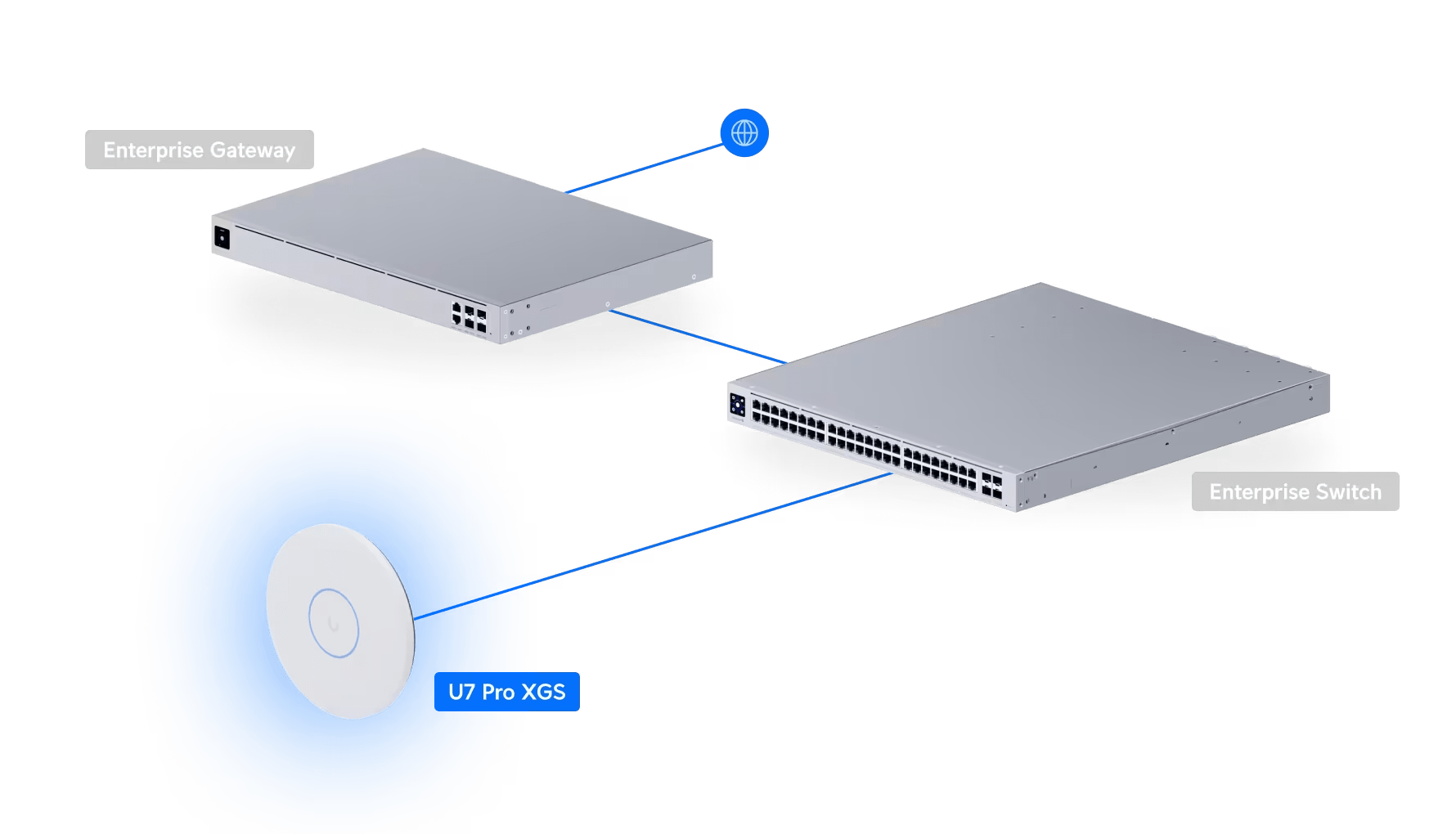

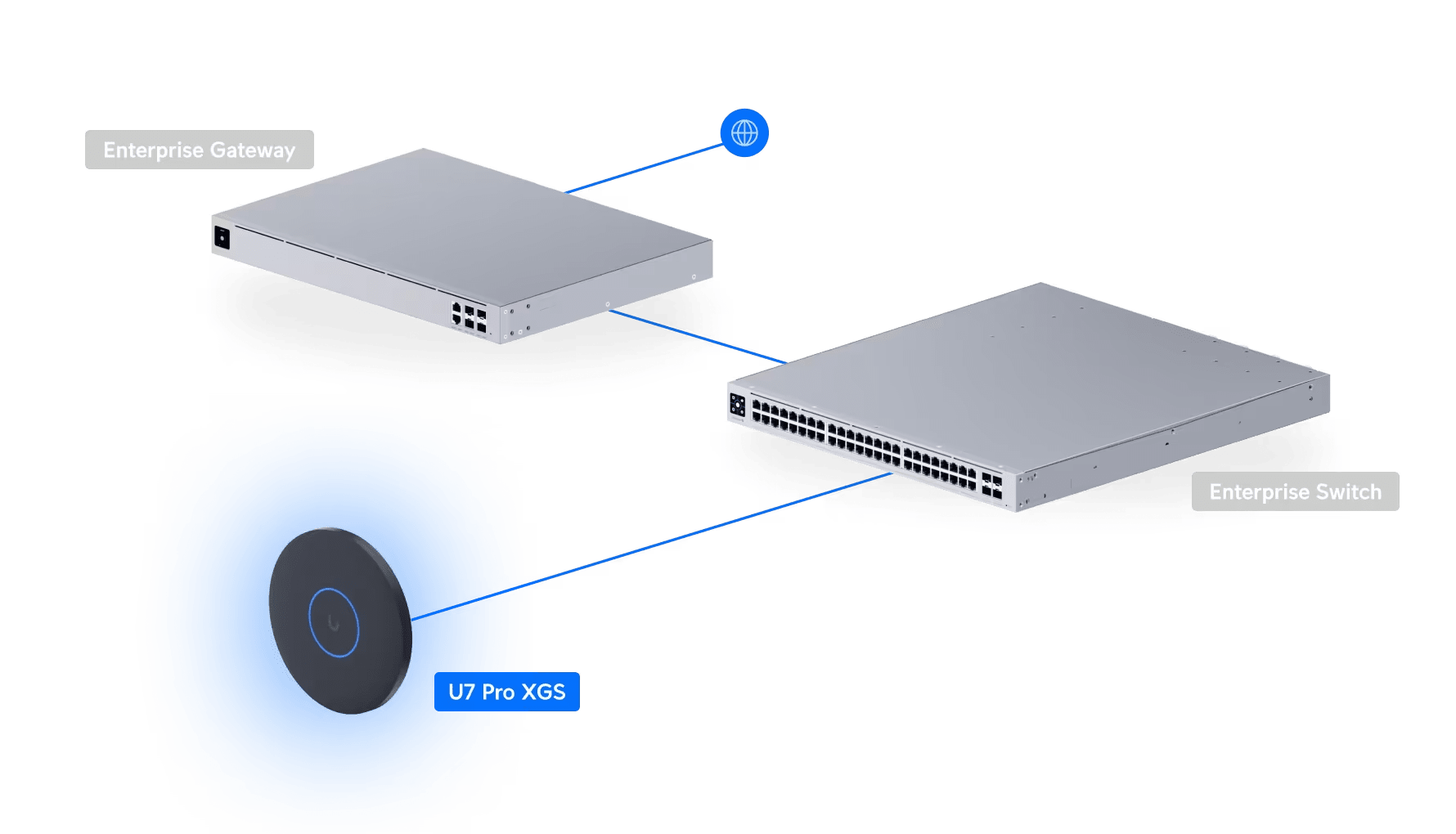

• 10 GbE uplink ensures high-speed backhaul connectivity
• High-Gain Antennas: 6 dBi (6 GHz, 5 GHz), 4 dBi (2.4 GHz)

Advanced Wireless Management & Optimization

• Real-Time Spectral Analysis for continuous interference monitoring
• Zero-Wait DFS eliminates delays when switching DFS channels
• 802.11v BSS Transition Management enhances roaming performance
• 802.11r Fast Roaming & 802.11k Radio Resource Management

Secure & Scalable Guest Network Solutions

• Passpoint (Hotspot 2.0) for seamless guest authentication
• Captive Portal with Custom Branding for controlled guest access
• Private Pre-Shared Key (PPSK) for secure authentication
• Dynamic VLANs via RADIUS for network segmentation
• WiFi Speed Limiting & Client Isolation for enhanced security

Deployment Flexibility & Power Efficiency

• PoE++ Powered for easy installation without additional power cables

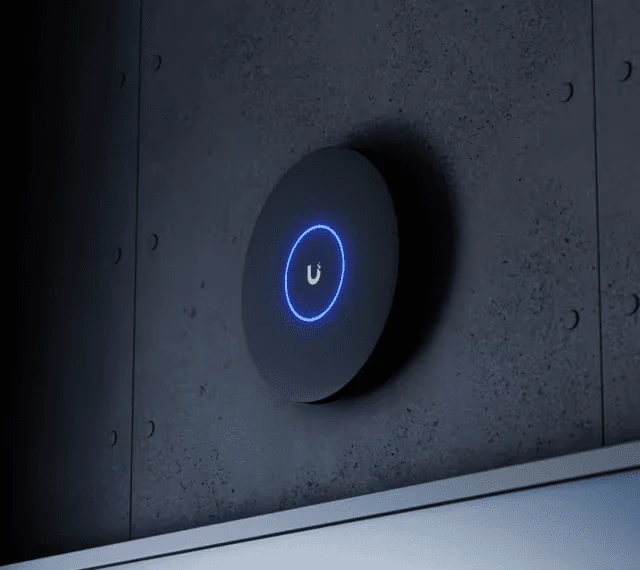

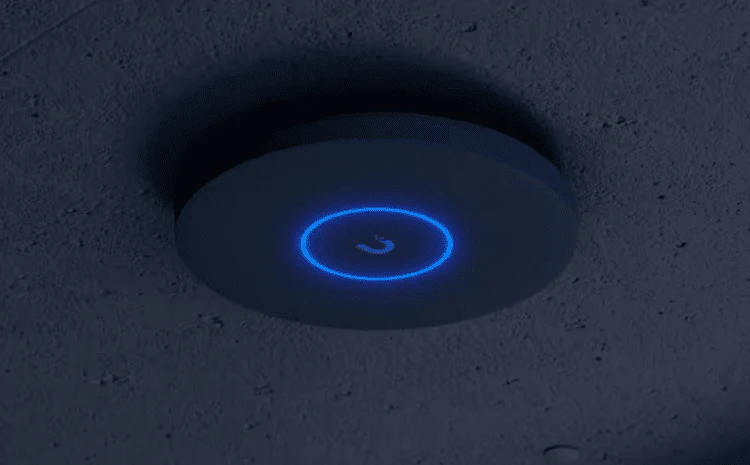

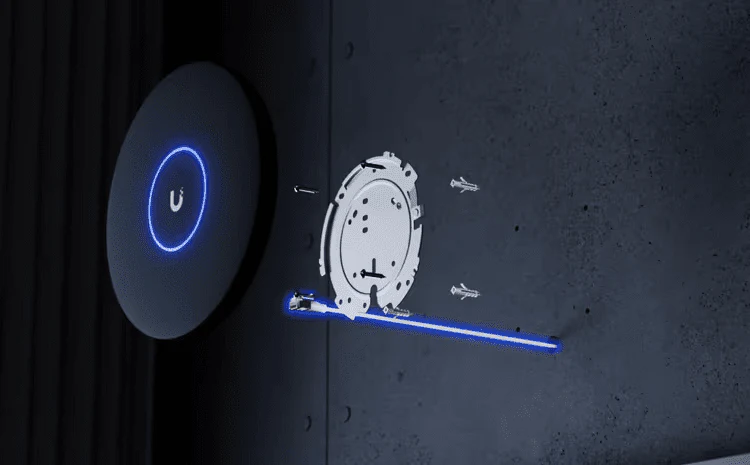

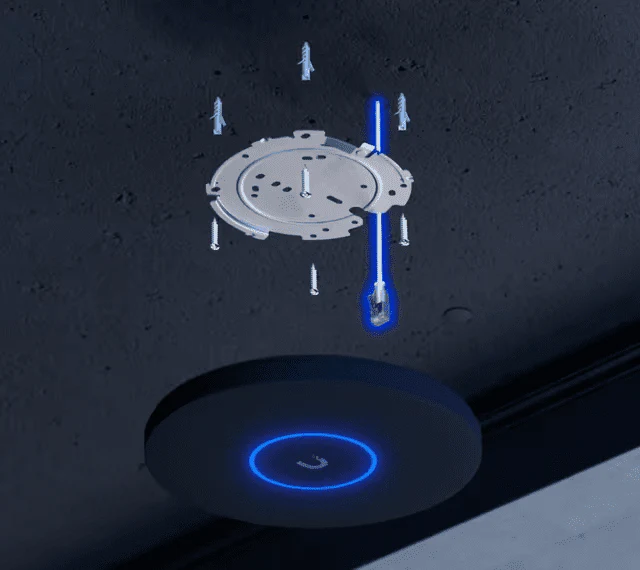

• Ceiling & Wall Mountable for optimal placement
• WiFi Scheduling to optimize energy consumption

Technical Specifications

Specification	Details
WiFi Standard	WiFi 7 (802.11be)
MIMO Configuration	2x2 (6 GHz, 2.4 GHz), 4x4 (5 GHz)
Coverage Area	160 m² (1,750 ft²)
Max Client Capacity	500+

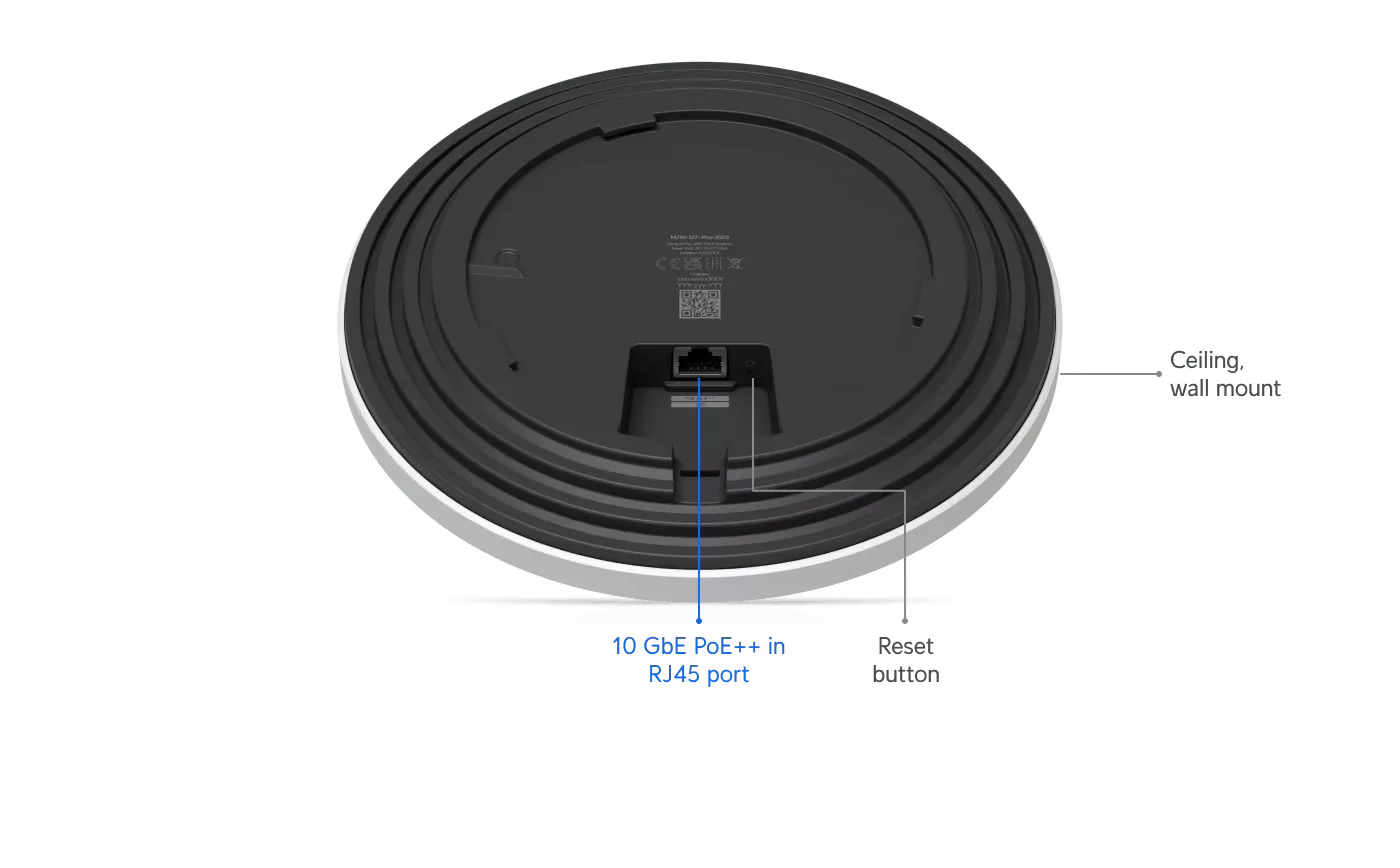

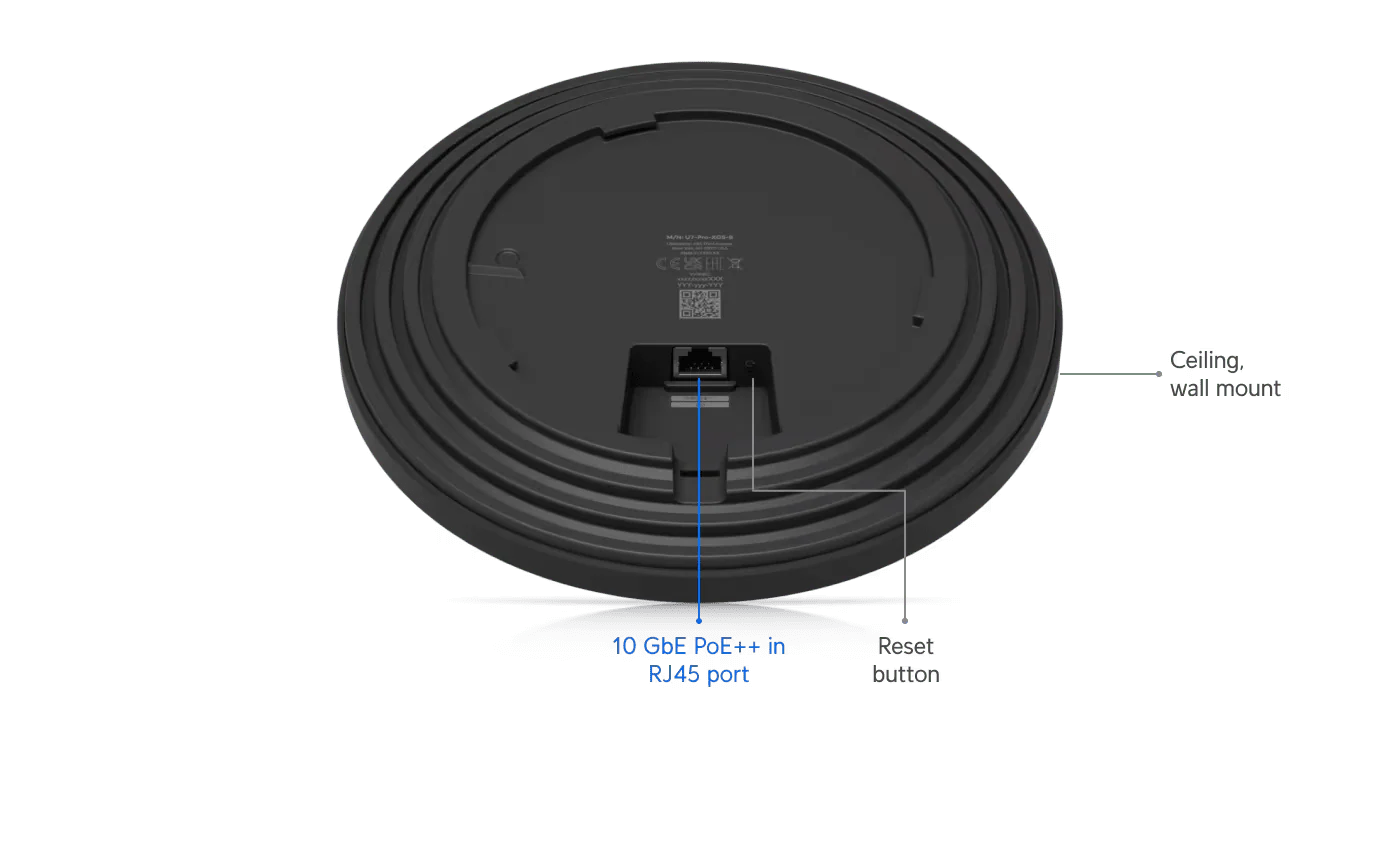

Uplink	10GbE

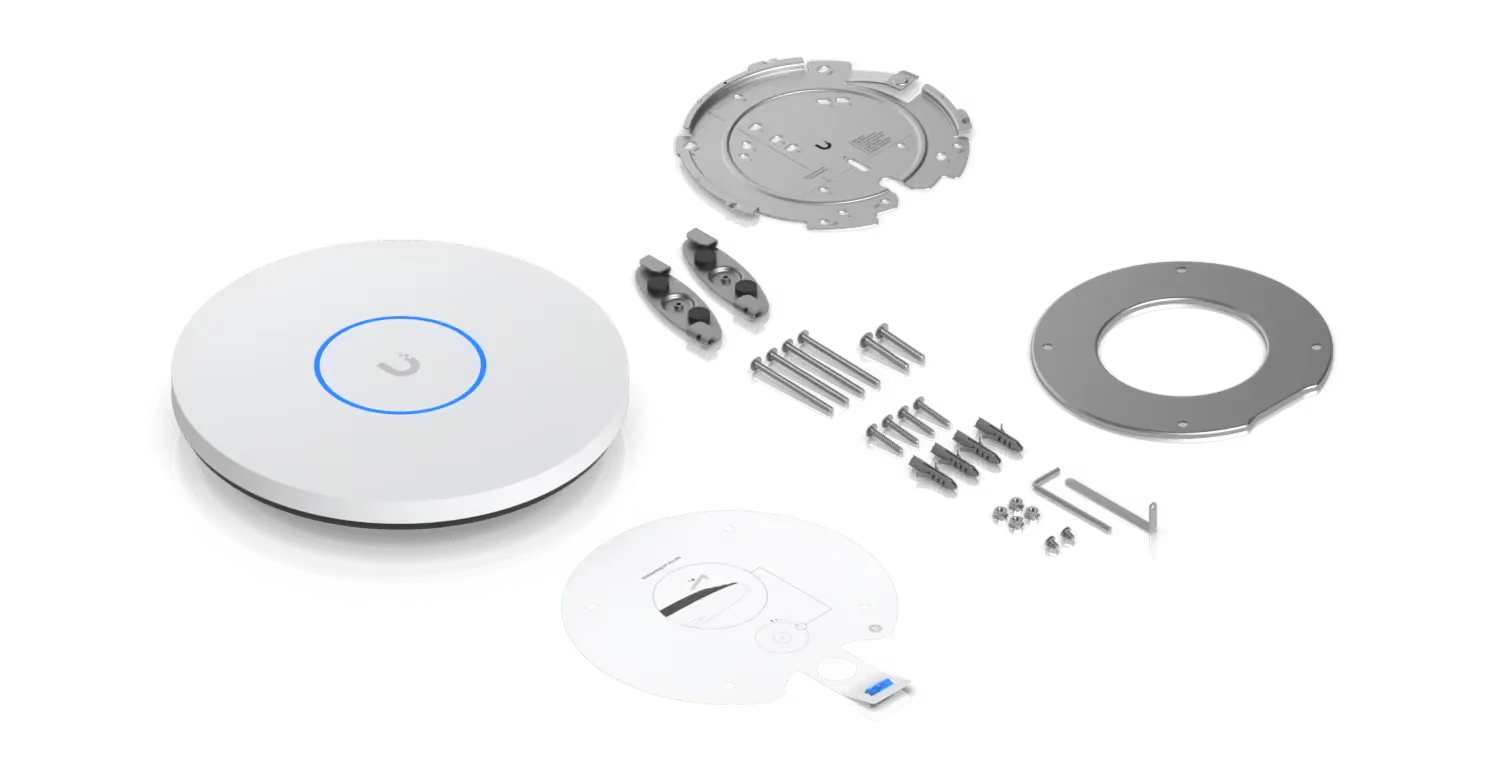

Mounting Options	Ceiling, Wall (Lite Mount included)
Power Method	PoE++
Antenna Gain	6 GHz: 6 dBi, 5 GHz: 6 dBi, 2.4 GHz: 4 dBi
Max TX Power	6 GHz: 24 dBm, 5 GHz: 29 dBm, 2.4 GHz: 23 dBm
BSSIDs	8 per radio
Security Features	PPSK, WPA3, RADIUS over TLS, VLAN Support
Guest Network	Captive Portal, Voucher Authentication, Payment-based Authentication

Summary

The Ubiquiti U7 Pro XGS BE15100 is a cutting-edge WiFi 7 access point optimized for high-speed, high-density networking. With multi-gigabit uplink, advanced MU-MIMO capabilities, dedicated spectral scanning, and enterprise-grade security, it provides seamless, interference-free connectivity for businesses, schools, and large venues.
