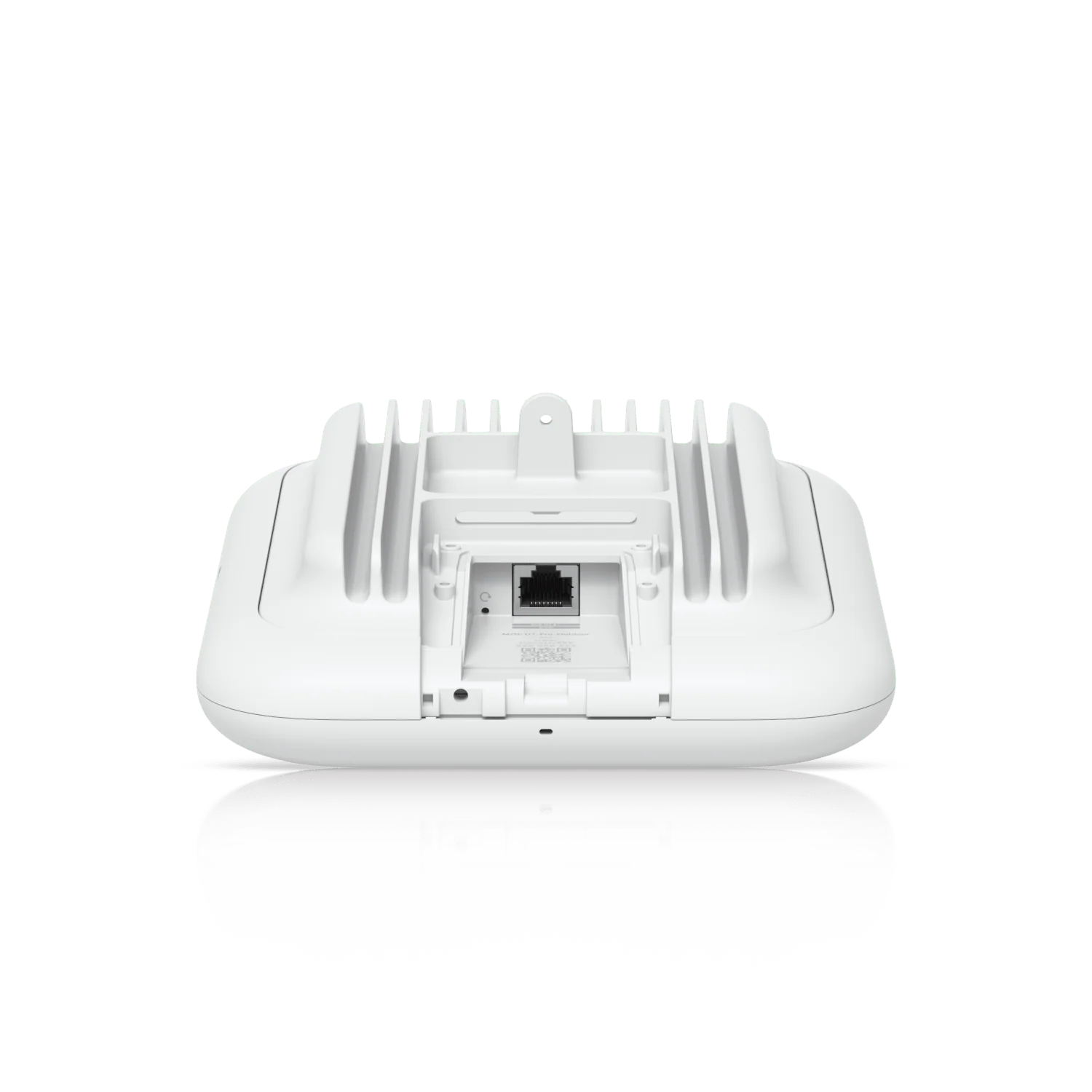

Ubiquiti U7-Pro-Outdoor BE10700 U7 Pro Outdoor Access Point

Powerful Outdoor WiFi 7 Access Point for All-Weather Performance

The Ubiquiti U7-Pro-Outdoor BE10700 is a robust WiFi 7 access point designed to deliver exceptional performance in outdoor environments. With support for 6 GHz Extended Range AFC, 6 spatial streams, and an integrated directional super antenna, it ensures reliable, long-range connectivity for up to 300+ devices. Its weatherproof design, versatile mounting options, and PoE+ power input make it ideal for large outdoor areas.

Highlights

• WiFi 7 Technology: Faster speeds, improved efficiency, and extended range with AFC 6 GHz support.
• Exceptional Coverage: Provides up to 465 m² (5,000 ft²) open space coverage with an integrated directional super antenna.
• 6 Spatial Streams: Supports simultaneous connections with high throughput for 300+ devices.
• Switchable Antennas: Software-configurable internal directional or external omni antennas included.
• All-Weather Durability: IP67-rated design for outdoor use in exposed environments.

Key Features

High-Performance WiFi 7 Connectivity

• 6 GHz Extended Range AFC: Delivers long-range performance with 6 GHz support (FCC/IC regions only).
• Maximum Data Rates:
  • 2.4 GHz: Up to 688 Mbps (BW40)
  • 5 GHz: Up to 4.3 Gbps (BW240)
  • 6 GHz: Up to 5.7 Gbps (BW320)
• MIMO Technology: 2×2 (DL/UL MU-MIMO) on all three bands.

Flexible and Versatile Design

• Antenna Options:
  • Directional Internal Antenna: High-gain directional coverage (up to 11 dBi).
  • External Omni Antennas: Omni-directional coverage for wider range (up to 8 dBi).
• Beamwidth: 90° for all bands, ensuring focused signal coverage.
• Mounting Options: Versatile wall or pole mounting with included articulation bracket.

Reliable Power and Connectivity

• Power Input: Powered via PoE+ for streamlined installation.
• 2.5 GbE Uplink: High-speed uplink for seamless integration into enterprise or outdoor networks.

Technical Specifications

Category	Details
WiFi Standards	WiFi 7 (6 GHz, 5 GHz, 2.4 GHz)
Max TX Power	23 dBm (2.4 GHz), 26 dBm (5 GHz, 6 GHz)*
MIMO Configuration	2×2 (DL/UL MU-MIMO for all bands)
Max Data Rates	2.4 GHz: 688 Mbps (BW40)
	5 GHz: 4.3 Gbps (BW240)
	6 GHz: 5.7 Gbps (BW320)
Antenna Gain	Directional Internal: 8–11 dBi
	External Omni: 6–8 dBi
Beamwidth	90°
Antenna Options	(1) Directional internal antenna
	(2) RP-SMA connectors for external antennas
Coverage	Up to 465 m² (5,000 ft²)
Power Input	PoE+
Weatherproofing	IP67

Summary

The Ubiquiti U7-Pro-Outdoor BE10700 is a cutting-edge solution for outdoor WiFi deployments, providing powerful WiFi 7 connectivity, extended-range AFC support, and flexible antenna configurations. Its durable, IP67-rated design ensures reliable performance in all weather conditions, while its ability to connect 300+ devices makes it an excellent choice for enterprise and large-scale outdoor networks.
