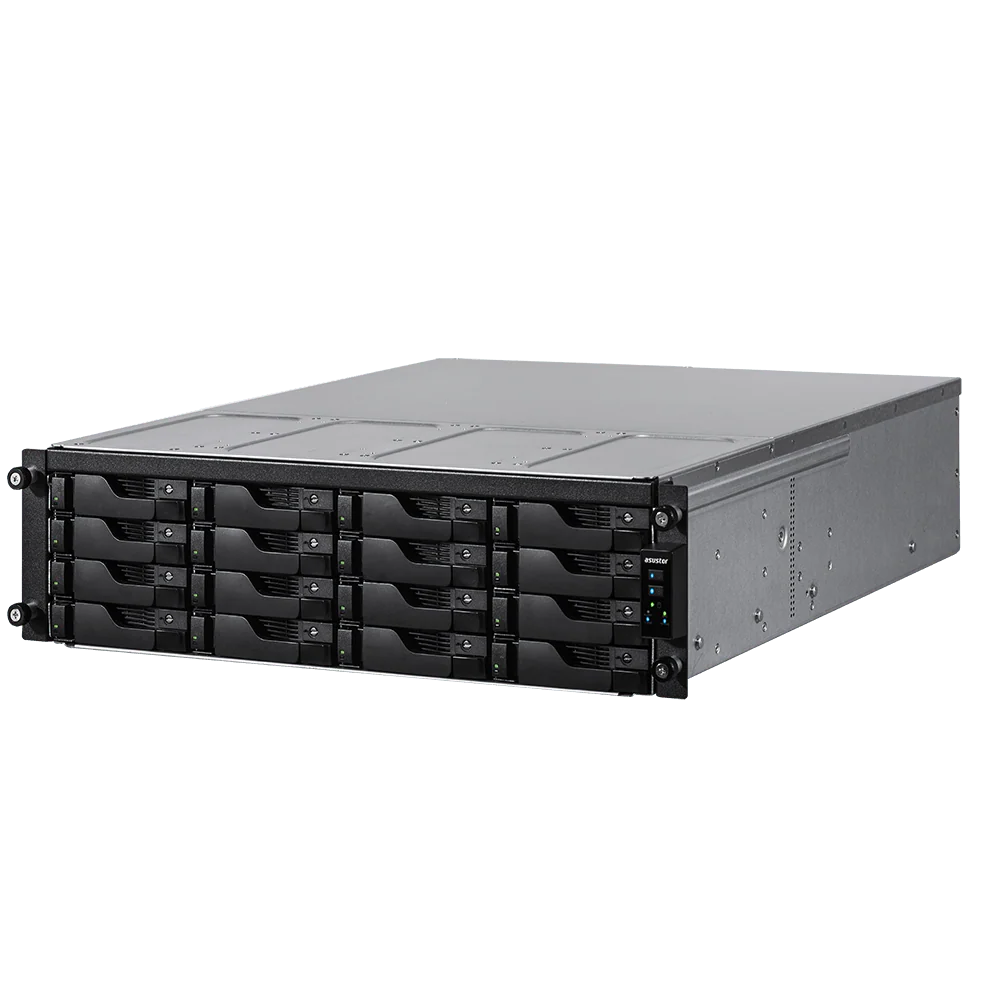

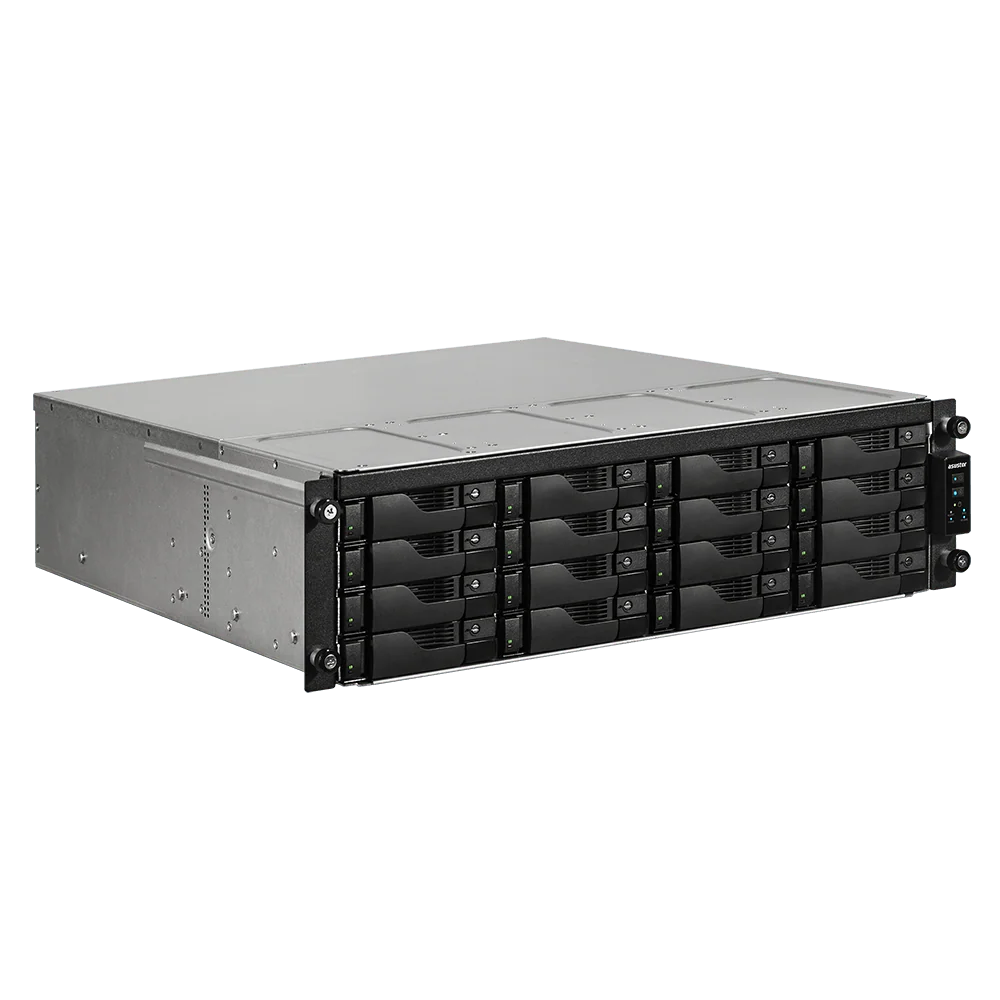

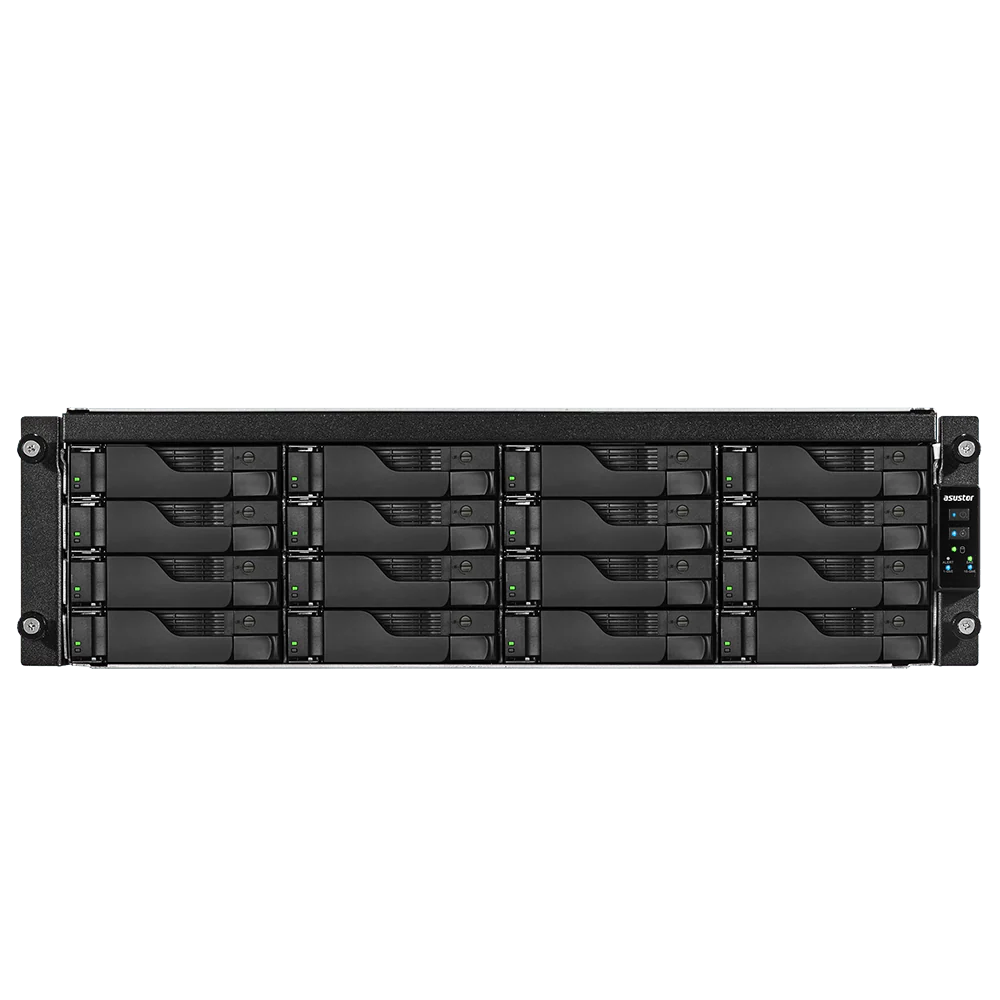

Asustor AS7116RDX LockerStor 16R Pro 16-Bay Rackmount NAS

Enterprise-Class 16-Bay NAS for Virtualization, Backup, and Scalability

The Asustor AS7116RDX LockerStor 16R Pro is a powerful 3U rackmount NAS built for high-performance enterprise workloads, virtualization, and scalable storage. Powered by a 9th Gen Intel Xeon Quad-Core CPU and ECC memory, it’s optimized for 24/7 reliability, flexible network expansion, and secure backup operations.

Highlights

• Intel Xeon 9th Gen Quad-Core CPU with ECC memory (8GB DDR4 ECC, expandable to 128GB)

• 3U rackmount with 16-bay SATA drive support and dual M.2 NVMe SSD cache slots

• Dual PCIe slots support 10/25/40/50 GbE or SAS card expansion

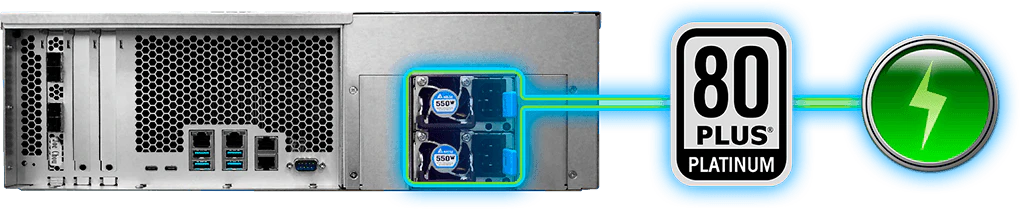

• Redundant 80 PLUS Platinum power supplies for energy-efficient reliability

• Supports VMware, Citrix, Hyper-V, Docker, and VirtualBox environments

Key Features

Performance & Scalability

• CPU: Intel Xeon 9th Gen Quad-Core processor

• Memory: 8GB DDR4-2666 ECC (up to 128GB)

• Storage:
   • 16 x SATA bays (3.5"/2.5" compatible)
   • 2 x M.2 NVMe SSD slots for cache

• Expansion:
   • 2 x PCIe x4
   • 1 x PCIe x8
   • SAS expansion card support

Virtualization & Application Hosting

• Full support for VMware, Citrix, Hyper-V

• Supports Docker and Linux-based container deployments

• VirtualBox and Linux Center for multi-OS testing and virtual app hosting

• Portainer UI for advanced Docker app management

Backup & Data Protection

• Integrated 360° backup solution including MyArchive cold storage

• Cloud Backup Center: Amazon S3, Backblaze B2, Microsoft Azure, Dropbox, Google Drive, and more

• Snapshot Center with Btrfs support for versioned, fast restore backups

• Secure AES-256 folder encryption, firewall, ADM Defender, antivirus, and VPN support

Energy Efficiency & Reliability

• Redundant 80 PLUS Platinum PSUs: 94% efficiency at 50% load

• Power consumption:
   • 51.5W in drive hibernation
   • 121.7W in normal operation

• Designed for 24/7 use with extensive durability testing

• Hardware-level failover for power supplies and network ports

Surveillance & Security

• Up to 100 IP camera channels (4 free)

• 5-step setup wizard with Surveillance Center and AiSecure app

• Live stream from iOS/Android anywhere

Productivity & Collaboration

• Compatible with Adobe Creative Cloud

• EZ Sync for folder sync and version control

• OnlyOffice & Nextcloud support for private office collaboration

• ASUSTOR App Central with 200+ apps for business, development, and media

Management & Usability

• ADM OS with redesigned UI, off-peak control, Find Me light & buzzer for rack rooms

• Central dashboard for all backup, sync, surveillance, and container operations

• Compatible with Windows ACL, AD, and enhanced access control

Summary

The Asustor AS7116RDX LockerStor 16R Pro delivers uncompromising performance for growing businesses and creative professionals. With a robust Xeon CPU, ECC memory, redundant power, and hybrid SSD caching, it’s ready for virtualization, backup, collaboration, and multi-layered protection. Whether you're running critical infrastructure or building a private cloud, this 16-bay rackmount NAS is engineered to exceed expectations.
